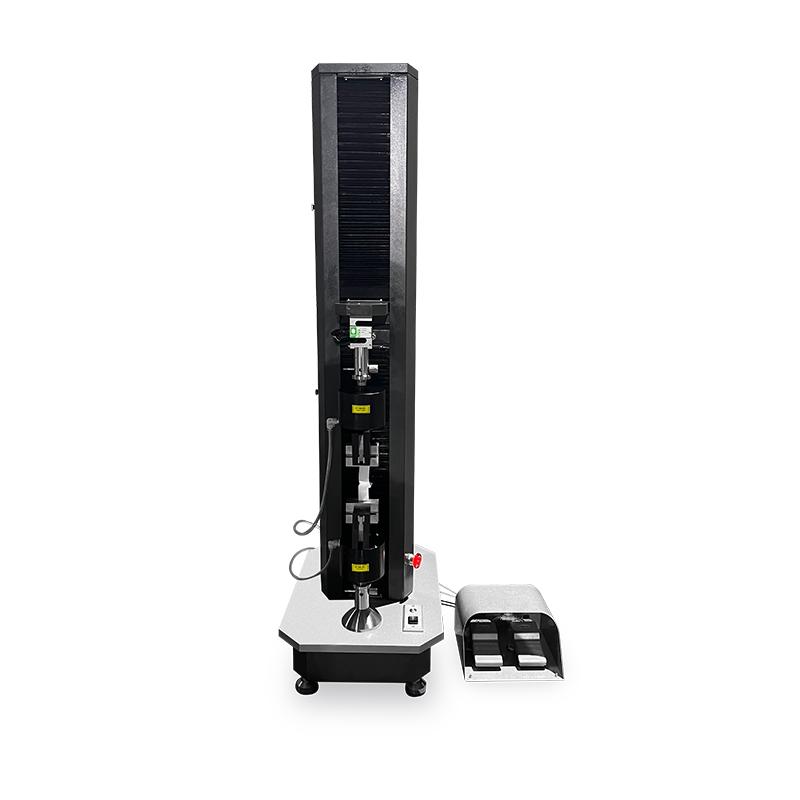

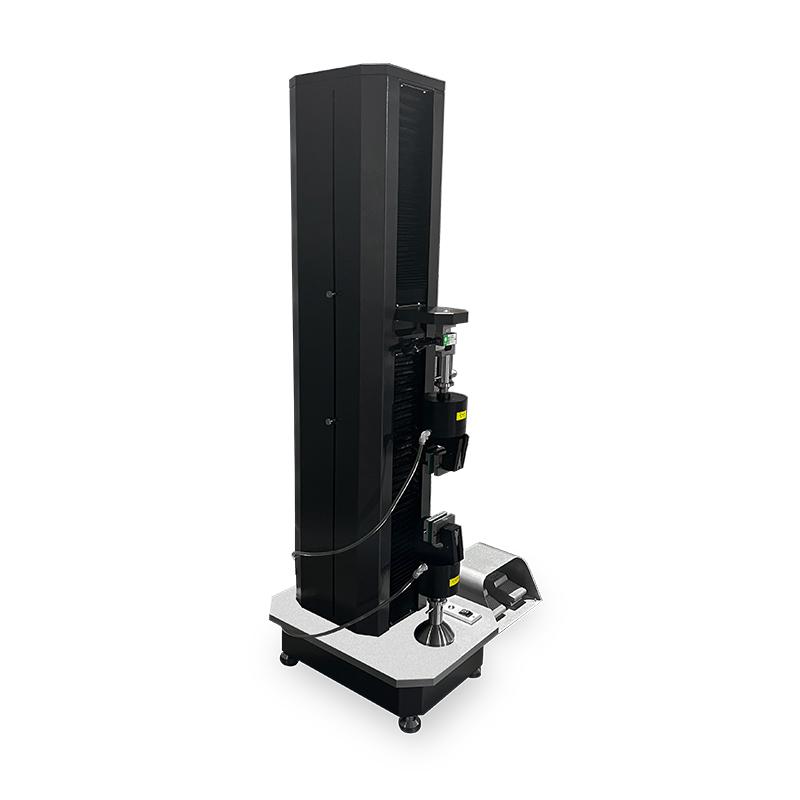

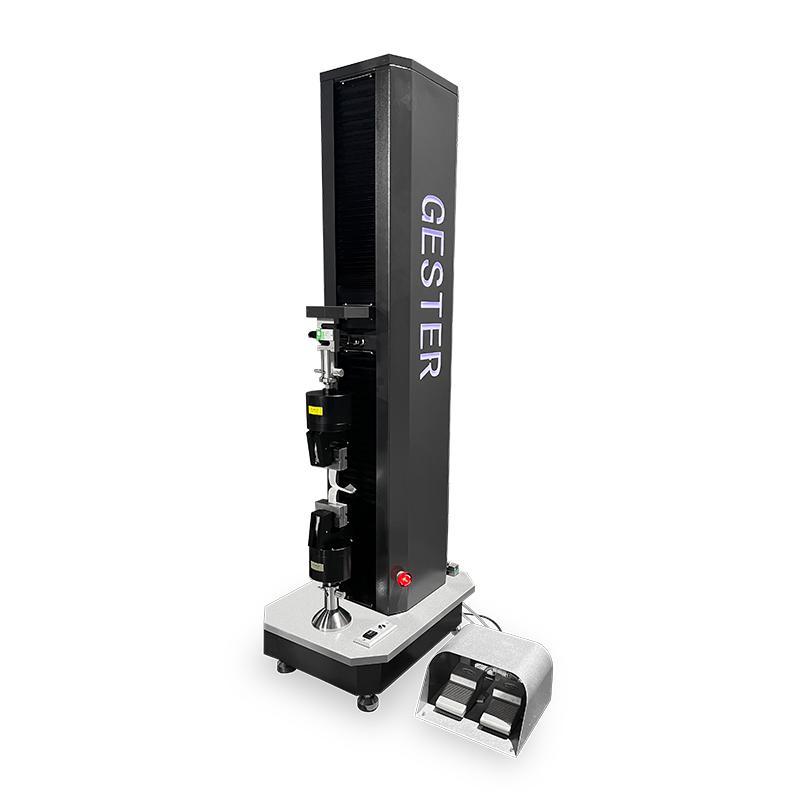

Universal Tensile Strength Tester (Single Column) GT-C02-1

The GT-C02-1 Universal Tensile Strength Tester (Single Column) is a high-precision, cost-effective solution specifically designed for the textile, footwear, and leather industries. This versatile equipment is engineered to determine the tensile, peeling, tearing, and seam slippage properties of various materials. It fully complies with international standards such as ISO 13934, ASTM D5034, ect.

Brand:
GESTER
Item NO.:
GT-C02-1
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
20-30 Days

Inquire now

Product Detail

Universal Tensile Strength Tester (Single Column) GT-C02-1

Product Introduction

Application:

This Universal Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, yarn, fabric, paper, aviation, package, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

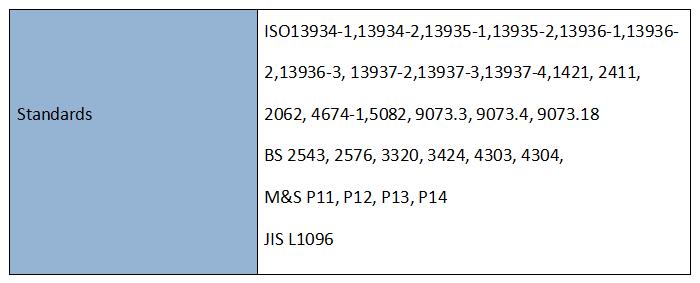

Standards:

ISO13934-1,13934-2,13935-1,13935-2,13936-1,13936-2,13936-3, 13937-2,13937-3,13937-4,1421, 2411, 2062, 4674-1,5082, 9073.3, 9073.4, 9073.18
BS 2543, 2576, 3320, 3424, 4303,
M&S P11, P12, P13, P14
JIS L1096

ASTM D434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735.

Features

This tensile strength testing equipment adopt AC servo drive system, reducer, synchronous pulley, TBI precision ball screw components, instruments beam moving smoothly with low noise and high precision extension.
This machine adopt aluminum column shell, deal with high temperature & solidify injection on the machine surface will never fade.
This Tensile Strength Tester adopt many kinds of protection measures:

      a.Beam’s limit cams protecting device
      b.Clamp touch avoid protecting device
      c.Set up protection on displacement & load software
      d.Sensor overload protection
      e.Sample load software protection
      f.Overcurrent & overvoltage protection

Real time supervision to main parts, more safe & reliable while using machine.
This universal tensile testing machine adopt open system: user can edit test program, data analysis formula, test report according to test material’s category, character and test methods requires.

Key Specifications

Model	GT-C02-1A		GT-C02-1B
Display	Computer Display
Max. Capacity	2.5KN	5KN
Force Resolution	1/100000
Force Accuracy	≤+/-0.2%F.S
Stroke	1000mm
Test Speed	0.01-1000mm/min
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic return function
Machine Drive	Servo motor drive, Synchronous wheel and precision ball screw drive
Power	200W
Power Supply	AC 220V 50/60HZ
Dimensions ( W x D x H )	550×400×1490mm
Weight	120kgs

Accessories

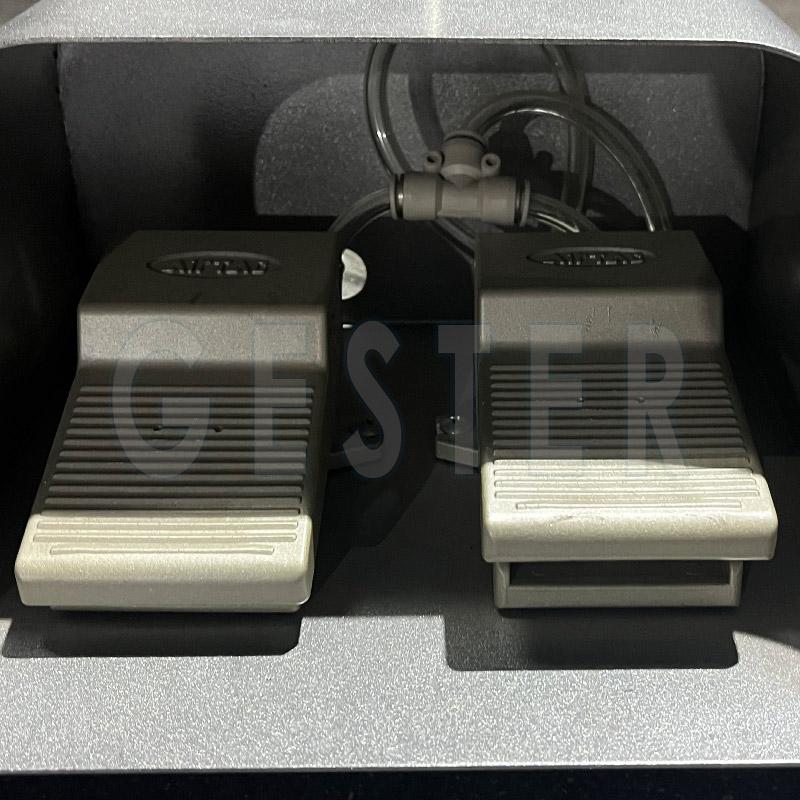

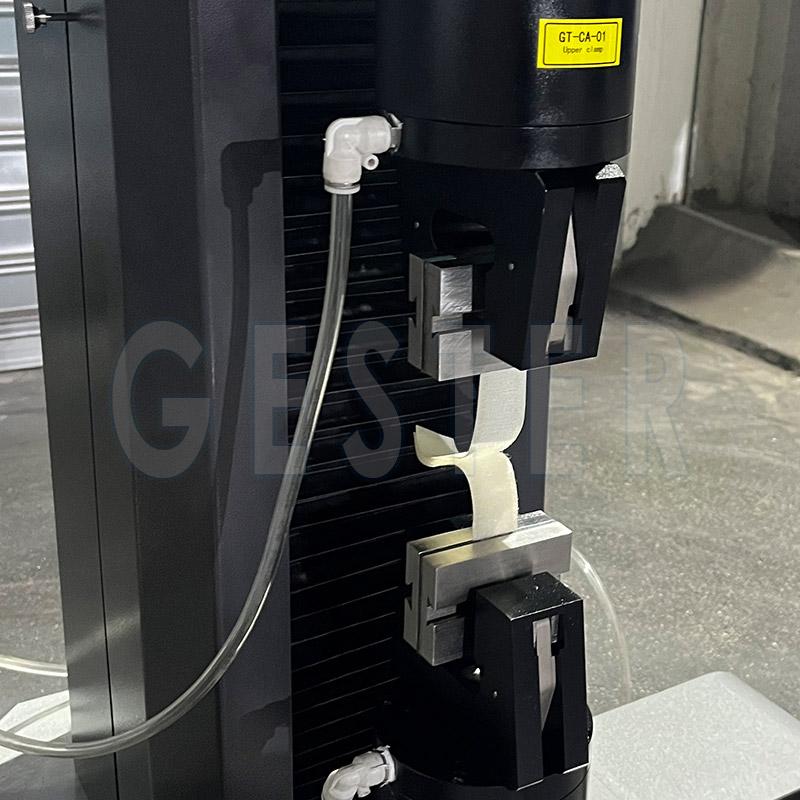

Standards accessories	1set	Pneumatic Grips
	1pc	English Operation Software
	1pc	Cable Connect with PC
	1pc	Load cell
Optional accessories	Optional	Other Grips and Load Cell
Optional accessories	1set	Desk Top Computer

Application Industry

All kinds of materials can be tested by the Universal Tensile Strength Tester Single Column

Universal Tensile Strength Tester (Single Column)

Related Products

1. For Higher Capacity & Larger Samples (Dual Column)

GT-C01-1 Universal Tensile Strength Tester (Dual Column)

Focus: Designed for high-strength textiles and industrial fabrics. Offers a larger testing space and double the stability for heavy-duty pulling tests.

GT-UA01 Dual Column Computerized UTM

Focus: A high-end computerized version for comprehensive material analysis, providing advanced curve data for R&D centers.

2. Professional Footwear & Leather Testing

GT-K01 Universal Testing Machine

Focus: Specifically optimized for the footwear industry. Ideal for whole-shoe peeling, sole attachment, and leather tearing tests (Complies with ISO 20344).

3. Economical & Specialized Testing

GT-UA03 Single Column Tensile Tester

Focus: A compact and cost-effective tester, perfect for rapid quality control on production lines.

Optimize your lab with our professional tensile testing solutions. Click here to request a free technical consultation! Email : marketing@gester-instruments.com
