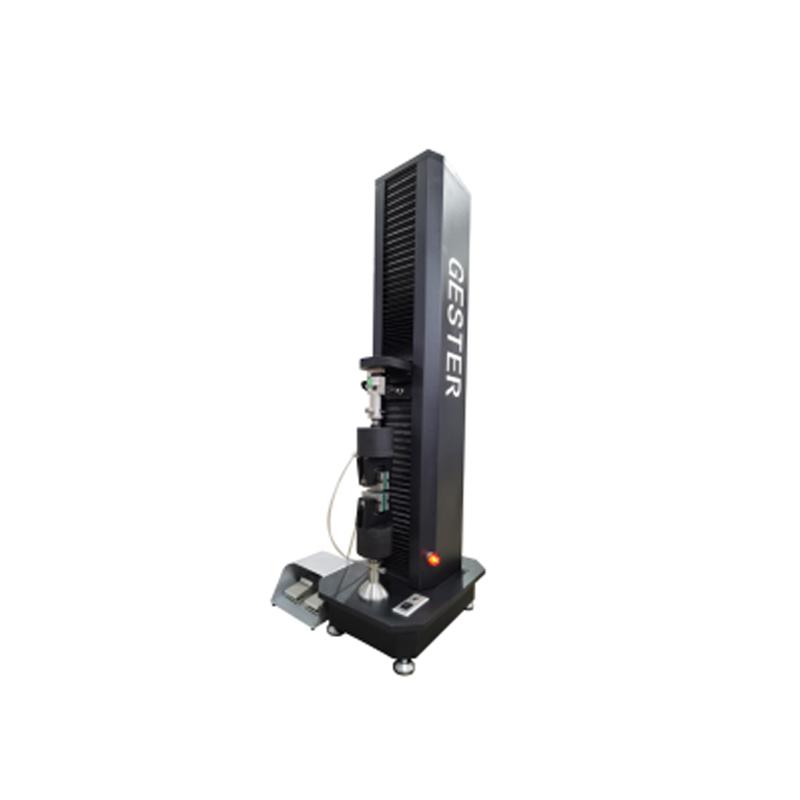

Single Column Tensile Strength Tester GT-C02-1

The GT-C02-1 Single Column Tensile Strength Tester is a multi-functional testing platform ideal for small-force applications (up to 5kN). Whether you are testing textiles, leather, rubber, or plastic, this compact desktop unit delivers Grade 0.5 precision. Its interchangeable grip system allows for seamless switching between tensile, peeling, and tearing tests. Powered by advanced software for real-time data analysis, it is the perfect choice for production line quality control and R&D labs requiring high efficiency in a small footprint.

Brand:
GESTER
Item NO.:
GT-C02-1
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
China Port
Lead Time：
30 days

Inquire now

Product Detail

Single Column Tensile Strength Tester GT-C02-1

Product Introduction

Application:

This Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, yarn, fabric, paper, aviation, package, construction, petrifaction, electrician, vehicle and other materials.

It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

Standards:

ISO13934-1,13934-2,13935-1,13935-2,13936-1,13936-2,13936-3, 13937-2,13937-3,13937-4,1421, 2411, 2062, 4674-1,5082, 9073.3, 9073.4, 9073.18
BS 2543, 2576, 3320, 3424, 4303,
M&S P11, P12, P13, P14
JIS L1096
ASTM D 434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735.

Feature

This universal tensile testing machine adopt AC servo drive system, reducer, synchronous pulley, TBI precision ball screw components, instruments beam moving smoothly with low noise and high precision extension.
This machine adopt aluminum column shell, deal with high temperature & solidify injection on the machine surface will never fade.
This tensile strength machine adopt many kinds of protection measures:

          a.Beam’s limit cams protecting device
          b.Clamp touch avoid protecting device
          c.Set up protection on displacement & load software
          d.Sensor overload protection
          e.Sample load software protection
          f.Overcurrent & overvoltage protection

Real time supervision to main parts, more safe & reliable while using machine.
This tensile tester adopt open system: user can edit test program, data analysis formula, test report according to test.

Single Column Tensile Strength Tester Key Specifications

Model	GT-C02-1A		GT-C02-1B
Display	Computer Display
Max. Capacity	2.5KN	5KN
Force Resolution	1/100000
Force Accuracy	≤+/-0.2%F.S
Stroke	1000mm
Test Speed	0.01-1000mm/min
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic return function
Machine Drive	Servo motor drive, Synchronous wheel and precision ball screw drive
Power	200W
Power Supply	AC 220V 50/60HZ
Dimensions ( W x D x H )	550×400×1490mm
Weight	120kgs

Accessories

Standards accessories	1set	Pneumatic Grips
	1pc	English Operation Software
	1pc	Cable Connect with PC
	1pc	Load cell
Optional accessories	Optional	Other Grips and Load Cell
Optional accessories	1set	Desk Top Computer

Application Industry

All kinds of materials can be tested on the Single Column Tensile Strength Tester

FAQ

Q1: What is the maximum load capacity of the GT-C02-1?

A: The standard capacity is up to 5kN (500kg), which covers most textile, garment, and footwear testing requirements.

Q2: Does this machine support ASTM D5034 (Grab Test)?

A: Yes, the GT-C02-1 fully supports ASTM D5034, ISO 13934, and many other global standards with the appropriate fixtures.

Q3: Can I export the test data to a PC?

A: Absolutely. Our professional software allows real-time curve display, data analysis, and export to Excel reports.

Q4: How do I choose between a single-column and a dual-column tester?

A: Single-column (GT-C02-1) is best for lightweight materials and smaller forces (up to 5kN), while dual-column tensile strength tester (GT-C01-1) is recommended for larger samples or higher force requirements, Max. Capacity: 5KN, 10KN.

Unsure which fixture or standard suits your material? Our engineers provide one-stop tensile testing solutions tailored to your specific industry needs. Get Testing Solution Now: Email : marketing@gester-instruments.com
