Brand:
GESTERItem NO.:
GT-C04-2Order(MOQ):
1Payment:
T/T, L/CShipping Port:
China PortLead Time：
10-30 DaysProduct Detail

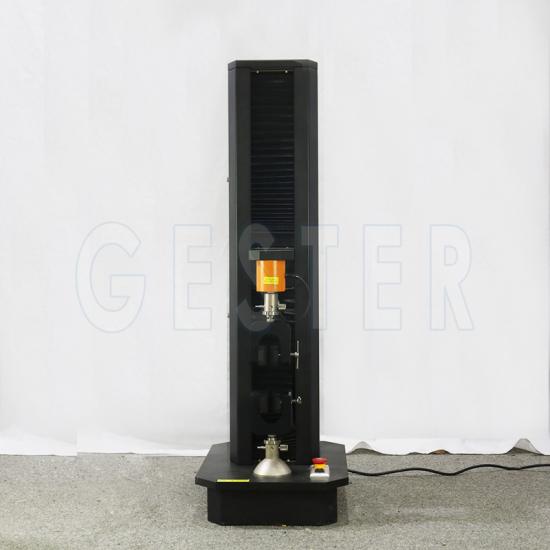

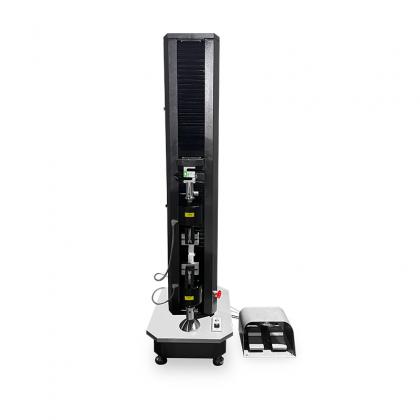

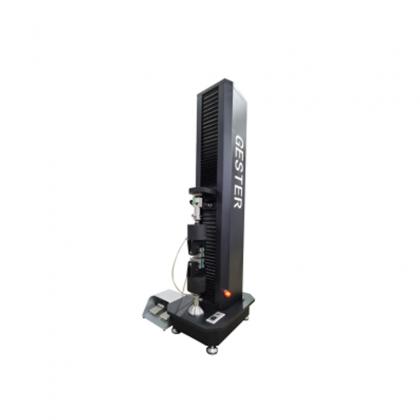

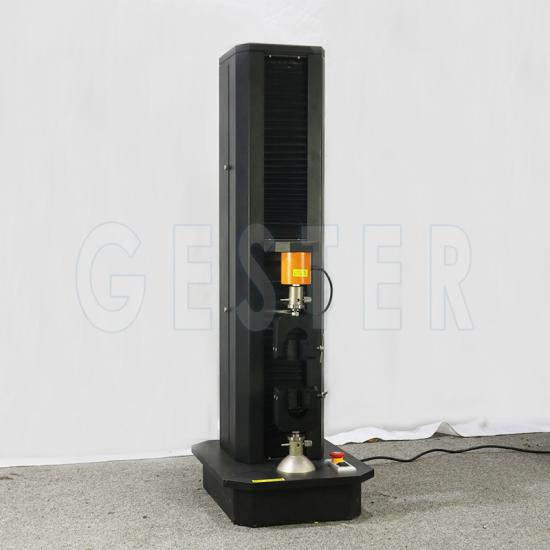

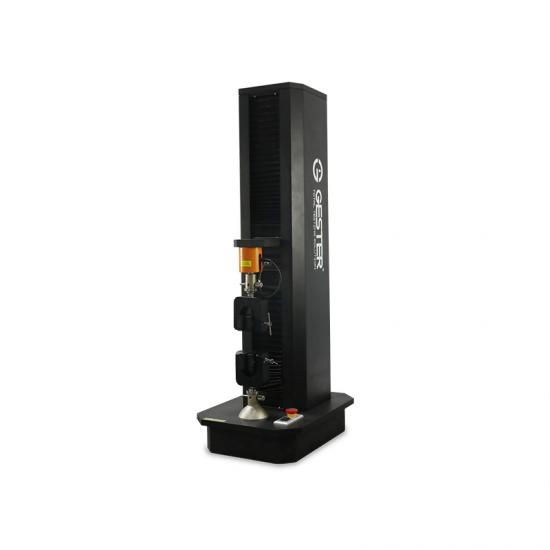

Electronic Elastic Strength Tester GT-C04-2
|
Application:
This test machine designed for peeling test of adhesive lining, multilayer laminated fabrics, hot melt adhesive lining, adhesive between lining and shell fabric, coating adhesion.
FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011 |
1. LCD, membrane panel, English human-computer interface.
2. Site cabinet structure, elegant shape, stable working.
3. Stepping servodrive, gearbox equipment with synchronous belt for decelerating, precision&stable test.
4. Peel adhesion testing machine equip with online connector, special designed test software can be test result of analysis.

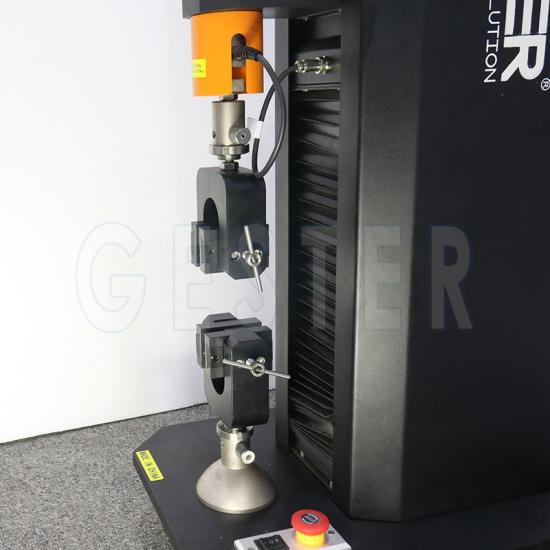

5. Auto locate distance of clamp.
|
Model |
5 |
10 |
50 |
|
Range |
50N |
100N |
500N |
|
Test Accuracy |
≤0.2%F·S |
||
|
Stretch Speed |
0.01～1000mm/min |
||
|
Max. Elongation |
800mm |
||
|
Clamp Width |
60mm |
||
|
Stroke Resolution |
0.01mm |
||
|
Power Supply |
AC220V 50/60HZ 200W |
||
|
Dimensions ( W x D x H ) |
47x38x186 cm |
||
|
Weight |
85kgs |
||

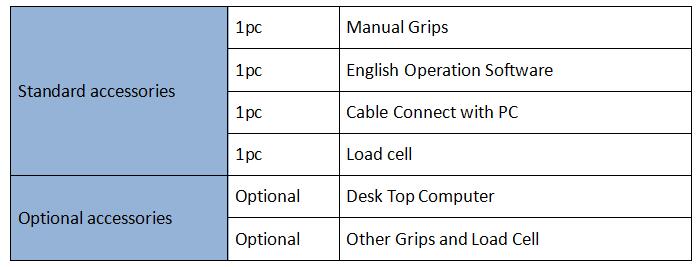

Accessories
