Bed And Mattress Comprehensive Performance Tester is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.
Brand:
GESTERItem NO.:
GT-LA09Order(MOQ):
1Shipping Port:
Xiamen PortLead Time：
20-30 daysProduct Detail

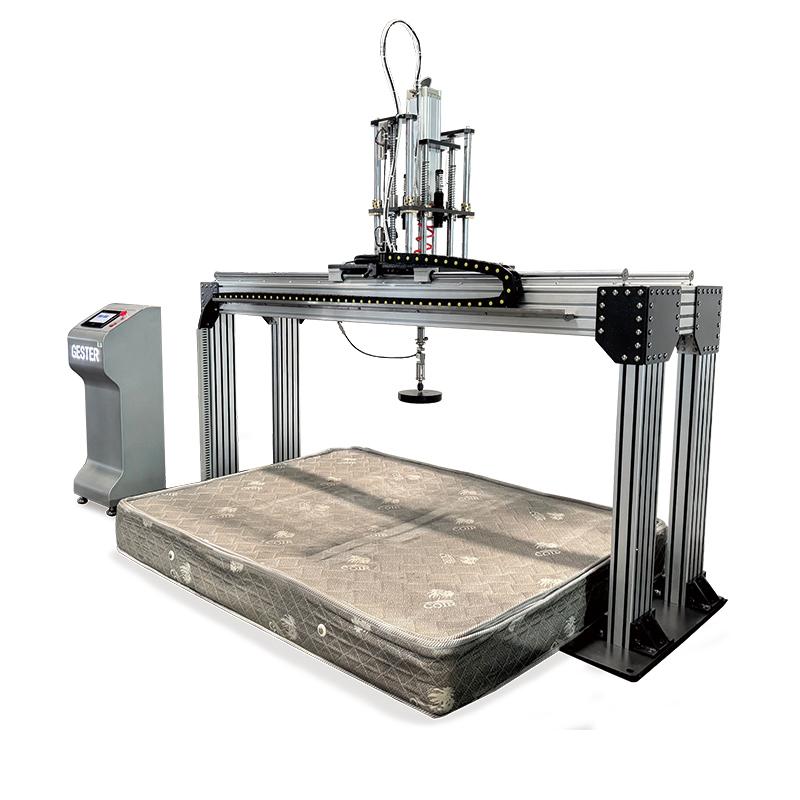

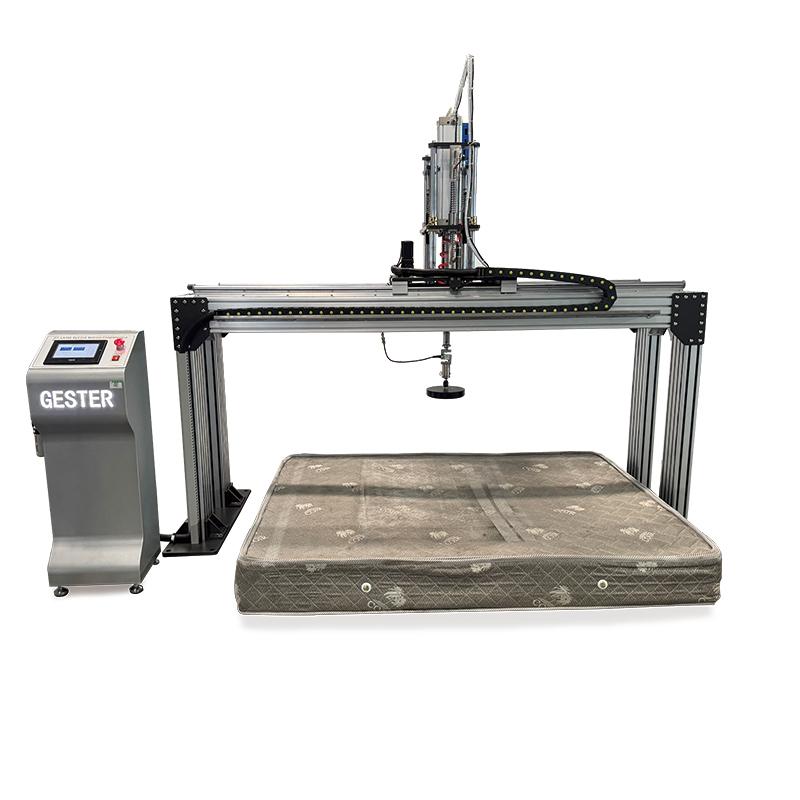

Bed And Mattress Comprehensive Performance Tester GT-LA09
Application:
This machine is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.
In general, the machine is configured with the following test functions:
Vertical impact test: allow impactor to fall freely from a height of 180mm onto the test unit.

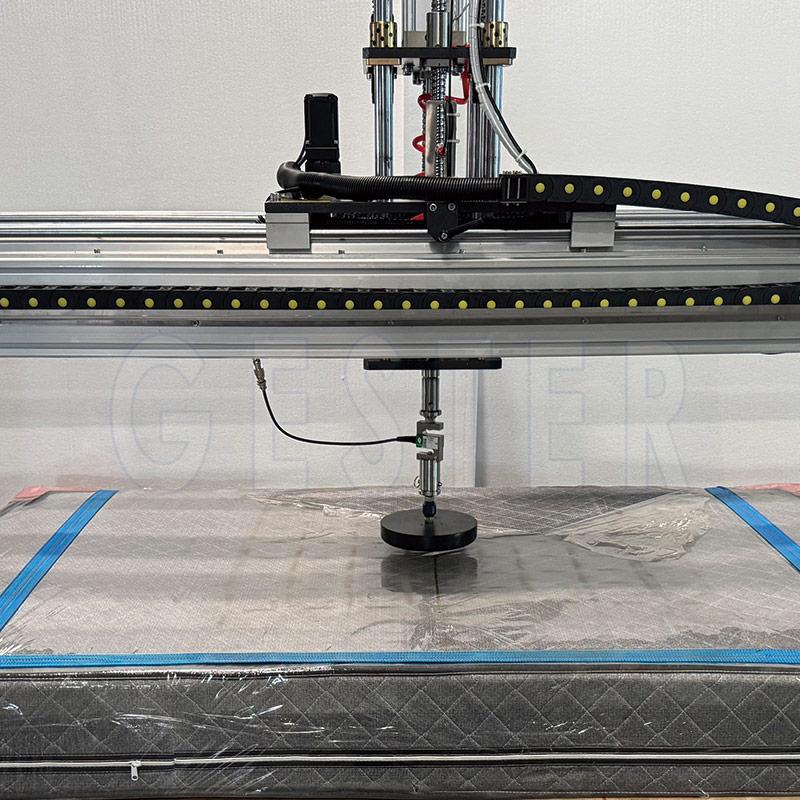

Durability test: test simulating the repeated application of loads .The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.
Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .
Vertical static load test: apply a vertical forces of 1400N for 10s downwards using the loading pad on the bed base.
Bed edge vertical static load test: using two loading pads apply two forces of 1200N for 1min on the centre line of the bed frame side member.（LA09B configures this feature）
Feature:
Standards
EN 1725 section 7.3, 7.4, 7.5, 7.6, （Method 7.7 uses LA09B）
|
Model |
GT-LA09A |
GT-LA09B |
|||
|
Controller |

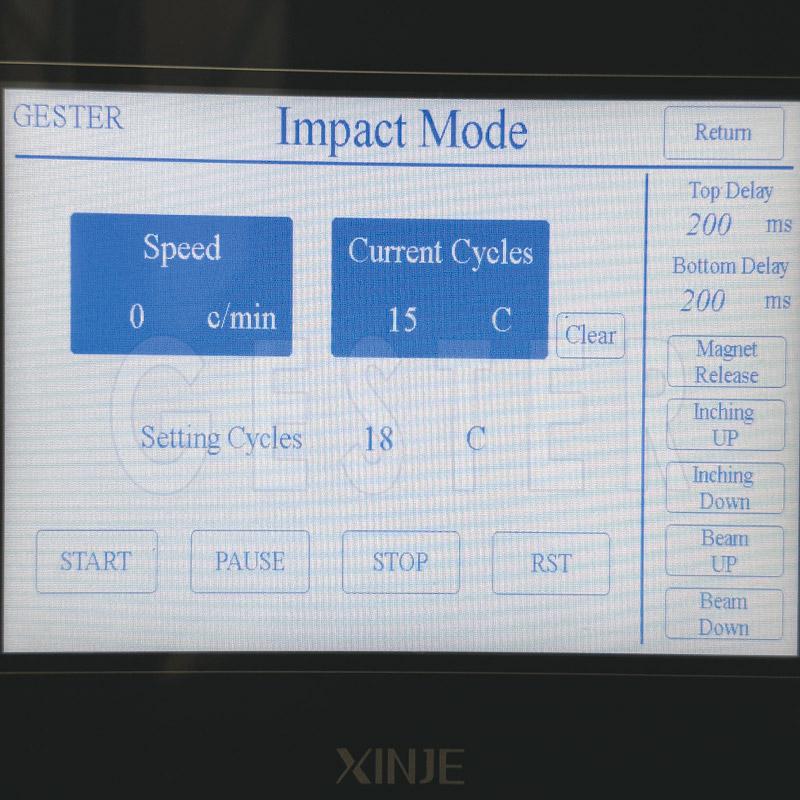

PLC Touching Screen Control |
||||
|

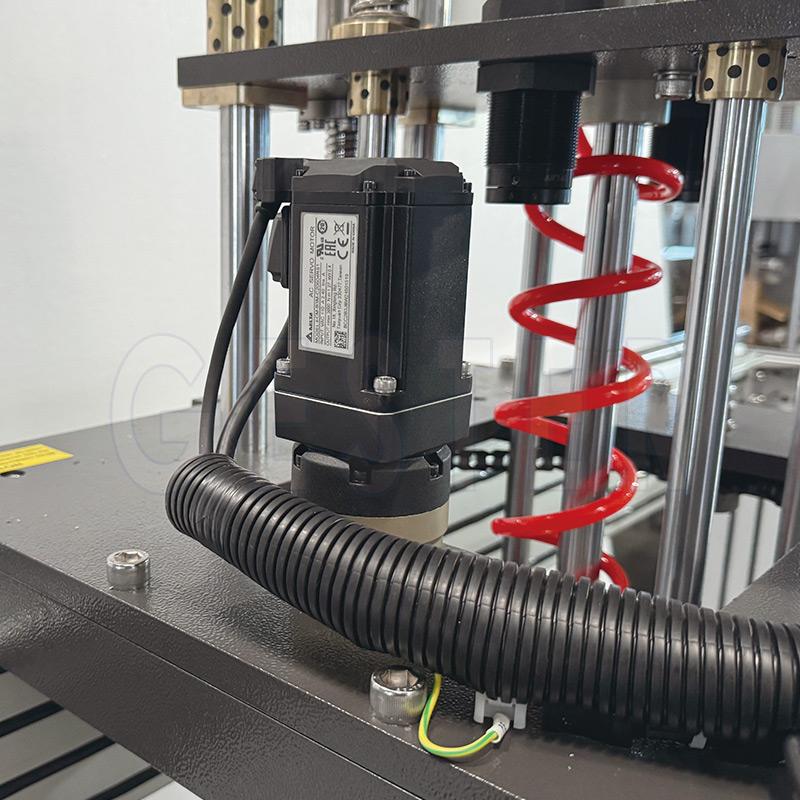

Motor |
Panasonic |
||||
|
Number of loading cylinders |
Single |
Double |
|||
|
Load sensors |
5000N, American Celtron |
||||
|
Durability test |
Test load |
1000N |
|||
|
Loading pad diameter |
￠200mm |
||||
|
spherical radius |
R300mm |
||||
|
Edge radius |
R12mm |
||||
|
Test cycle |
1000cycles/per point |
||||
|
Load maintain time |
3±1s |
||||
|
Vertical impact test |
Impactor surface diameter |
￠200mm |
|||
|
Impactor surface spherical radius |
R300mm |
||||
|
Impactor surface edge radius |
R12mm |
||||
|
Impactor total mass |
25±0.1kg |
||||
|
Impactor spring rate |
6.9±1N/mm |
||||
|
Impact height |
180mm |
||||
|
Bed edge durability test |
Test load |
1000N |
|||
|
Test cycles |
5000 cycles |
||||
|
Maintain time |
3±1s |
||||
|
Vertical static load test |
Test load |
1400N |
|||
|
Loading pad diameter |
￠200mm |
||||
|
spherical radius |
R300mm |
||||
|
Edge radius |
R12mm |
||||
|
Test cycle |
10cycles/per point |
||||
|
Load maintain time |
10±1s |
||||
|
Bed edge Vertical static load test (LA09B configures this feature) |
Small Loading pad diameter |
￠100mm |
|||
|
Edge radius |
R12mm |
||||
|
Test load |
1200N |
||||
|
Load maintain time |
1min |
||||
|
Power supply |
1∮, AC 220V 50/60Hz |
||||
|
Dimension (LxWxH) |
2.6*2.4*1.8m |
||||
|
Weight (Kg) |
≈900Kg |
||||
|
Standard Accessories |
|||||
|
Loading pad |
1set |
||||
|
Impactor |
1set |
||||
|
Edge loading pad |
1set |
||||
|
Small loading pad（LA09B equips with） |
2set |
||||
