Mattress Spring Fatigue Tester GT-LA03

Mattress Spring Fatigue Tester is applied to test the endurance capacity under the long-term repetitive load and the compression deformation for the mattress. Accord with the standard ASTM F 1566.

  • Brand:

    GESTER
  • Item NO.:

    GT-LA03
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20~30 days
  • Product Detail

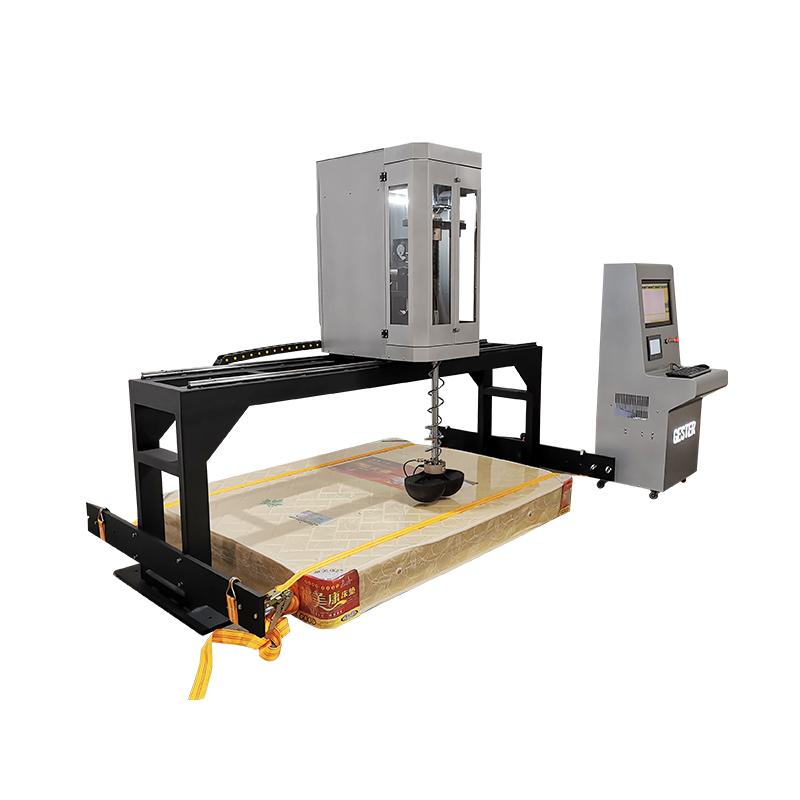

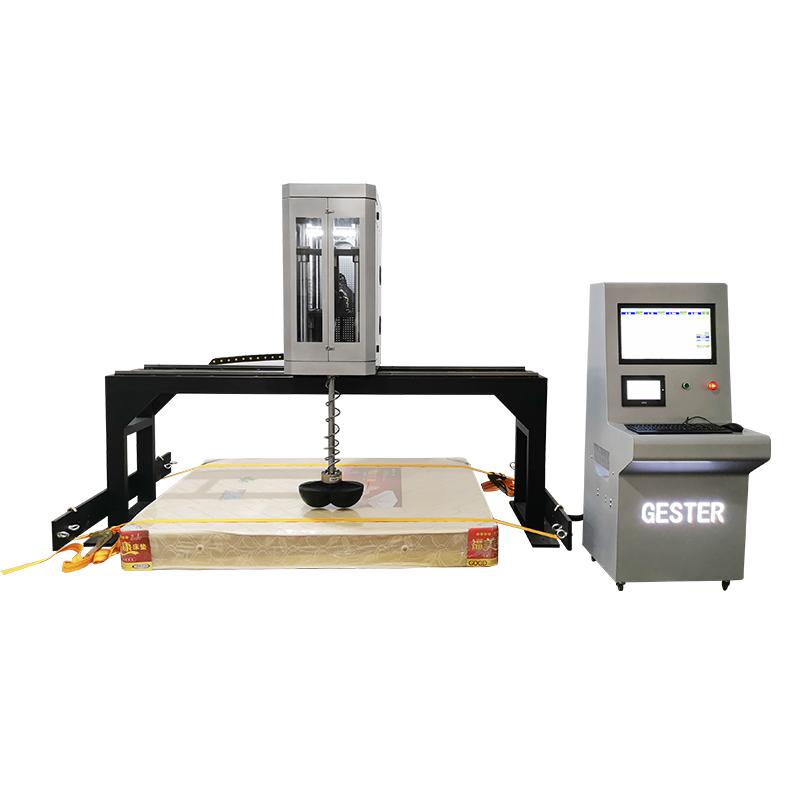

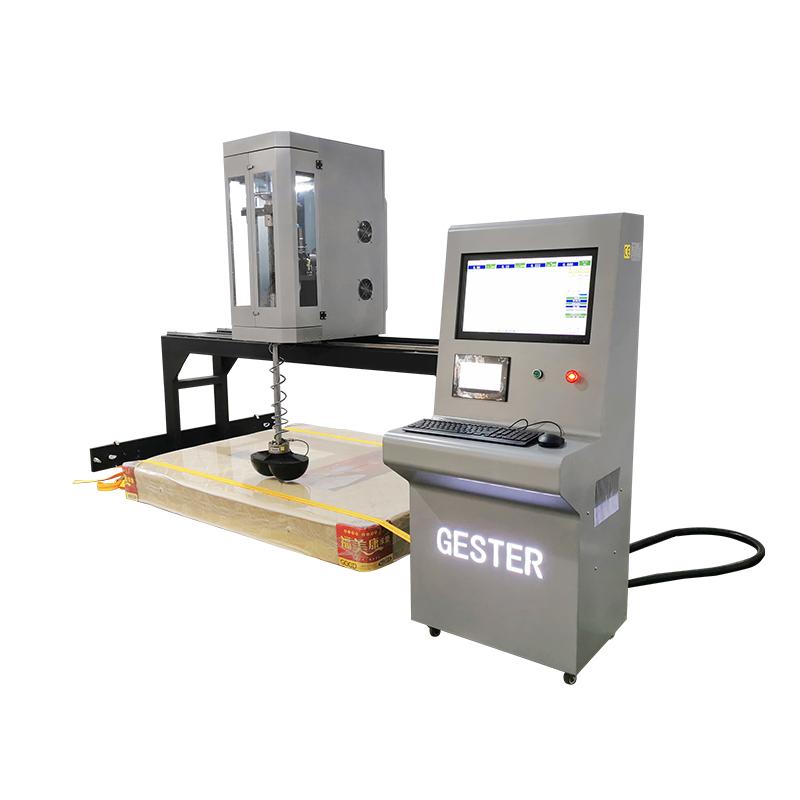

Cornell Tester/ Mattress Spring Fatigue Tester GT-LA03


Product Introduction

Application:

It’s applied to test the endurance capacity under the long-term repetitive load and the compression deformation for the mattress.Accord with the standard ASTM F 1566.

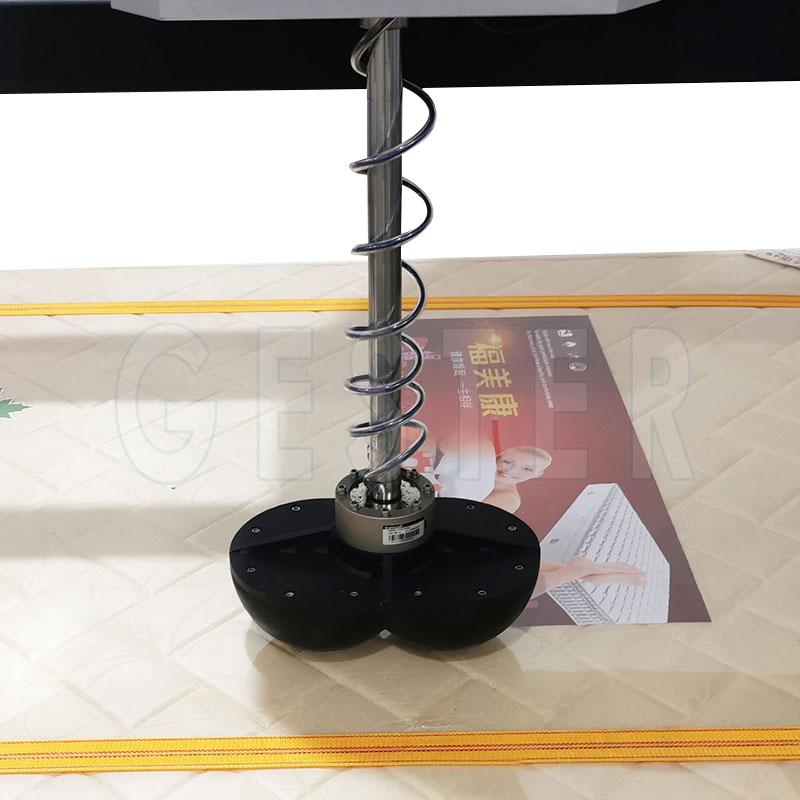

With sofa Cornell fatigue life test method, motor drive eccentric wheel, adjust the impacting height of the impact block, then impact the testing mattress by 120-160 times / min, counter measures the impacting times, shut down automatically when reaches the setting times.



Standards:

ASTM F1566


Key Specifications



Model

GT-LA03

Impact height

0-300mm adjustable

The impact of block speed

120-160 times adjustable

Counter measures and set the range

0-99999 times

The impact of motor power

2KW DC

Standards

ASTM F1566



Applications Industry

The springs of Mattress can be tested on the Mattress Spring Fatigue Tester
