products

Mattress Hardness Tester GT-LA04

  • Brand:

    GESTER
  • Item NO.:

    GT-LA04
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20-30 days
  • Product Detail

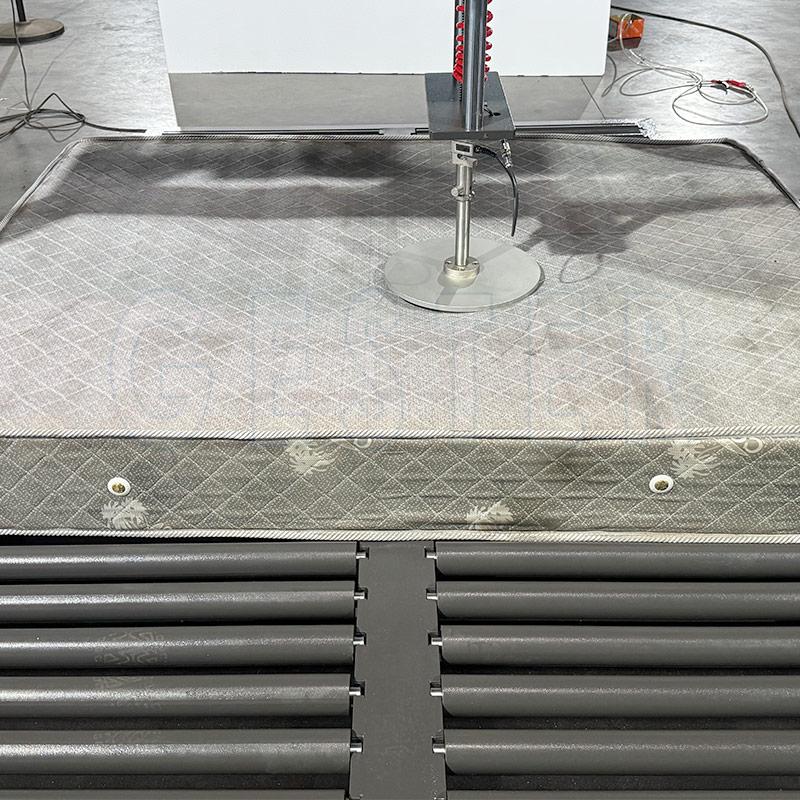

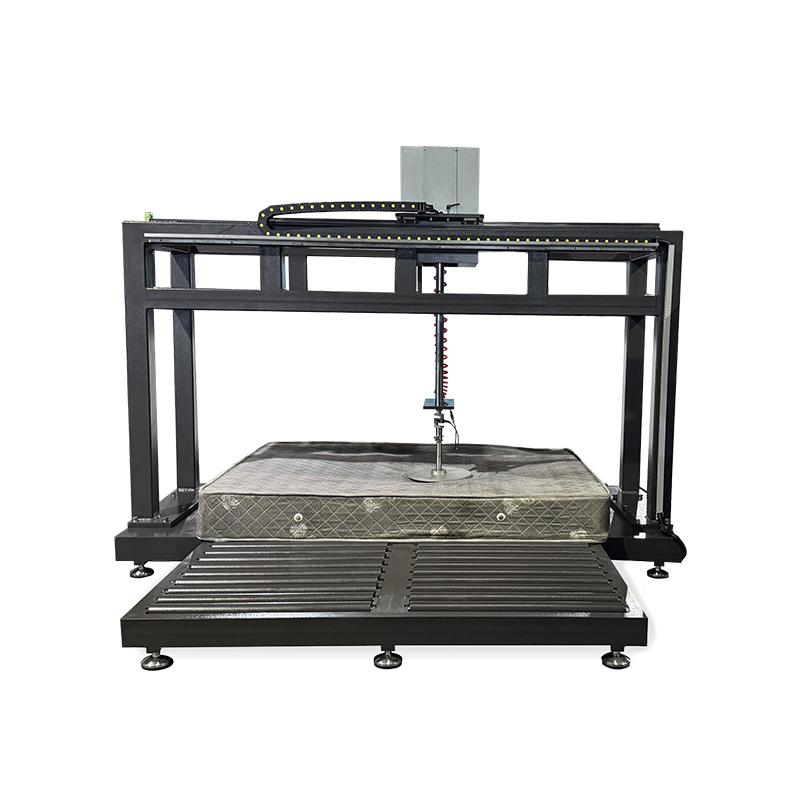

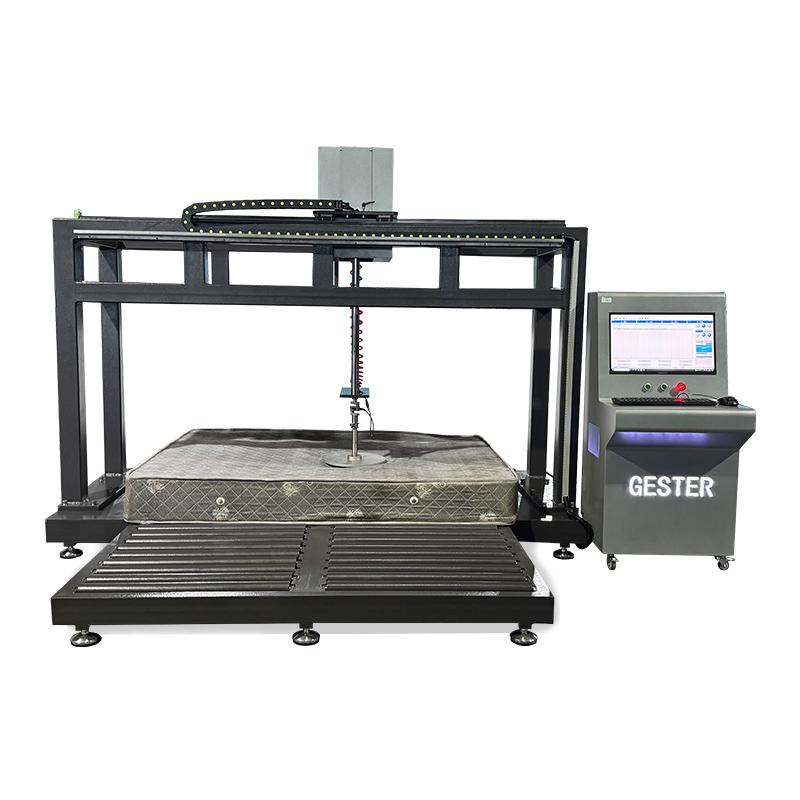

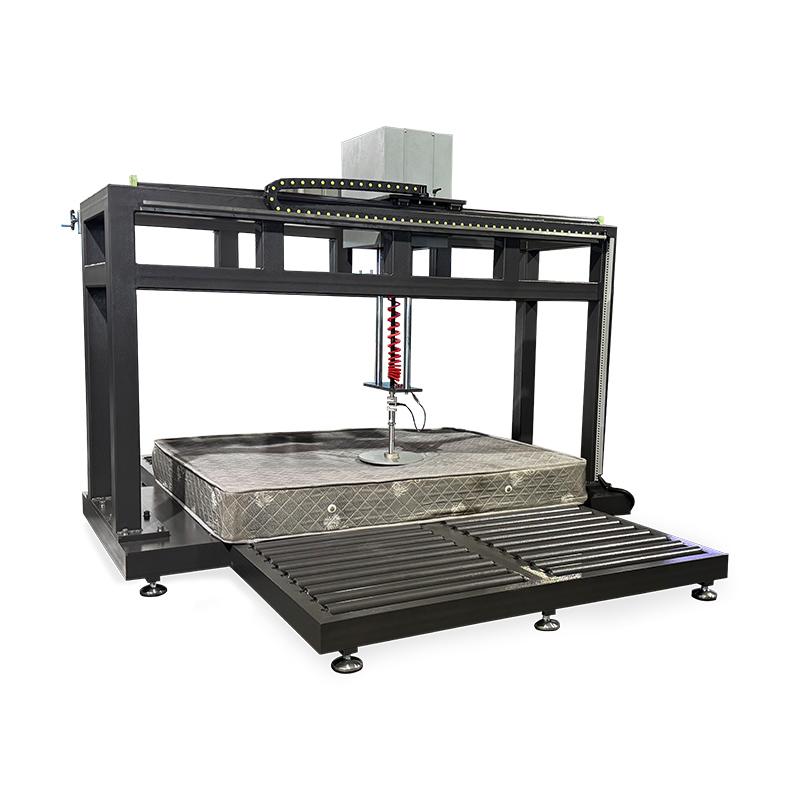

Mattress Hardness Tester GT-LA04


Product Introduction

Application:

Mattress hardness tester is used to evaluate the firmness of the mattresses, which is applied to laboratory test and quality control in production line. The applicable range: foam products, mattress manufacturing, car seat manufacturers and other industries.



Standards:

ASTM F1566, BS EN 1957, QB/T 1952.2

Principle


Universal hardness and hardness measurements are based on a physical property called indentation force deflection. The hardness is calculated by determining the ratio of the thickness after being compressed and the original circular indentation force. The computer receives the signal from the sensor and record the extent of indentation when the platen stresses on the specimen. In order to compare the test results,the size and thickness of specimens must be the same.



Key Specifications



Maximum Capacity

0-5000N

pressure plate

Diameter: 344± 5mm

Diameter:355mm

Thickness: 12 ± 1 mm

Spherical radius: 800mm

Test speed

0.001--500mm/min

Control method

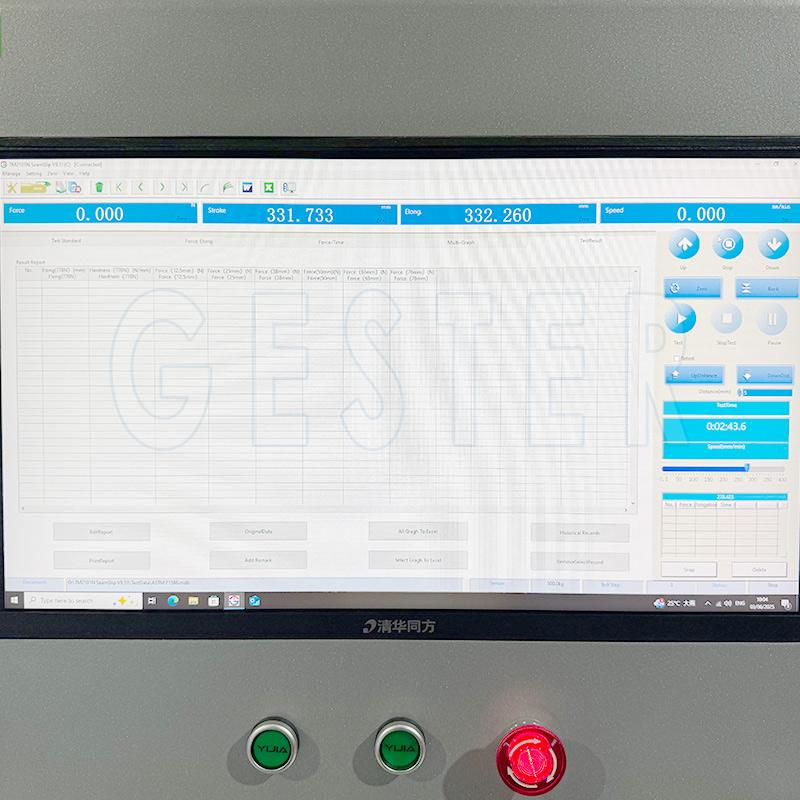

Computer control

Dimension(WxDxH)

320*320*160CM

Weight (Kg)

700Kg

power

1∮ AC  220V  50Hz

Standards

ASTM F1566

BS EN 1957, QB/T 1952.2

Standard accessories

Data line       1 pc

Pressure plate   2 pc

Pulley support frame  2 pc



Applications Industry

All kinds of foam samples can be tested on the Foam Compression Tester/ Hardness Tester
