Bursting Strength Tester GT-C12A

Bursting Strength Tester is applied to determine the bursting strength and distension at burst of woven, knitted and non woven fabrics, papers and boards.

  • Brand:

    GESTER
  • Item NO.:

    GT-C12A
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 days
  • Product Detail

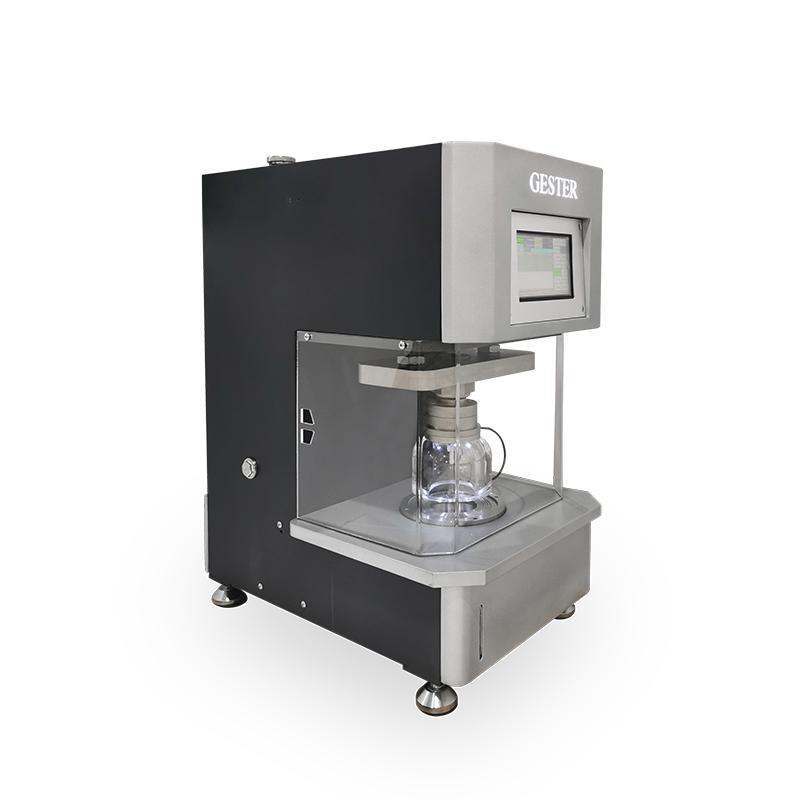

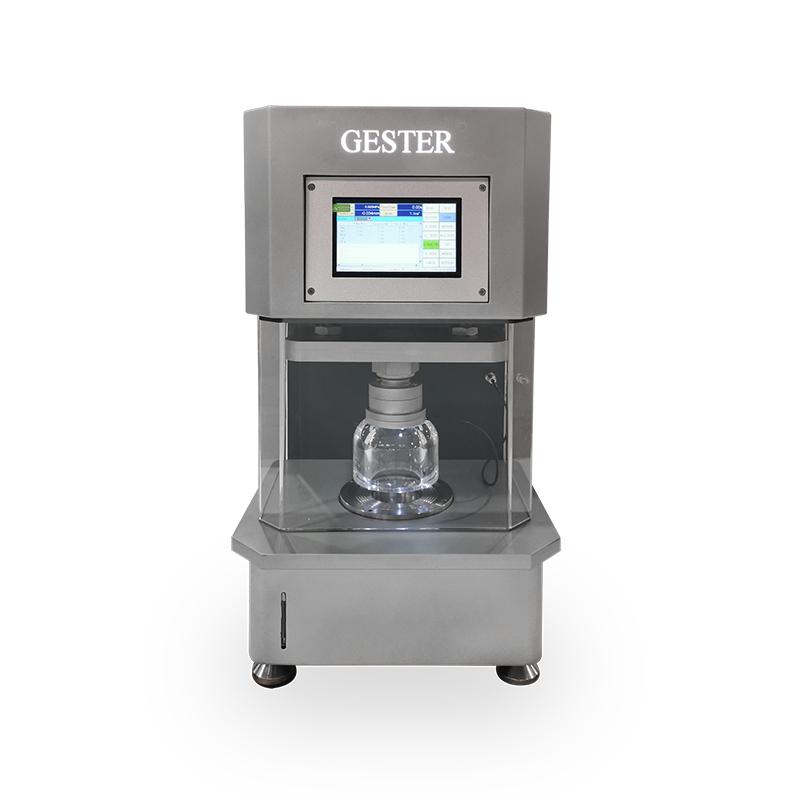

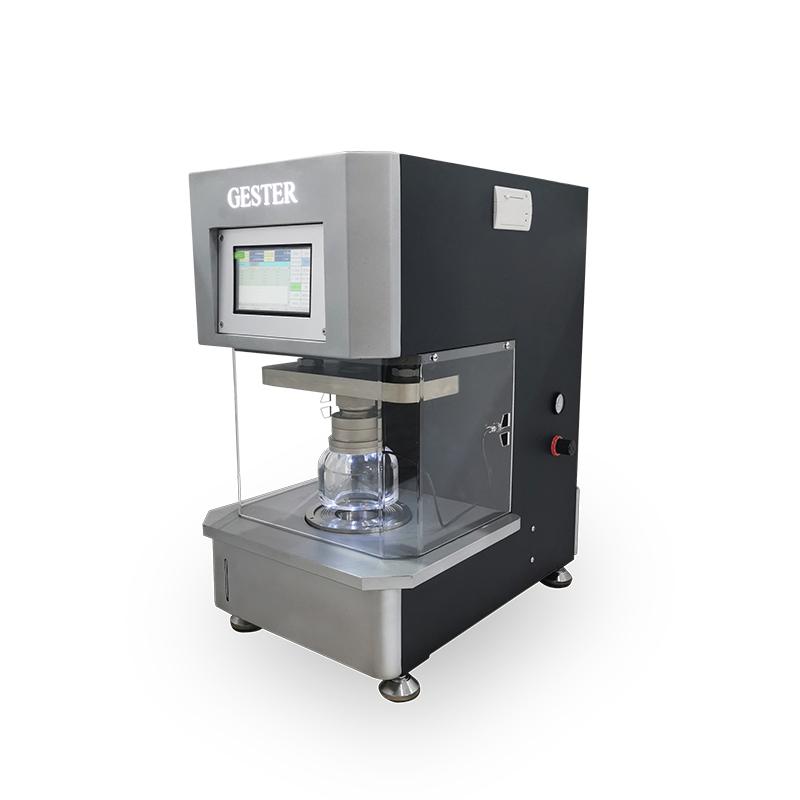

Bursting Strength Tester GT-C12A


Product Introduction of bursting strength tester

Application:

Bursting Strength Tester is applied to determine the bursting strength test and distension at burst of woven, knitted and non woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.


Standards:

ISO 13938.1, FZ/T 60019, FZ/T 01030, ASTM D3786, BS 4768, WOOLMARK TM 29
WSP 30.1, JIS L 1018.6.17


Features of burst strength tester


1. This burst test equipment use hydraulic method, meet multinational standards and equipped with several changeable test clamp.

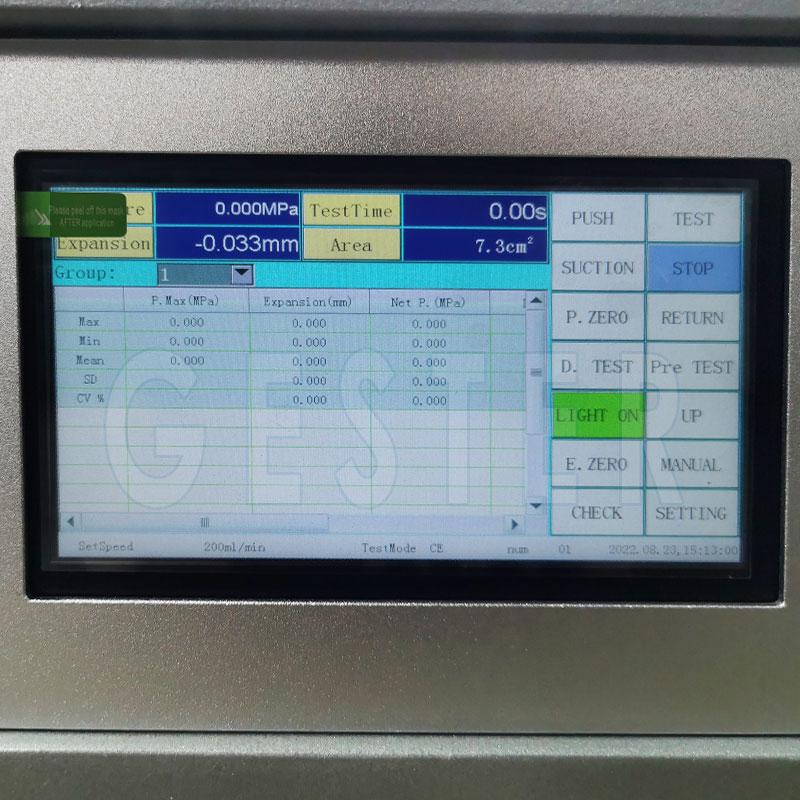

2. The simple interface touching screen controller is easy and simple to handle.

3. The specimen was clamped firmly by the pneumatic force which can also save effort.

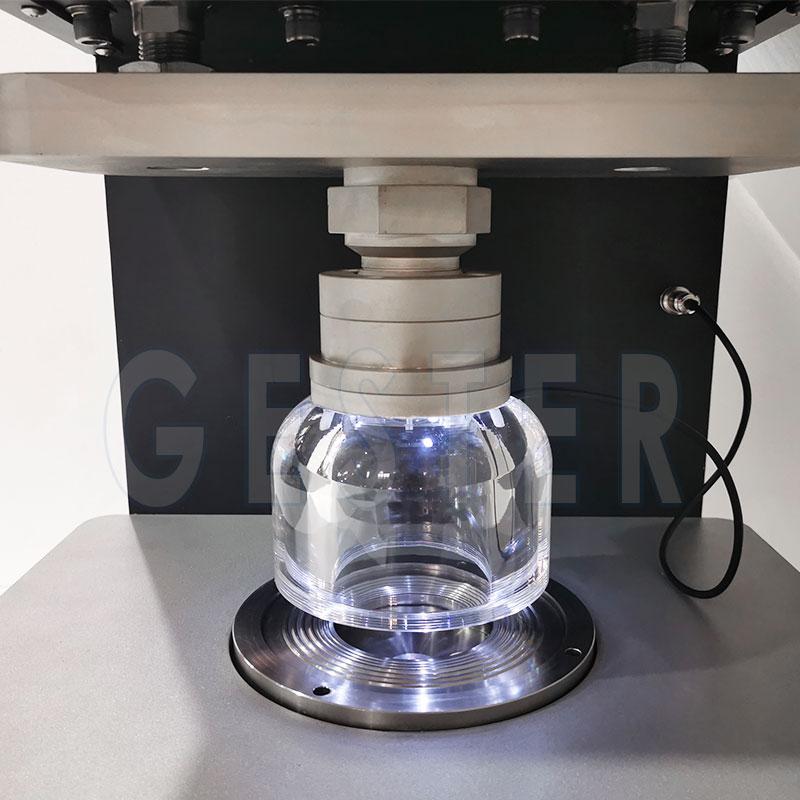

4. The burst test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily.

5. The burst test equipment can induct the burst automatically which is much more sensitive and reliable.

6. The bursting distension can go up to 75mm.

7. The AC servo drive system with low noise and wide range of applications.

8. 4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.

9. The burst tester bring saving and printing functions and support on-line operation.

10. Provide on-line interfaces, professional detection software which can be used to analysis testing result.

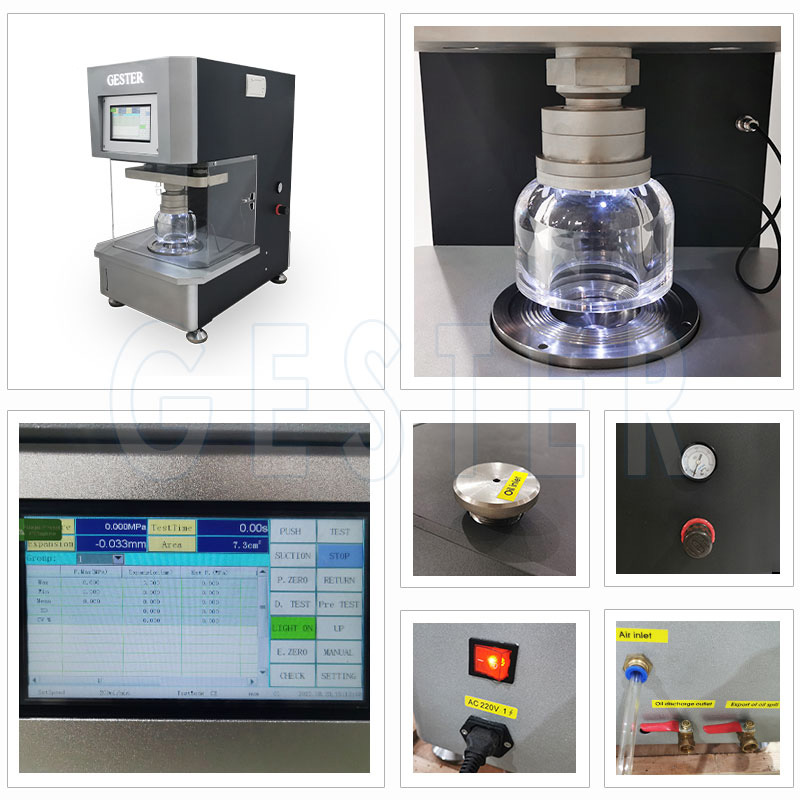

Bursting Strength Tester GT-C12A


Dimensions of burst strength tester

hydraulic bursting strength tester



Key Specifications of burst strength tester



Model

GT-C12A-1

GT-C12A-2

Range

2.00Mpa

10.000Mpa

The min. Division value

0.001Mpa

0.003Mpa

Test area

7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm),

50cm2 (Φ79.8mm), 100 cm (Φ112.8mm) can be option

Thickness of rubber diaphragm

≤2mm

Pressure speed

20ml/min - 600ml/min

Maximun expansion height

75 ± 0.02mm

Testing units

Kpa, kgf/ cm2, atm, mmHg, lb/in2  free shift

Test method

Constant Rate Bursting,

Constant Expansion,

Constant Pressure,

Constant Time Bursting

Output

Printer ,display output, and can be connected to the computer

Power supply

AC 220V 50/60HZ  200W

Dimensions

550×450×700mm

Net weight

125kg



Standard accessories

1 set

Test set of 7.3cm²(φ30.5mm)

1 set

Test set of 50cm²(φ79.8mm)

1pc

Wrench

1pc

Stainless steel calibration plate

1pc

Rubber diaphragm

1pc

English operation software

1pc

Cable connect with PC

Optional accessories

Optional

Other test set

Optional

Rubber diaphragm

Optional

Air compressor



Application Industry of fabric burst strength tester

All kinds of below materials can be tested on the Bursting Strength Tester GT-C12
