Carpet Cushion Dynamic Fatigue Tester GT-LE04

The purpose of this test is to determine: (1) retention of load bearing (65 % IFD), (2) a loss in thickness, and (3) structural breakdown as addressed by visual inspection.
This procedure describes tests that evaluate the specimen by repeatedly deflecting the carpet cushion by a 152 mm diameter and 152 mm wide rubber covered roller exerting a force of 266±5N on the test specimens.

  • Brand:

    GESTER

  • Item NO.:

    GT-LE04

  • Order(MOQ):

    1

  • Payment:

    TT OR L/C

  • Shipping Port:

    Xiamen Port

  • Lead Time：

    About 30days
Inquire now

  • Product Detail

Carpet Cushion Dynamic Fatigue Tester GT-LE04


Product Introduction

Application:

The purpose of this test is to determine: (1) retention of load bearing (65 % IFD), (2) a loss in thickness, and (3) structural breakdown as addressed by visual inspection.


Theory

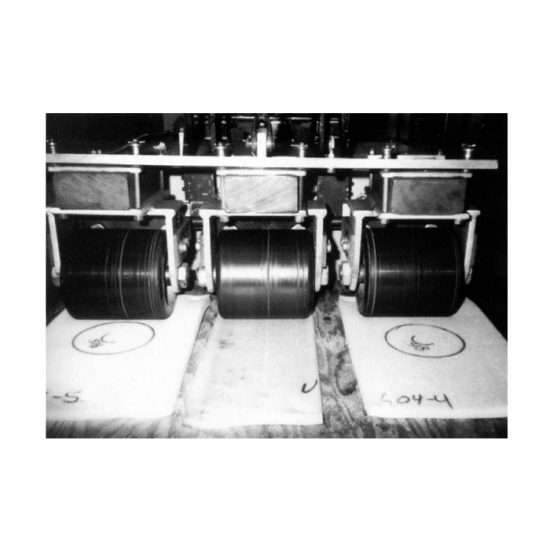

This procedure describes tests that evaluate the specimen by repeatedly deflecting the carpet cushion by a 152 mm diameter and 152 mm wide rubber covered roller exerting a force of 266±5N on the test specimens.


Key Specifications



Model

GT-LE04

Station

3

Roller Length

152mm

Roller Diameter

152mm

Test Load

266±5N

Test Speed

0-31cpm (adjustable)

Base Platen

19 mm thick plywood

Stroke Length

330 ± 10 mm

Specimen Size

380×230×13mm

Dimension(WxDxH)

130*68*115cm

Weight(Kg)

≈200Kg

Power

1∮ AC  220V  50Hz
