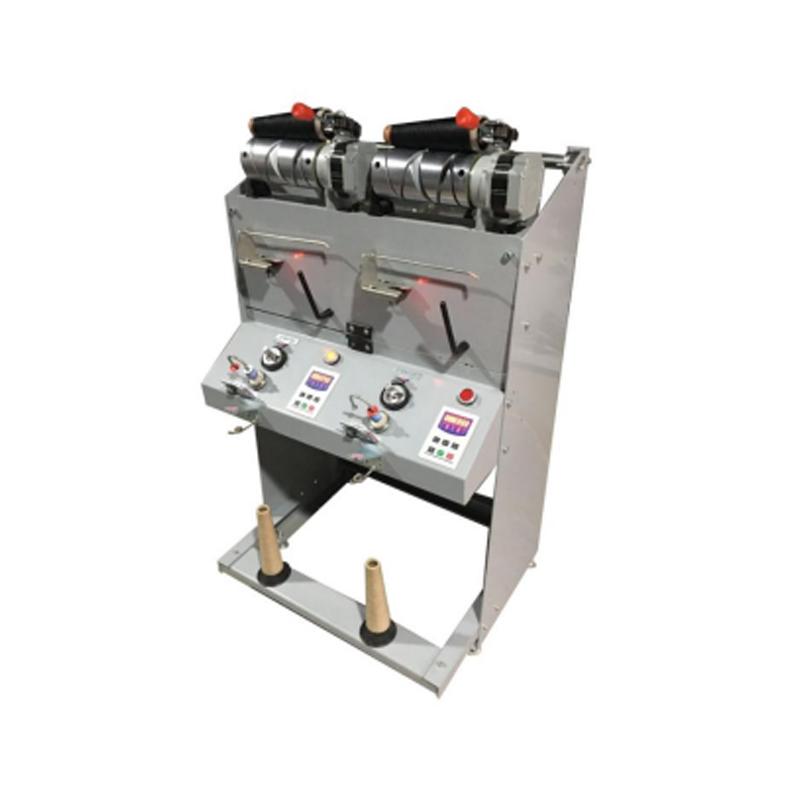

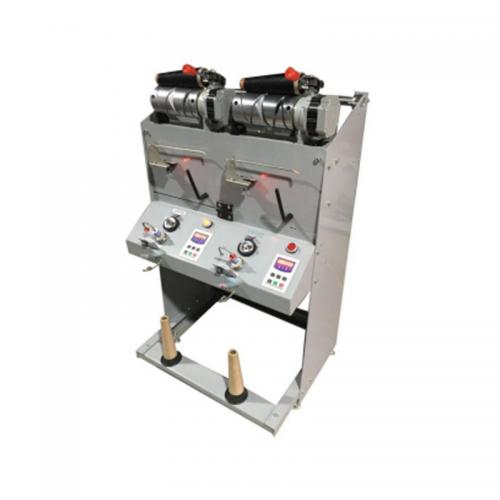

Cone Winding Machine GT-AB33

GESTER GT-AB33 Cone Winding Machine is a compact, high-precision laboratory yarn winding equipment. Utilizing an advanced grooved drum mechanism, the GT-AB33 efficiently winds spun yarns or synthetic threads into uniform cheese (cone/package) shapes. It is specifically designed for textile research, lab sampling, and small-batch yarn preparation before weaving, knitting, or quality testing.

Brand:
GESTER
Item NO.:
GT-AB33
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
15-30 Days

Inquire now

Product Detail

Automatic Cone Winding Machine

Product Introduction

A Cone Winding Machine is a highly precise, automated device designed for winding yarn or thread onto cones bobbin.

Feature

Yarn cone winder machine using high quality alloy drums with optimized groove shape, which has the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination.
Single winding motor control for each spindle, electronic fixed-length, and single spindle automatic stop while yarn breaking or fully filled.
High-speed creel with gas spring, which can keep constant winding pressure. This creel is stable and reliable.

Auto cone winding machine Key Specification

Model	GT-AB33-1	GT-AB33-2
Winding yarn count	1	2
Speed	25m/min~1000m/min(Depending on yarns quality and count)
Package bobbin	0°, 3°30’, 4°20’, 5°57’, 9°15′
Package diameter	Up to φ 290 mm
Package weight	Can up to 3kg
Yarns / count	Cotton. flax, wool, silk, chemical fiber /Ne 6~180
Auto stop while yarn break	With electronic yarn sensor, the spindle will stop when yarn break
Automatic length fixing	Automatic length fixing,max:999999m
Slow start	For smooth start and better winding quality,supporting individual slow start for each spindle
Dimensions	360×360×460mm		650mm×440mm×1140mm
Weight	35kg		60kg
Power	1 Phase 220V 50/60HZ

Cone Winding Machine FAQ

Q1: What is the main function of the GESTER GT-AB33 Winding Machine?

A: The GESTER GT-AB33 is a small-scale laboratory prototype machine designed to wind yarn into cheese (cone) packages using a grooved drum mechanism for textile testing and sampling.

Q2: What types of yarn can be processed by GT-AB33?

A: It is compatible with a wide range of spun and continuous filament yarns, including cotton, wool, chemical fibers, and blended yarns.

Q3: Why choose GT-AB33 for textile laboratories?

A: GT-AB33 offers a compact footprint, reliable package shaping via grooved drum technology, and flexible operation, making it cost-effective for small-batch yarn preparation in lab environments.
