DeMattia Upper Flexing Tester GT-KB08B

DeMattia Flexing Fatigue Tester 20 years R & D sales experience,  In stock, fast delivery.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB08B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

DeMattia Upper Flexing Tester GT-KB08B


Product Introduction

Application:

DeMattia Upper Flexing Tester is used to determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke.

Standards:
HG/T2873, ASTM D813, D430, GB/T13934,13935, JIS-K6301, ISO132,133, BS-903-A10

Feature

1. DeMattia Flex Cracking Tester To determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials.

2. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke.

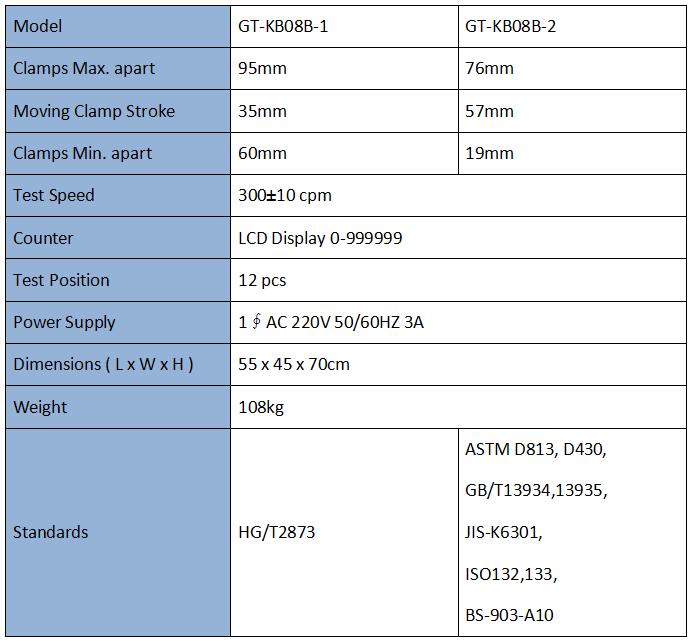

De Mattia Flex Tester Key Specifications


Model

GT-KB08B-1

GT-KB08B-2

GT-KB08B-3

Clamps Max. apart

95mm

76mm

70mm

Moving Clamp Stroke

35mm

57mm

57mm

Clamps Min. apart

60mm

19mm

13mm

Control Method

Touch screen control

Test Speed

300±10 cpm

Counter

Display 0-999999

Test Position

12 pcs

Power Supply

1∮AC 220V 50/60HZ 3A

Standards

HG/T2873

ASTM D813, D430,

GB/T13934,13935,

JIS-K6301,

ISO132,133,

BS-903-A10

ISO 7854-Method A,

BS 3424:Part9,

GB/T 12586 Method A,

EN ISO 2023, Annex E

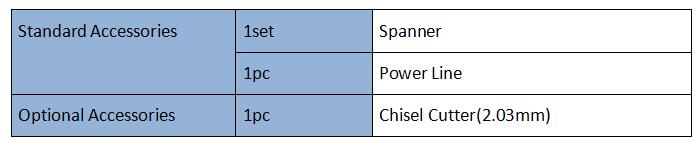

Accessories

Standard Accessories



1set

Spanner

1pc

Power Line

Optional Accessories



1pc

Chisel Cutter(2.03mm)


Application Industry
All the material blow can be tested on the DeMattia Upper Flexing Tester
