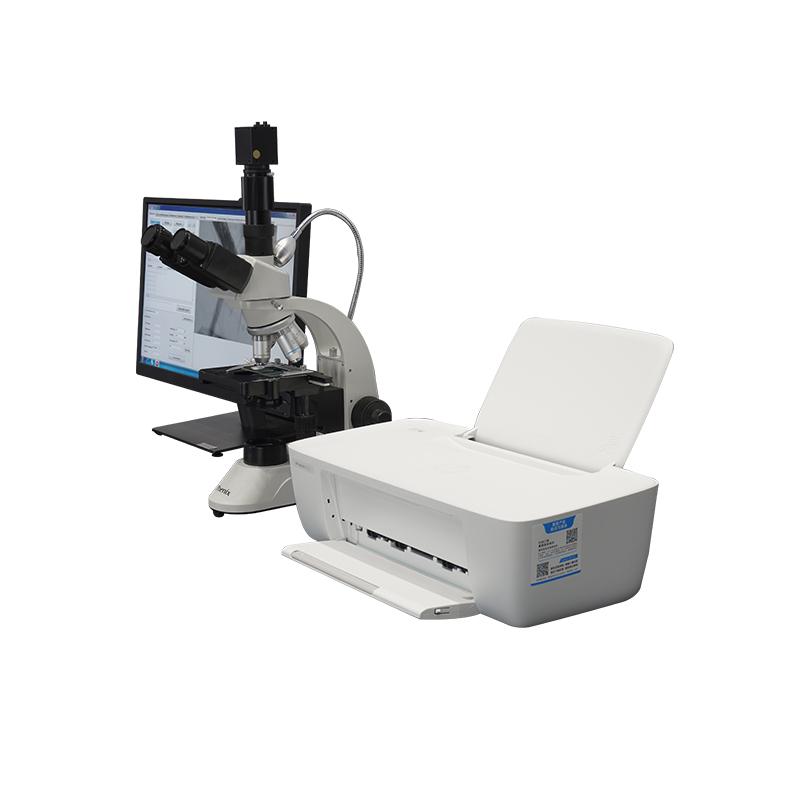

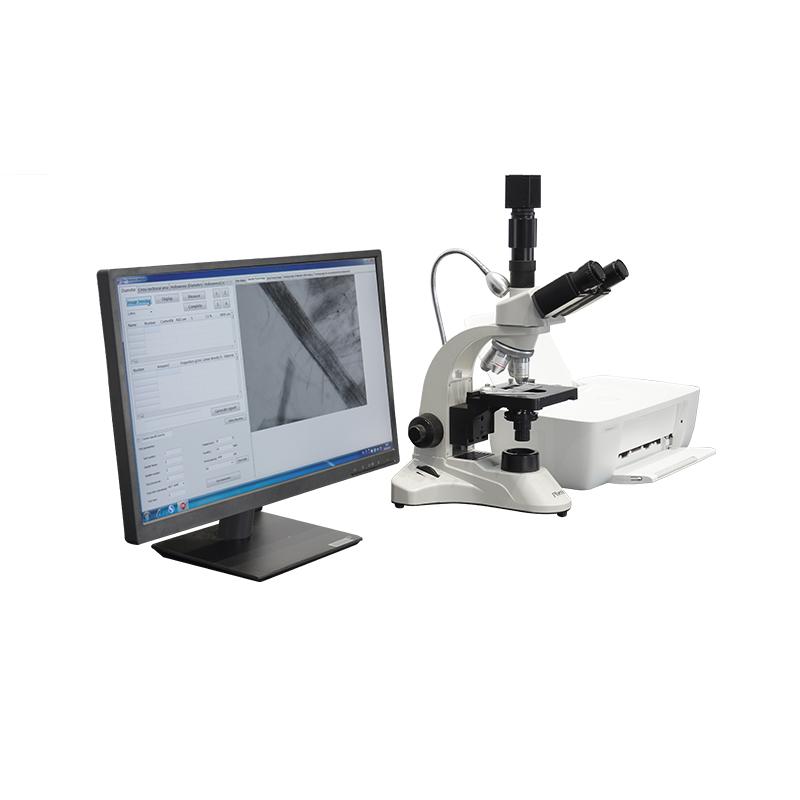

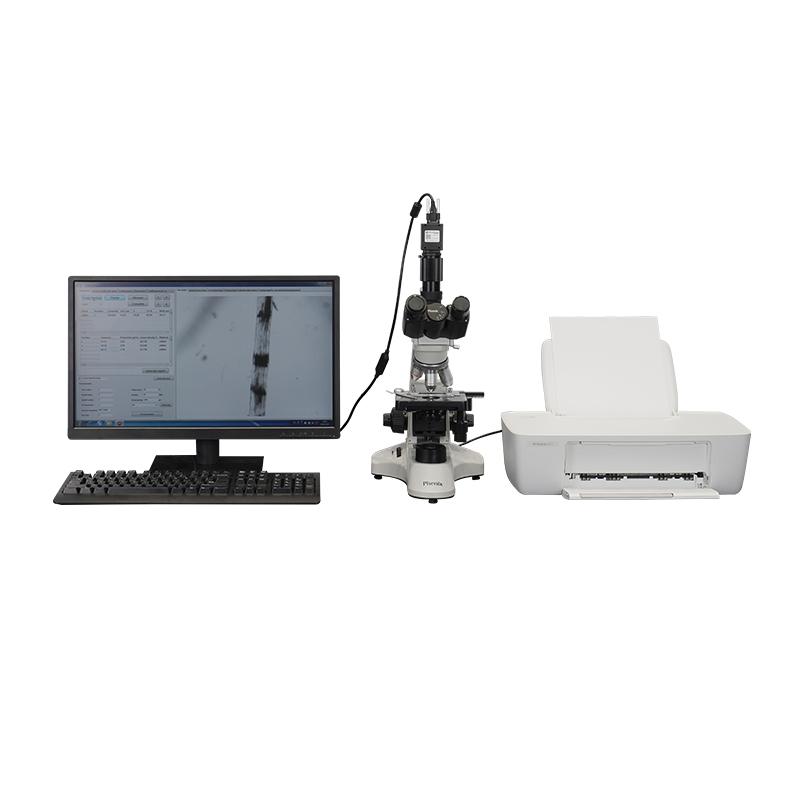

Fiber Fineness Tester GT-B17B

Fiber Fineness Tester GT-B17B

Application:

It’s used for the detection and statistical analysis of various fibers such as cotton fiber, viscose, polyester, polypropylene fiber, Tencel, ramie, flax, sheep wool, cashmere, rabbit hair, etc. Through the measurement of the fiber diameter, the instrument automatically calculates its fineness. Through the morphological analysis of a single fiber, it can measure the fiber content in blended products, the blended content of yarns, the blended content of fabrics, the cross-sectional area of fibers etc. It is a new generation of fiber detection equipment. The system adopts advanced computer digital image processing technology. Compared with traditional fineness measurement instruments, this system has the advantages of high measurement accuracy, complete functions, simple operation, and complete and accurate output content.

Standards:

GB/T 10685-2007, GB/T 3364-2008, FZ/T 01057.3-2007, AATCC 20-2018, FZ/T 20026-2013, ISO 137:2015,

GB/T 12412-2007, GB/T 9998-2006, GB/T 18267-2013, GB/T 16254-2008 , GB/T 13835.6-2009, GB/T21977-2008, FZ/T 30003-2009, FZ/T 32004-2009, SN/T1062-2010, FZ/T 01101-2008, GB/T 10288-2016

Feature:

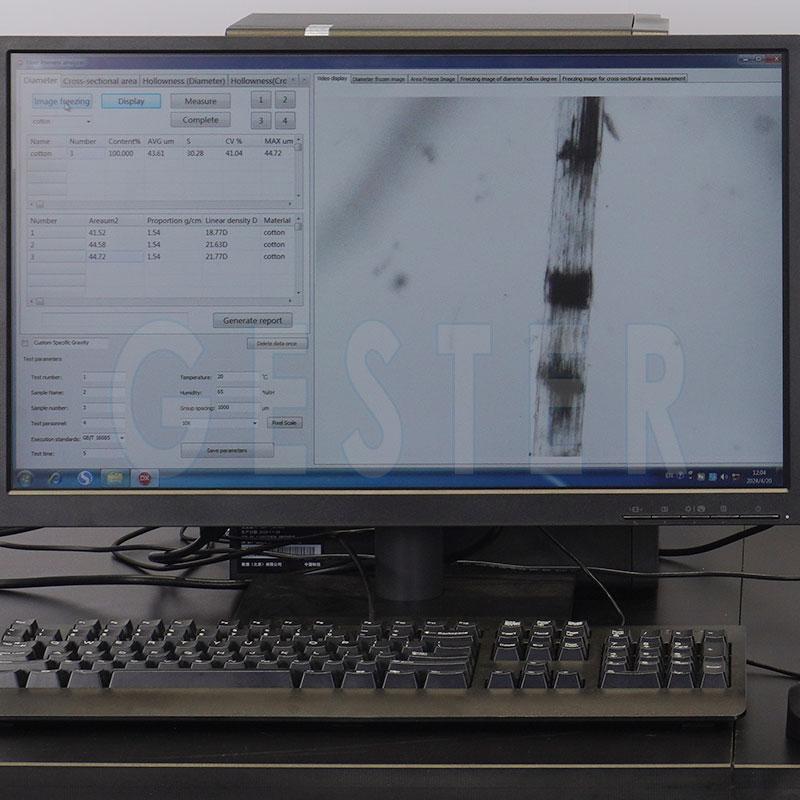

• Simple operation: operators can adjust the fiber images observed on the screen in real time and conduct real-time measurements.
• Fast measurement speed: by utilizing the high-speed digital image processing and calculation functions of the computer, it only takes a few minutes from the start of detecting each sample to the final output of the report.
• High measurement accuracy: the system adopts a high-precision fineness measurement algorithm, and the average repeatability accuracy of measurement is better than 0.1 micrometers.
• Multifunctional measurement, the statistical data include: the total number of fibers, average diameter, standard deviation, CV value, maximum value, and minimum value. The number of fibers of each component, average diameter, mean value, standard deviation, CV value, and weight percentage. The number of different types of fibers, average diameter, standard deviation, CV value, weight percentage, fiber cross-sectional area, vacuum degree, etc.
• Printing and output function: fiber photos can be saved and printed, and color or black-and-white images can be output.
• Table export function: the system can directly save the measurement results in various formats such as Excel, and further complete the production and analysis of various spreadsheets and statistical graphs.
• Objectivity of measurement results: the measurement and statistical analysis are completely automatically completed by the computer, eliminating the interference of subjective human factors.
