Film Pendulum Impact Tester GT-N66

Film Testing Equipment Manufacturers Suppliers

Brand:
GESTER
Item NO.:
GT-N66
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

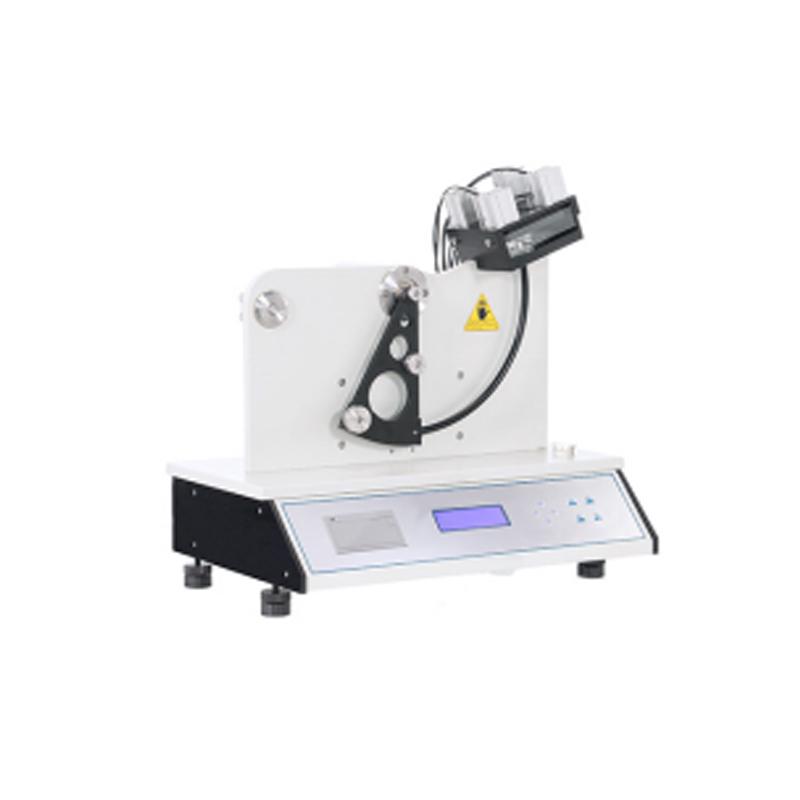

Film Pendulum Impact Tester GT-N66

Product Introduction

Application:

This pendulum impact tester is used for testing the pendulum impact resistance of plastics, plastic films, sheets, and composite films.

The impact toughness of non-metallic materials and metal foils, such as PE/PP composite film, aluminized film, aluminum-plastic composite film, nylon film, aluminized paper for cigarette packs, and aluminum-plastic paper composite materials for Tetra Pak packaging, is measured. The instrument evaluates the sample's resistance to pendulum impact by measuring the energy consumed when a hemispherical punch impacts and passes through the sample at a certain speed.

Standards

GB/T 8809, ASTM D3420

Feature

Microcomputer control, LCD display, automatic data processing with micro printer.
Pneumatic clamping, pneumatic release of pendulum, electronic level adjustment function, equipped with professional testing software for easy connection to computer for analysis and storage of data, precise calculation of scale, and accurate zeroing
The dial displays the minimum division value: 0.01J.

Film Impact Tester Key Specification

Model	GT-N66
Max impact energy	3J(5J for optional)
Resolution	0.01 J
Specimen size	100 mm×100 mm or 100mm
Sample clamping opening diameter	89mm, 60mm
Punch size	SR12.7 mm-25.4(A)、R12.7-19 (B)
Smaple clamping method	Pneumatic or manual(optional)
Swing range	R300
Swinging horn angle	90°
Power Supply	AC 220V±10% / 50Hz

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Film Pendulum Impact Tester GT-N66
