Manual Cap Torque Tester GT-N81A

bottle cap torque tester manufacturers

Brand:
GESTER
Item NO.:
GT-N81A
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

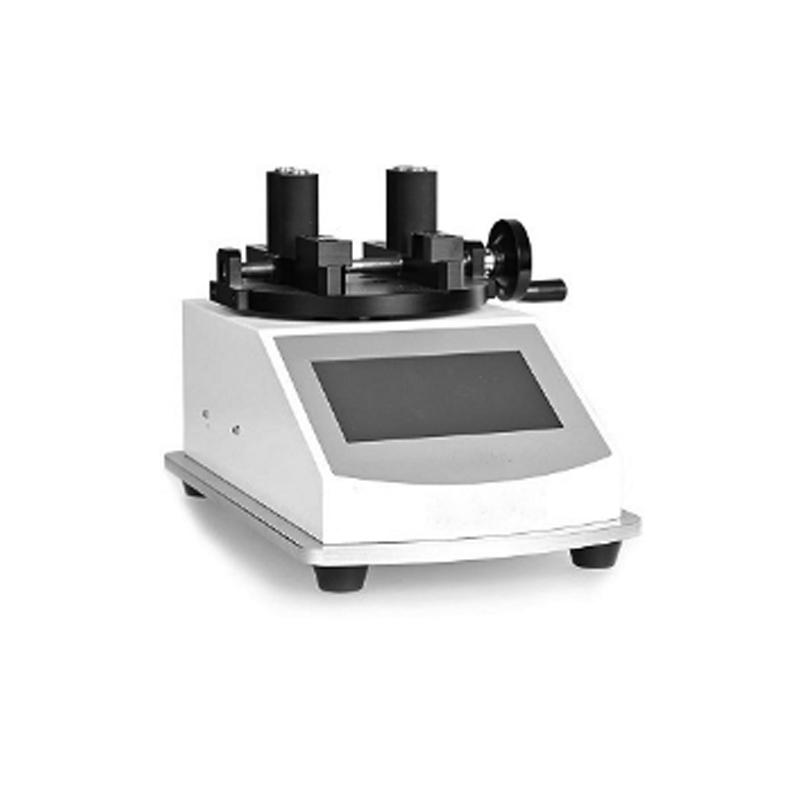

Manual Cap Torque Tester GT-N81A

Product Introduction

Application:

This torque tester designed for testing the torque values of bottle cap locking and opening for packaging products such as vial, beverage bottles, mineral water bottles, feeder, oil drums, etc.

Standards

GB/T 17876, BB/T 0025, BB/T 0034 (GB/T 14803), ASTM D2063, ASTM D3198, ASTM D3474

YBB00112002-2015, YBB00122002-2015, YBB00262002-2015

Cap Torque Tester Feature

Single group and multi group testing modes, automatic statistics of test results.
With locking force and opening force modes, a multi-purpose machine.
Unit: N·m, kg·cm, ib·in(convertibility).
Force save function, the max force can be saved.
Result store function,up to 20 groups results can be saved.
High precision torque sensor, measuring accuracy level 0.5.
LCD display, highly resolution clear screen display.
With peak alarm, can ensure tests are conducted in an orderly manner.
High speed micro printer output, low noise, no need to replace ribbon, easy to replace paper roll.
Built-in calibration program, easy to measure, microcomputer control technology, open structure, friendly HCI, easy operation.
With external calibration certificate.
Can be operated by software, two-way operation, more powerful.

Bottle Cap Torque Tester Key Specification

Model	GT-N81A
Test range	0-5-N·m （ 0-20 N·m optional）
Test unit	N·m kg·cm ib·in
Test accuracy	0.5 level
Test mode	Peak value test (opening force), fix value test (loacking force)
Clamp size	3mm-180mm
Store data	1000groups (Any group statistics, printing)
Size	280 mm×335mm×200 mm (L×W×H)
Net weight	10kg
Power supply	AC 220V±10% / 50Hz
Standard accessories	Power line Printer paper
Option accessories	Customized fixtures

Basic Application

Bottle container	Suitable for torque value testing of bottle cap locking and opening for food and medicine (threaded connections) packaged in bottles. Such as beverage bottles, medicine bottles, etc
Flexible tube packaging products	Suitable for torque value testing of locking and opening bottle caps for food, medicine, and cosmetics packaged in flexible hoses, such as eye drops, water bottles, hand cream, shoe polish (threaded connections), etc

Extensive Application

Torque value for thread locking and opening	Suitable for testing the torque values of the opening & locking force between nuts and bolts
Vacuum bottles and cups products	Suitable for testing the torque values of the opening & locking force of bottle cap for vacuum bottle and cups(threaded connections)
