Sauce Package Compressive Resistance Tester GT-N79B

Flexible Packaging Testing Equipment Manufacturers Suppliers
  • Brand:

    GESTER
  • Item NO.:

    GT-N79B
  • Order(MOQ):

    1
  • Lead Time:

    15-30 days
  • Product Detail

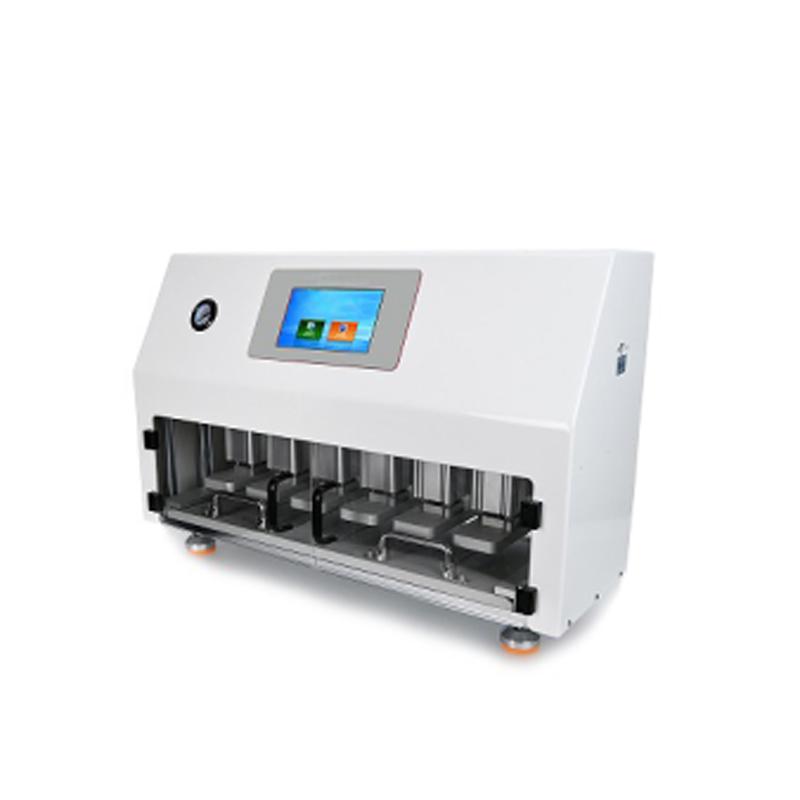

Sauce Package Compressive Resistance Tester GT-N79B


Product Introduction

Application

Packaging compressive resistance tester is used for determine food sauce package compression test, such as instant noodle sauce package, ketchup package, salad package, vegetable package, jam package, cream package, etc. It is suitable for food and drug supervision and inspection institute, universities, third-party testing organizations, food enterprises, food packaging enterprises, etc.


Principle

The equipment is controlled by touch microcomputer, through the adjustment of the pressure reducing valve so that the cylinder to achieve the desired pressure, by the microcomputer for timing, control of solenoid valve reversal, control of the specimen platen up and down action, to observe the specimen in a certain pressure and time under the sealing condition.


Sauce Package Compressive Strength Tester Key Specifications


Model

GT-N79B

Test pressure

0.1 MPa~0.7 MPa

Screen size

7-inch touchscreen

Control system

Microcomputer

Test time

1.0 s~999999.9 S

Test position

6 work positions

Air pressure

0.7 MPa~0.8MPa

Air supply connection

φ8mm Polyurethane Tubing

Sample pressing plate

6pcs

Dimension

660×200×372mm
