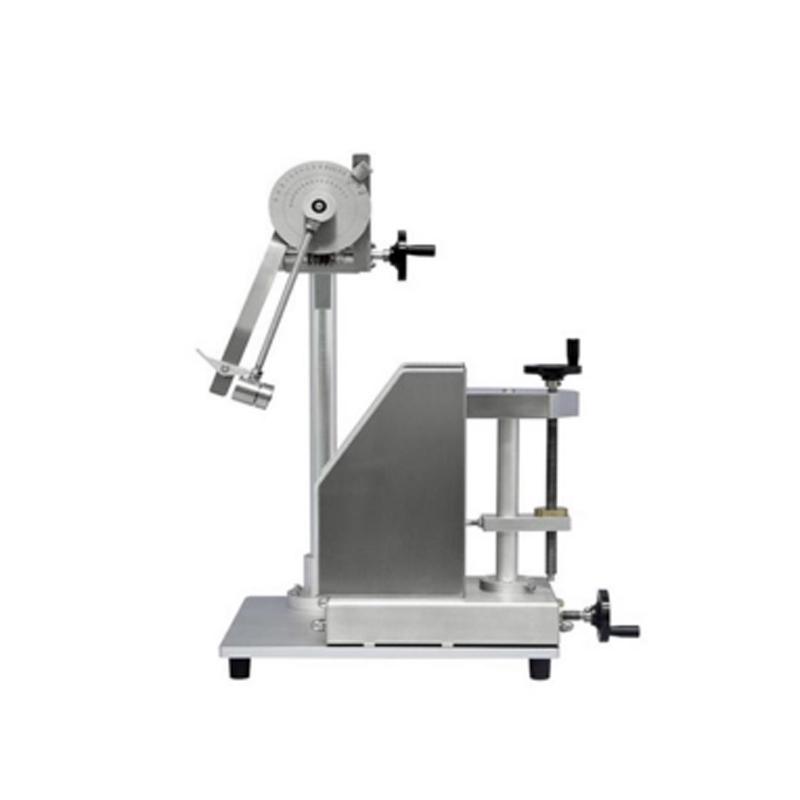

Glass Bottle Impact Testing Machine GT-N80

Product Introduction

Application:

The glass pre-valued pendulum impact tester is a specialized instrument designed for testing the impact resistance of glass bottles and jars, and is used to test the mechanical impact resistance of various types of glass bottles and jars.

Glass Bottle Pendulum Impact Tester Key Specification

Model	GT-N80
Impact test energy range	2.0J
Test bottle diameter range	30-120mm
Impact position adjustment range	6～165mm
Instrument resolution	0.05J per division for impact energy less than 0.6J; 0.1J per division for impact energy greater than 0.6J.
Energy loss	Less than 1.5%
Standard	GB/T4544-98, GB6552-86
