Furniture Universal Testing Machine For Desk GT-LD09

Furniture Universal Testing Machine For Desk And Tables
  • Brand:

    GESTER
  • Item NO.:

    GT-LD09
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-30 days
  • Product Detail

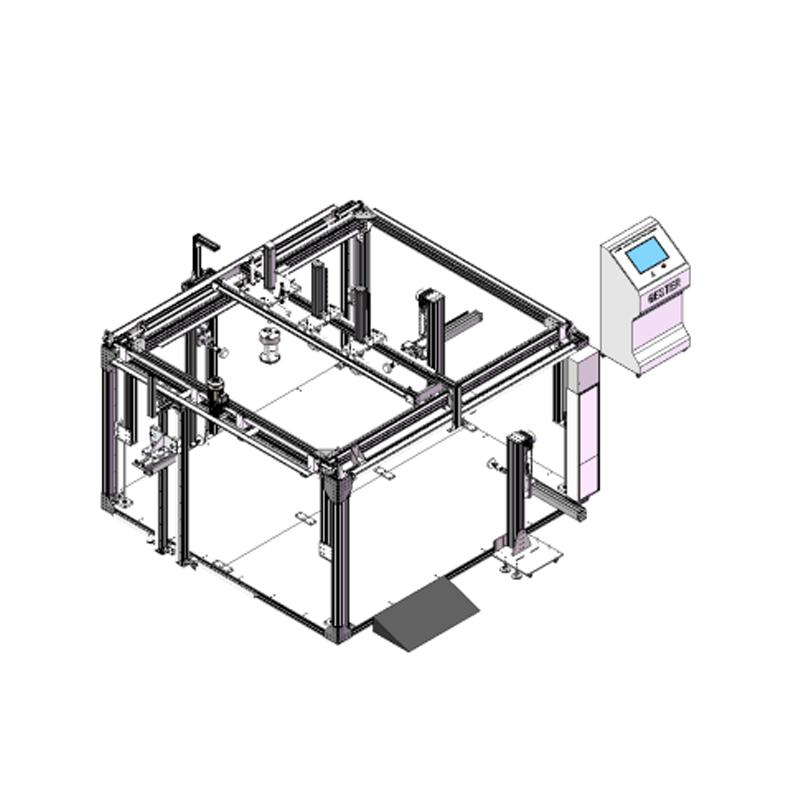

Furniture Universal Testing Machine For Desk GT-LD09


Product Introduction

Application:

This Furniture Universal Testing Machine is used for testing the mechanical properties of tables and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.


Feature:

1.The machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2.The frame adjustment part of the tester adopts pulley structure design. Can easily adjust the loading position to adapt to different specifications of the sample. Positioning handle makes the positioning easier and improve the efficiency.
3.The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4.PLC controller to control the actions of the instrument; the operation is intuitive and simple.
5.Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6.Removable loading pad, can easily change the different loading pad to meet the different test requirements.


Key Specifications


Model

GT-LD09

Control mode

PLC control

The Max. length of specimen

3m

Force sensor

2.5KN

Drive mode

Servo motor+Cylinder

Machine Dimensions

320cm×250cm×200cm(L×W×H)

Test Standards

Desk:

EN 1730-2012 Section 6.2, 6.3, 6.4, 6.5, 6.6, 7.2, 7.3,

BS EN 15372-2016 Test1, Test2, Test3, Test5, Test6, Test8, Test10,

AS NZS 4610.3-1999 Annex B, D, E, G, N, P, R

AS NZS 4442-1997 Annex A, B, H, J

Testing Methods --- Desk

Standard EN 1730

6.2 Horizontal static load test

6.3 Vertical static load tests

6.4 Horizontal durability and stiffness test

6.5 Vertical durability test

6.6 Vertical impact test

7.2 Stability under vertical load

7.3 Stability for tables with extension elements

Standard Accessories

- Horizontal loading device              4 sets

- Vertical loading device                2 sets

- Impact device                        1 set

- Local loading pad                    6 pcs

- GT-LB01-6 Seat impactor device       1Set

- Force sensor                          6 pcs

- Stoppers                             4 pcs


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Drawer Durability & Strength Testing Machine
Furniture Testing Equipment Drawer Durability Strength Tester GT-LD01C
Furniture Testing Equipment Manufacturers Suppliers
Read More

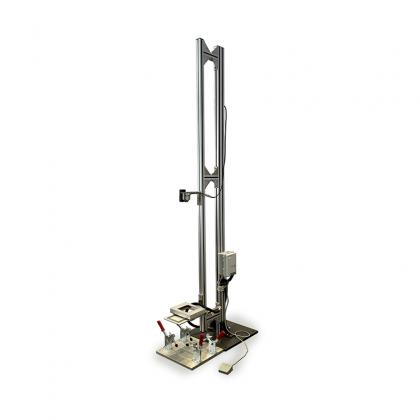

Large Ball Impact Tester
