Touch Screen Glow Wire Tester GT-MC35H-2

Glow wire tester is the latest release of the flaming test equipment, with programmable touch screen control model, adopted with imported components.
  • Brand:

    GESTER
  • Item NO.:

    GT-MC35H-2
  • Order(MOQ):

    1
  • Lead Time:

    30 days
  • Product Detail

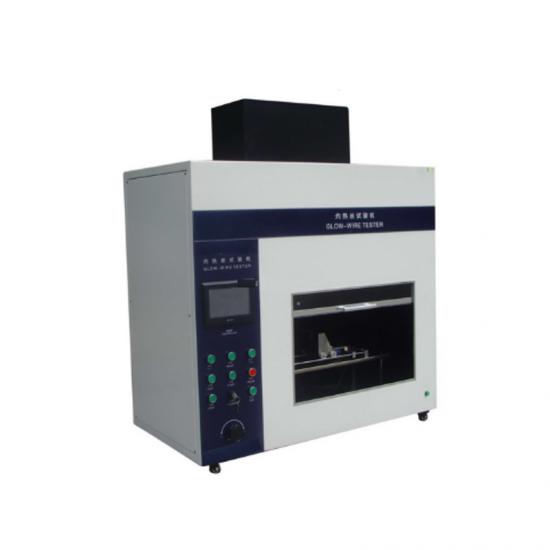

Touch Screen Glow Wire Tester GT-MC35H-2

Product Introduction

Application:

Glow wire tester is the latest release of the flaming test equipment, with programmable touch screen control model, adopted with imported components.

New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment. Apply to the test standards IEC60695,GB5169, etc.


Glow Wire Test Standards:

IEC60695 , GB5169

Feature
  1. Glow wire testing equipment 7 inch touch-screen system+digital module.
  2. Adopted with imported components.
  3. PLC+ Stepper motor position control.
  4. USB test data exported.
  5. Special fixture for Stainless Steel with good quality.
  6. Advanced temperature control and measurement system.
  7. Toughened glass window.
Key Specification


Model

GT- MC35H-2

Inside dimension

1120mm W×600mm D×1020mm H

Controller

7 inches programmable touch screen control model

Glow wire

Φ4mm ±0.2 Ni/Cr(80/20)

Thermocouple

Φ1mm K type

Glow temperature

50~1050℃

Sample pressure

1.0N±0.1N

Sample move speed

10mm /s~25mm /s(adjustable)

Apply temperature time

0.01s~99.99s(adjustable)

Power supply

Single-phase AC 220 V 50/60Hz

Accessories

Standard accessories

1pc

Thermocouple

1pc

Heating wire

2pc

Weights

1pc

Standard calibration silver foil 100mm

5pcs

Silk paper

1.5m

Power line

2.5m

Exhaust duct



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Horizontal and Vertical Flame Chamber
Horizontal and Vertical Flame Chamber GT-MC35F-2
Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade.
Read More
needle flame tester
Needle Flame Test Apparatus GT-MC35G
Needle Flame Tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument. Apply to the test standards IEC60695,GB5169, etc.
Read More
Glow Wire Tester
Glow Wire Test Apparatus (LED Display) GT-MC35H-1
Glow Wire Test Apparatus is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument. The glow wire tester is apply to the latest test standards IEC60695,GB5169, etc.
Read More
Hot Wire Ignition Tester
Hot Wire Ignition Tester GT-MC38
Hot Wire Ignition Tester GT-MC38 Product Introduction Standards: IEC60950, GB4943, IEC 60477-1 clause 5.2.5.4 Feature Programmable control system Precision adjustable power supply Imported aluminum fixture Equipped with test ventilation device One-button timing device Advanced power control system Multiple safety protection system Tempered glass window   Key Specification   Model GT-MC38 Internal dimensions 1120mm*600mm*1020mm (W*D*H) Internal volume ≥0.5m³ Controller 7-inch programmable controller Hot wire material Nickel-Chromium wire (Nickel 80%, Chromium 20%) Hot wire length 250mm Hot wire diameter 0.5mm Hot wire cold resistance 5.28Ω Hot wire power 0.26W/mm±4% Test time 0.01-999.99S can be set   Ignite time 0.01-999.99S Stop burning time 0.01-999.99S   Accessories Standard Accessories 1 pc  Hot wire 1 pc  Fixture 1.5metres  Current line 2.5metres  Exhaust pipe
Read More
Liquid Strike Through Time Tester

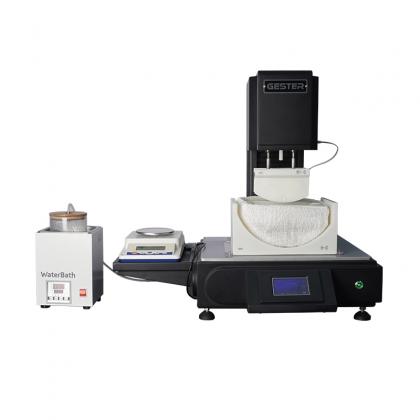

Liquid Strike-Through Tester GT-CN04
