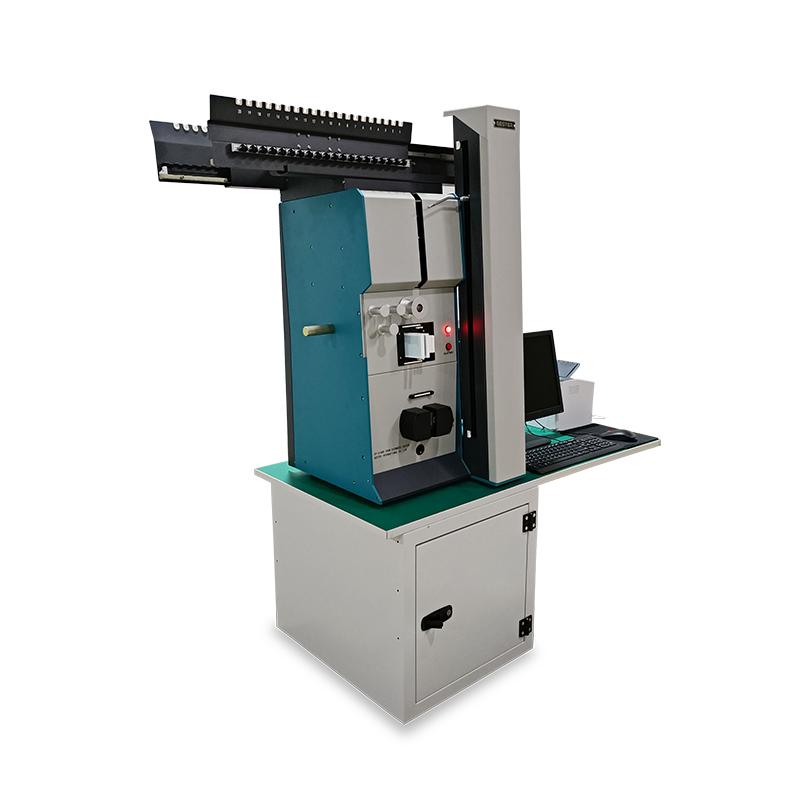

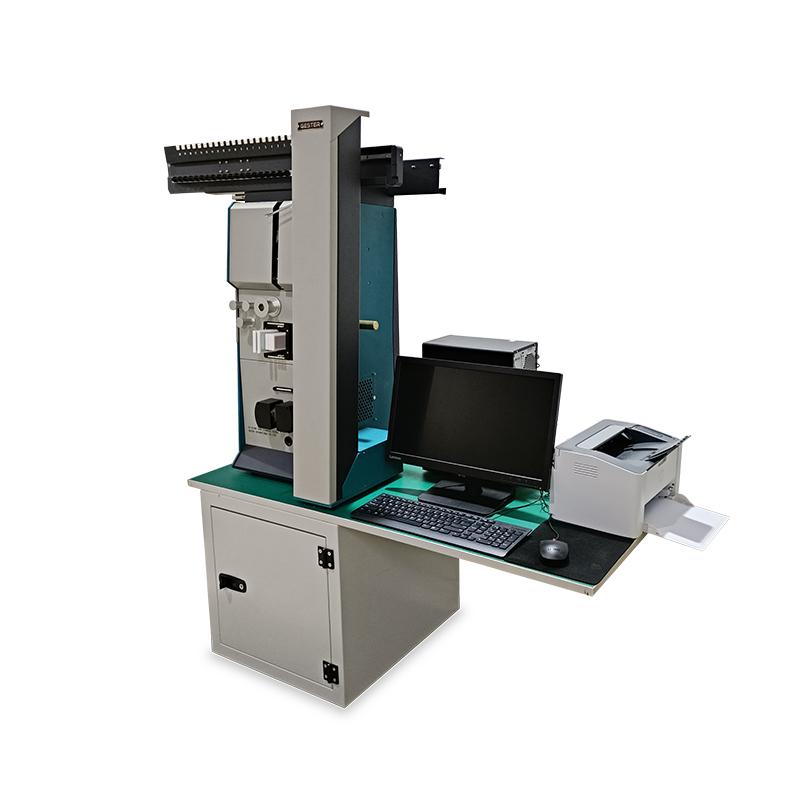

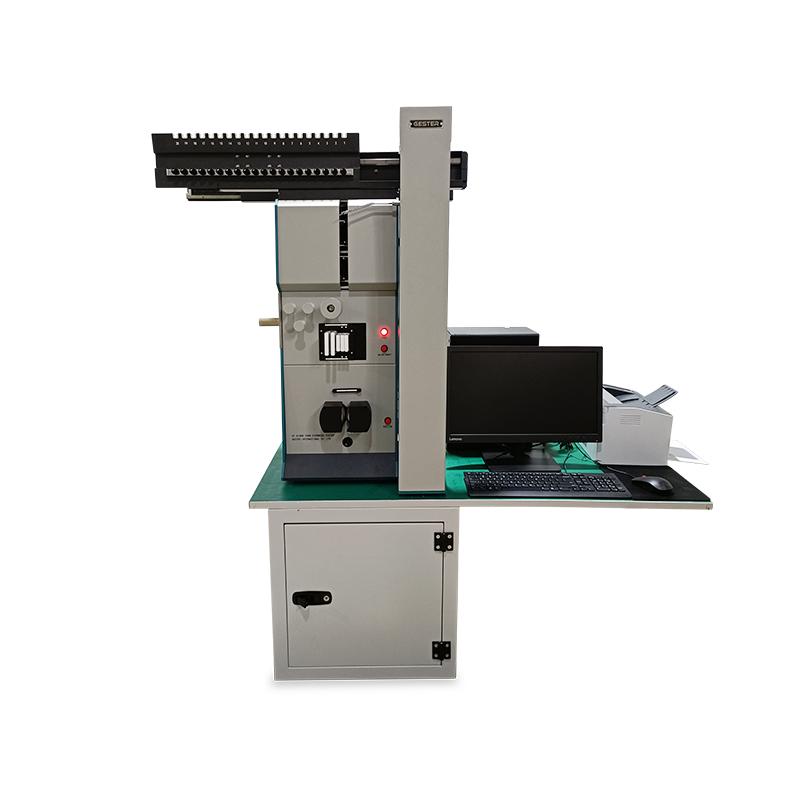

Automatic Yarn and Sliver Evenness Tester GT-A14HD

Automatic Yarn and Sliver Evenness Tester; It can be used to test evenness of yarns, roving, slivers which are spun with cotton, wool, flax and short synthetic fiber.

Brand:
GESTER
Item NO.:
GT-A14HD
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
30 Days

Inquire now

Product Detail

Automatic Yarn and Sliver Evenness Tester GT-A14HD

Product Introduction

Application:

Yarn Evenness Tester is a precision textile testing instrument integrating optical, mechanical, electronic and pneumatic technologies. It is used to test yarn linear density unevenness, surface hairiness and other indicators for comprehensive evaluation of yarn quality, and serves as essential testing equipment for quality inspection and control in textile manufacturers. It is applicable to pure-spun and blended yarns made from cotton, wool, silk, linen and staple chemical fibers.

Feature

Adopts both capacitive and photoelectric detection technologies to simultaneously measure linear density unevenness (mass variation) and yarn hairiness, enabling a more comprehensive and scientific evaluation of yarn quality.
Fully automatic measurement for spun yarns.
Real-time measurement of CVm%, Um%, H, SH and all types of fault values.
Supports 6 ranges of DR values and 3 ranges of △DR values to facilitate users’ analysis of abnormal long thick places and abnormal long thin places.
The yarn drawing system adopts a high-speed dual active drive mechanism, with a maximum testing speed of 800 m/min.
User-friendly interface; users may customize the colors of displayed graphs according to personal operating habits.
Generates unevenness curves of yarn evenness and hairiness, spectrograms, variance-length curves, linear density frequency distribution diagrams, and offset-threshold graphs.
The spectrogram is equipped with 170 channels, helping users accurately locate faults or defective sections.
Built-in expert analysis system for automatic diagnosis and analysis of each production process.
Equipped with special software for slub yarns to realize effective testing and analysis of slub yarn products.

Key Specifications

Model		GT-A14HD
Machine	Test speeds	4m/min, 8m/min, 25m/min, 50m/min, 100m/min, 200m/min, 400m/min, 800m/min
	Max. batch test times	≤20
	Statistical indicators	mean, max, min, cvb, Q95
	Input power supply	Voltage AC220V±10%, Frequency 50Hz/60Hz, Power consumption ≤350W
Capacitive test	Capacitive measuring cell	4 pcs
	Measurement range	1 tex ~ 12 ktex
	Coefficient of variation CVm%, Um%	Testing range: 0.01% ~ 99.99%
	Imperfection values	Thin : -30%, -40%, -50%, -60%
		Thick: +35%, +50%, +70%, +100%
		Neps : +140%, +200%, +280%, +400%
	DR value	DR(20cm,+35%)、DR(20cm,-30%)、DR(1m,+5%)、DR(1m,-5%)、DR(1m,+15%)
	DR value	DR(1m,-10%)、△DR(1m)%、△DR(20cm)%、△DR(1cm)%
	Spectrogram range	1cm–2937 m (170 standard channels, 340 fine channels)
	Variance-length curve cut length	1 cm–1472 m
	Linear density frequency diagram	2 diagrams covering -100%~+100% and above +100%
	Offset rate threshold diagram	deviation rate curves with reference lengths of 1 cm, 10 cm, 20 cm, 50 cm, 1 m, thresholds from 0% to 50%
Hairiness test	Measurement range	1tex~160tex
	Hairiness level & variation	H value, SH value
	Spectrogram range	1 cm–2937 m (170 channels)
	Variance-length curve cut length	1 cm–1472 m
	Offset rate threshold diagram	deviation rate curves with reference lengths of 1 cm, 10 cm, 20 cm, 50 cm, 1 m, thresholds from 0% to 50%
