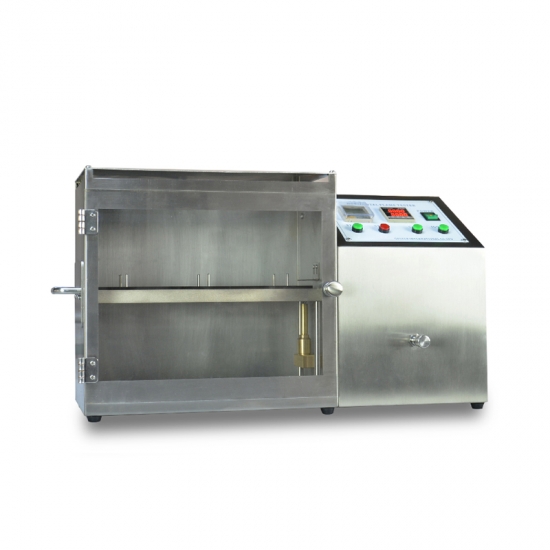

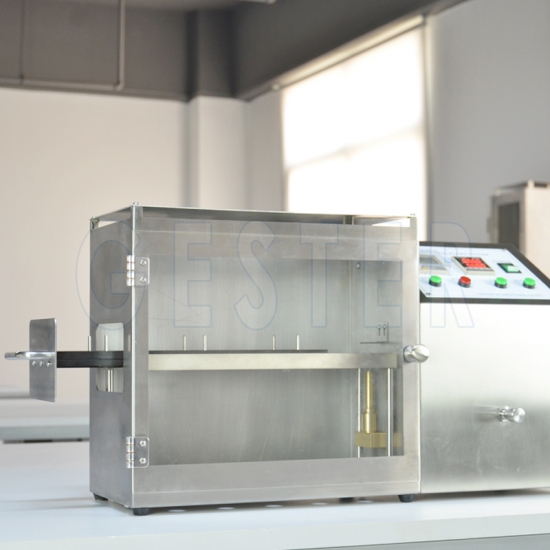

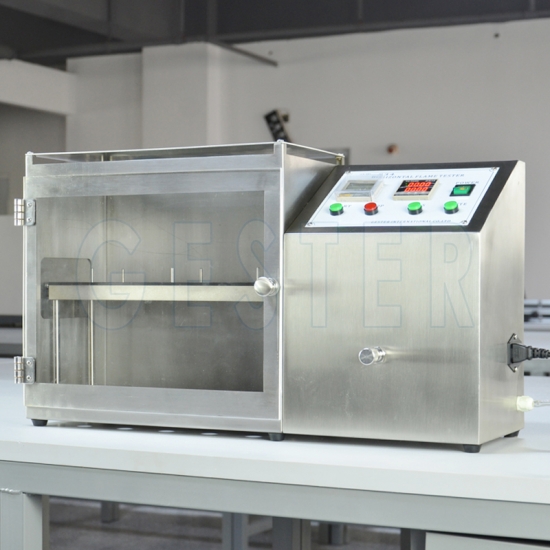

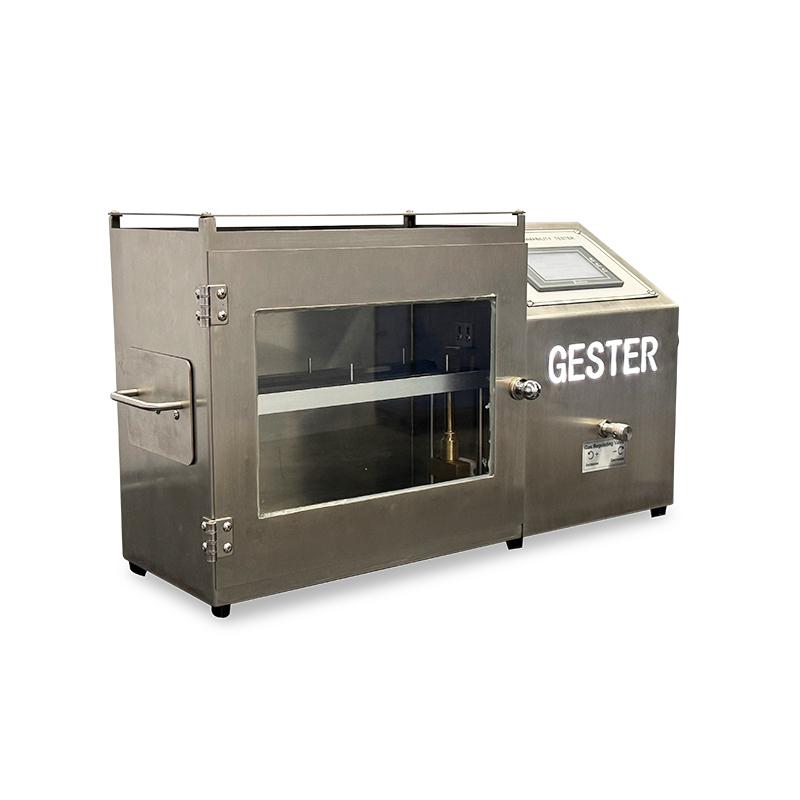

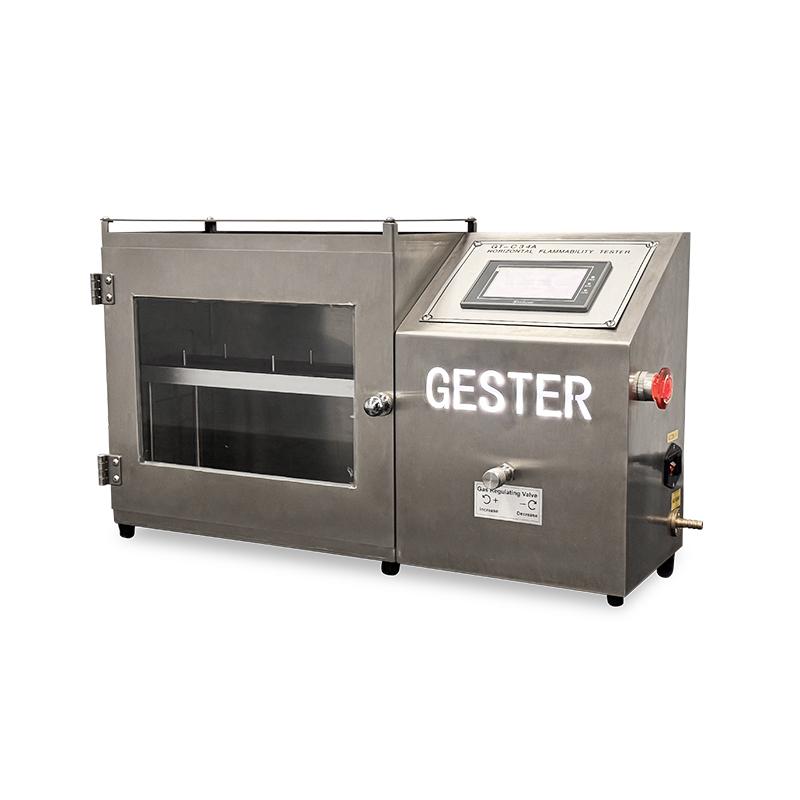

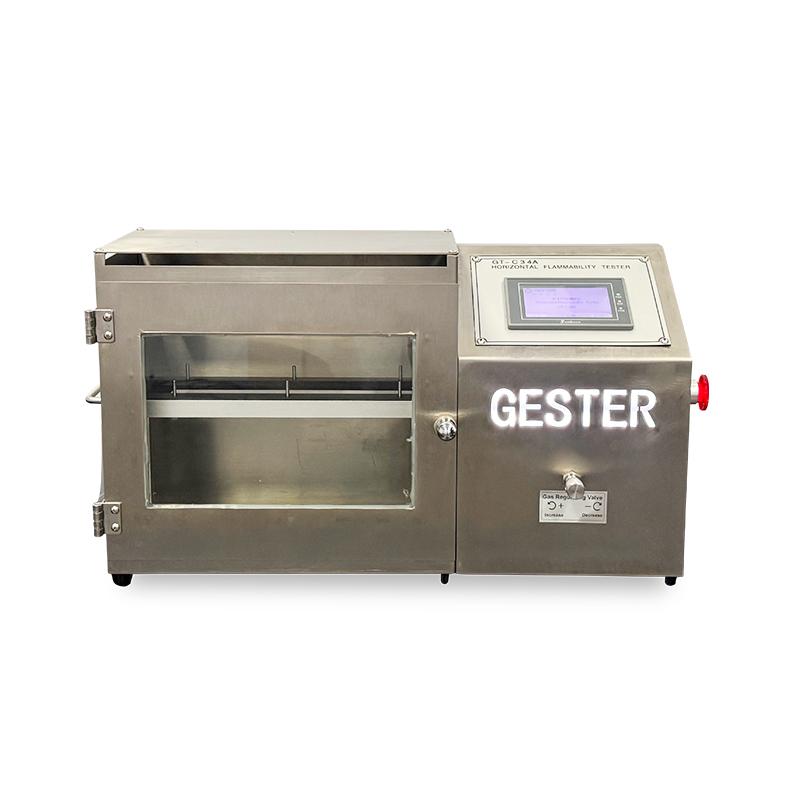

The GESTER GT-C34A Horizontal Flammability Tester is an industry-standard laboratory combustion chamber engineered to evaluate the horizontal burning rate, flame resistance, and flame propagation of automotive interior materials, plastic sheets, rubbers, and technical textiles. Built with a high-grade stainless steel test cabinet, standardized Bunsen burner system, fine-needle gas pressure valve, and dual digital timing display (0.01s resolution), the GT-C34A guarantees strict compliance and exceptional test repeatability.
Fully conforming to international benchmarks including ISO 3795, FMVSS 302, SAE J369, and ASTM D5132, it serves as an indispensable compliance instrument for automotive OEMs, tier-1 interior suppliers, plastics manufacturers, and certified safety testing laboratories worldwide.
Brand:
GESTERItem NO.:
GT-C34AOrder(MOQ):
1Payment:
T/T, L/CShipping Port:
China PortLead Time：
Have in stockProduct Detail
|
Application of horizontal flame chamber: Horizontal Flammability Tester; Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles ( for example, passenger cars, lorries/trucks, estate cars, coaches ), and of tractors and machinery for agriculture and forestry, after exposure to a small flame. Standards of horizontal flame chamber: ASTM D5132, ISO 3795, FMVSS 302 , JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953, SAE J369, GMW3232
|
|
Time range |
0-999.9s |
|
Time resolution |
0.01s |
|
Ignition time |
15s |
|

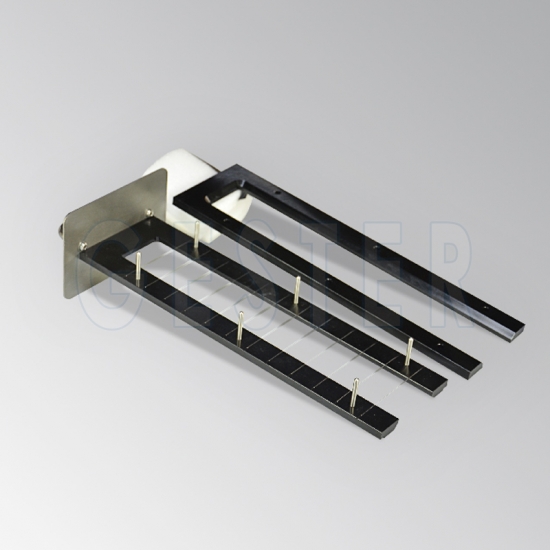

Specimen fixture |
U shape, inner size: 330×50mm |
|
Size of specimen |
356 x 100mm thickness less than 13mm |
|

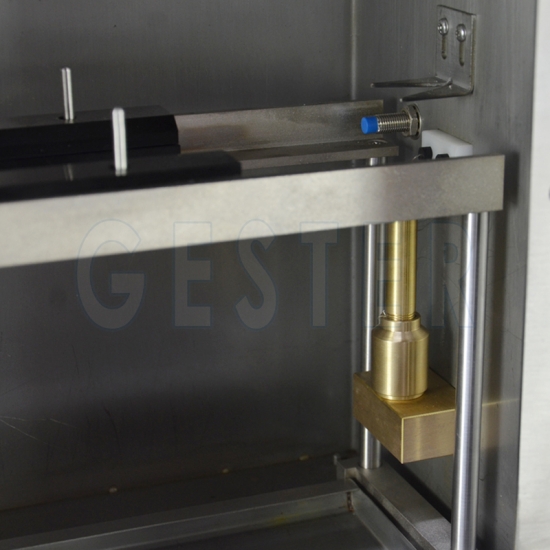

Burner angle |
Vertical |
|
Inner diameter of burner head |
￠9.5mm |
|
Ignition height (burner top to specimen ) |
19mm |
|
Flame height |
38mm+/-2 |
|
Power supply |
AC 220V 50/60HZ |
|
Dimensions |
450 x 310 x 510mm (L x W x H) |
|
Weight |
30kg |
|
Standard accessories |
1pc |
Sample holder |
|
1pc |
Power line |
Q1: What core materials can be tested on the GESTER GT-C34A?
A: The GT-C34A is engineered for a wide variety of flexible and rigid sheet materials, including automotive interior parts (seat covers, carpets, headliners, door trims), plastic sheets and films (per ASTM D5132), synthetic leather, rubber compounds, and woven/knitted textiles (per FZ/T 01028 and GB/T 20953).
Q2: How does the GT-C34A satisfy OEM-specific requirements like General Motors GMW3232?
A: GMW3232 mandates strict U-frame dimensions, 38mm flame height calibration, and standardized burning distance tracking. The GT-C34A provides exact physical tolerances, draught-free airflow design, and 0.1s digital timing accuracy to fully comply with GMW3232 and FMVSS 302 testing protocols.
Q3: Does the GT-C34A support horizontal flammability testing for textiles?
A: Yes. In addition to automotive plastics and interiors, the GT-C34A strictly conforms to FZ/T 01028 (Textiles - Determination of burning behavior - Horizontal method) and GB/T 20953, making it suitable for evaluating horizontal flame spread across woven, knitted, and coated fabrics.
Q4: How are thin films or easily melting materials supported during testing?
A: For materials that sag or melt when exposed to heat (such as thin plastic films, light textiles, or soft foams), thin heat-resistant stainless steel support wires can be mounted across the U-frame as specified in GB/T 8410 and FMVSS 302.
