Brand:
GESTERItem NO.:
GT-C32Order(MOQ):
1Payment:
L/C T/TShipping Port:
China PortLead Time：
10-30 DaysProduct Detail

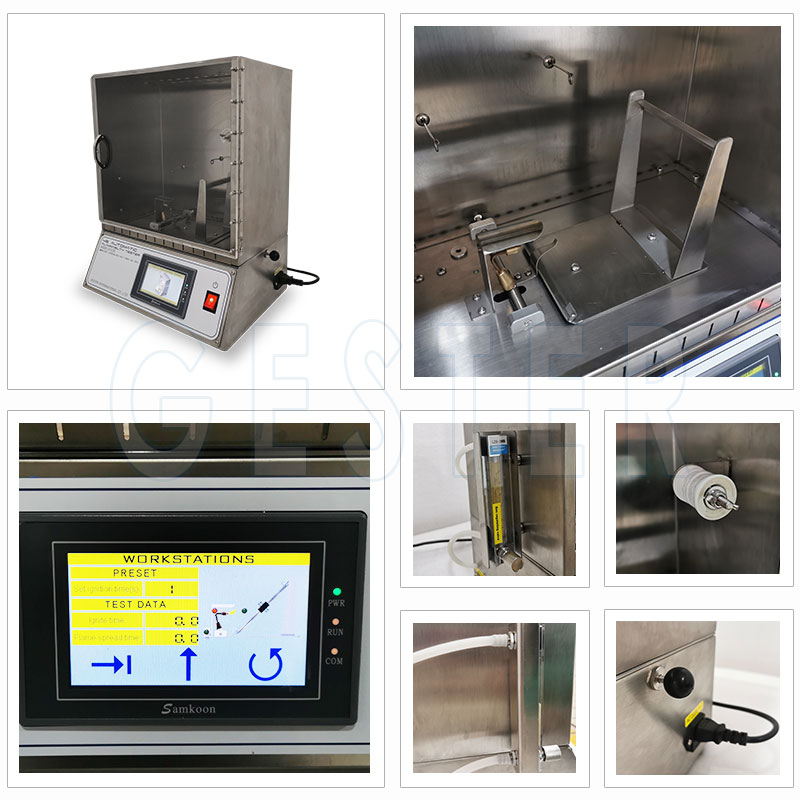

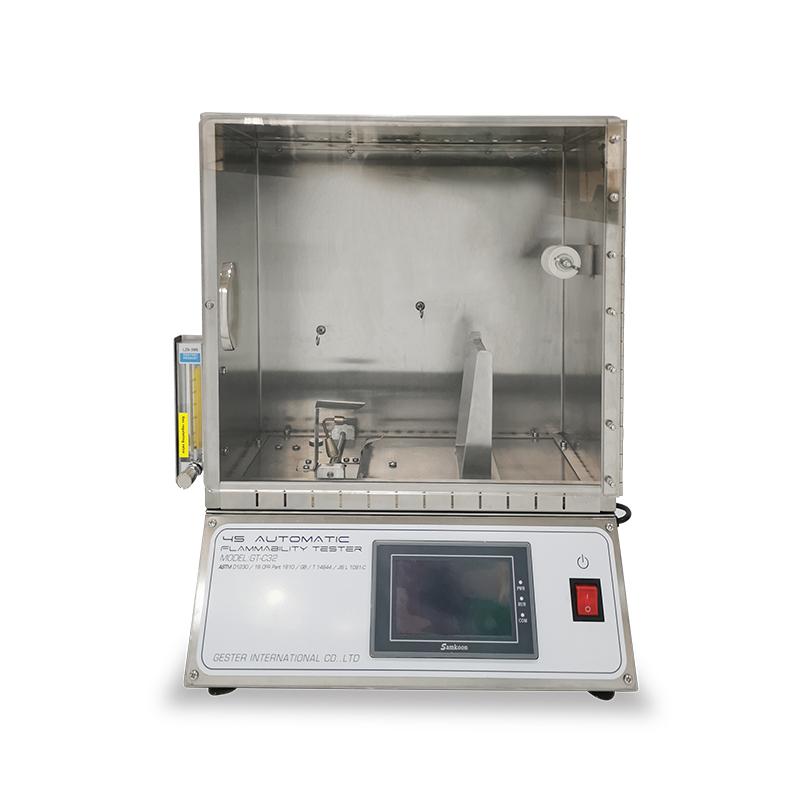

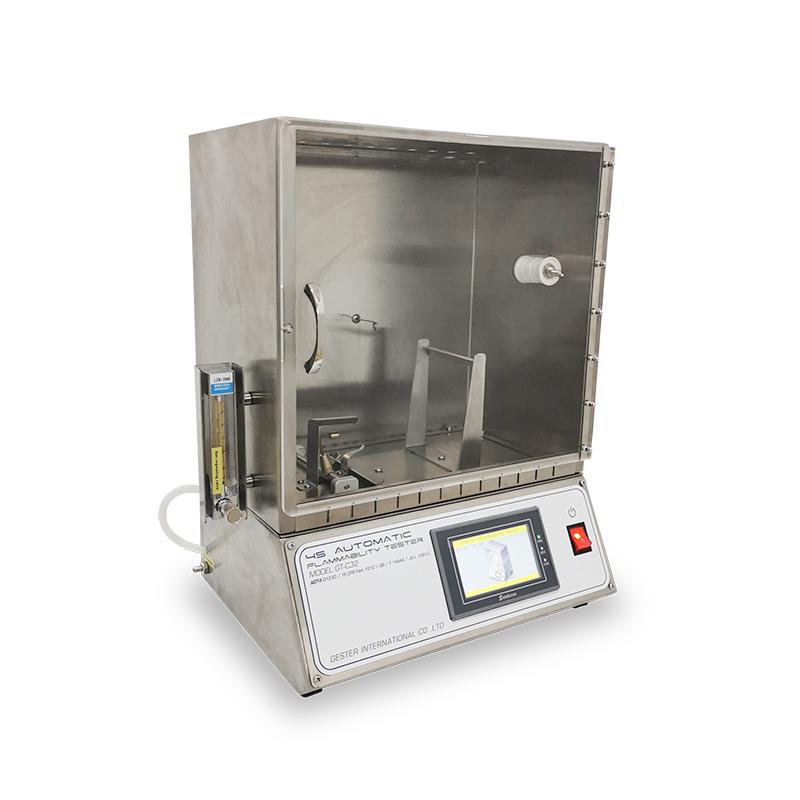

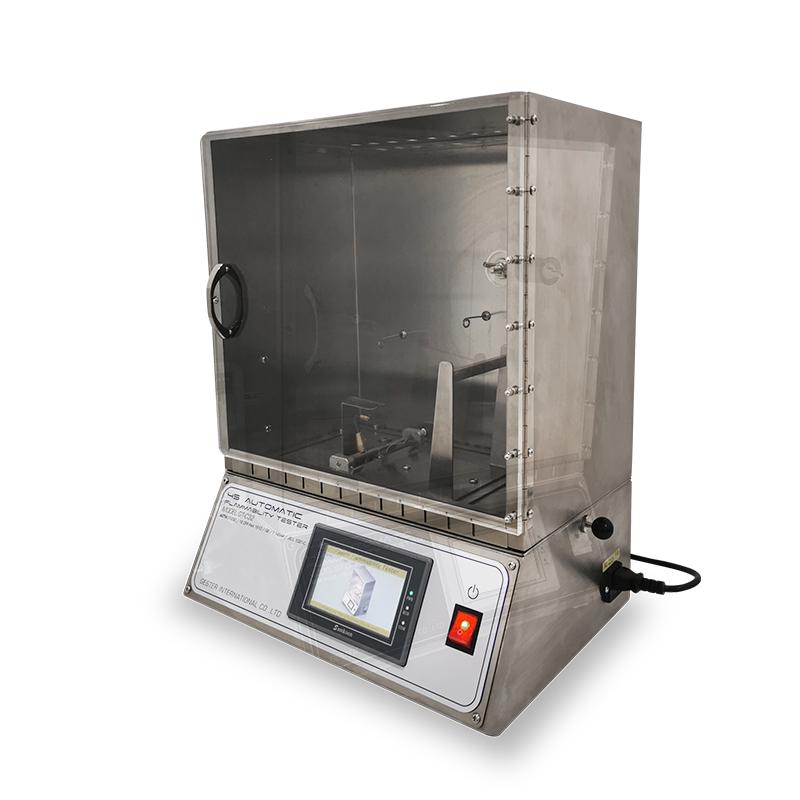

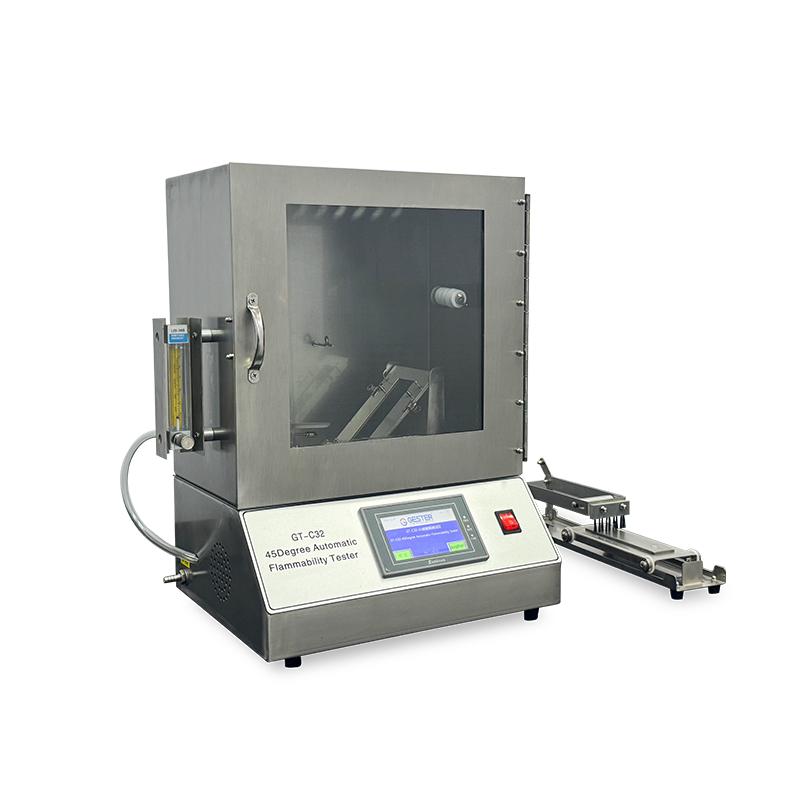

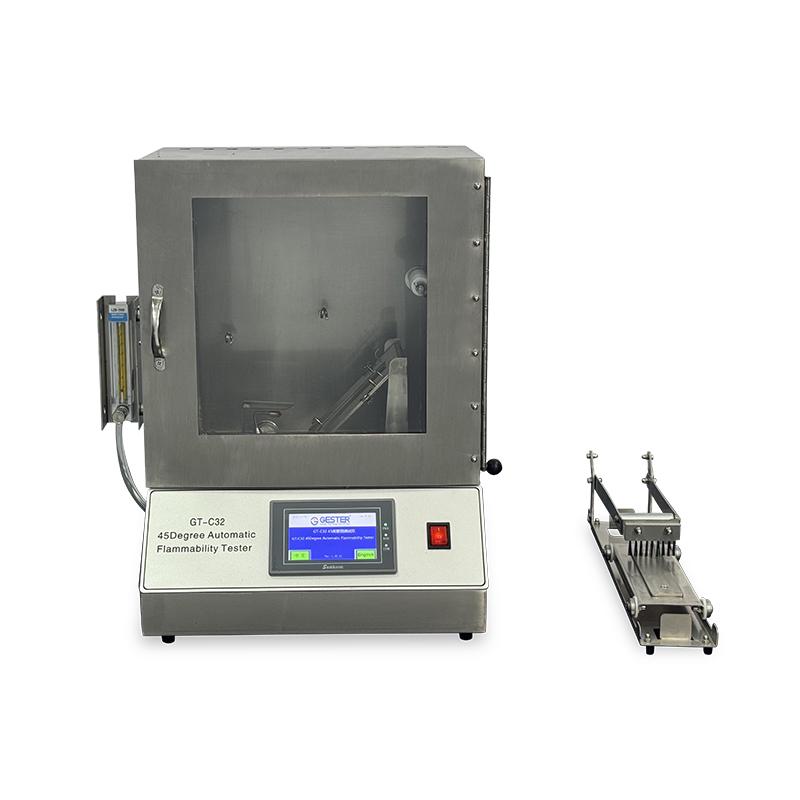

45 Degree Automatic Flammability Tester | Inclined Plane Textile Flammability Testing Equipment
ASTM D 1230, ASTM F963, 16 CFR -1610, CALIF TB 117, CAN/CGSB 4.2 No 27.5, GB/T 14644
Industry Applications:
Apparel & Garment Manufacturing: Woven/knitted fabrics, outerwear, dresses, linings.
Children’s Products & Plush Toys: Soft toys, plush fabrics, costumes, play tents.
Home Textiles & Soft Furnishings: Curtains, upholstery, cushion covers, bedding.
Third-Party Testing Laboratories: Independent commercial labs and inspection agencies
Textile R&D & Academic Institutions: Material science labs, chemical additive developers, textile universities.
Model
GT-C32
Time display
0-99.9S
Ignition time
0-99.0S
Resolving capability
0.1S

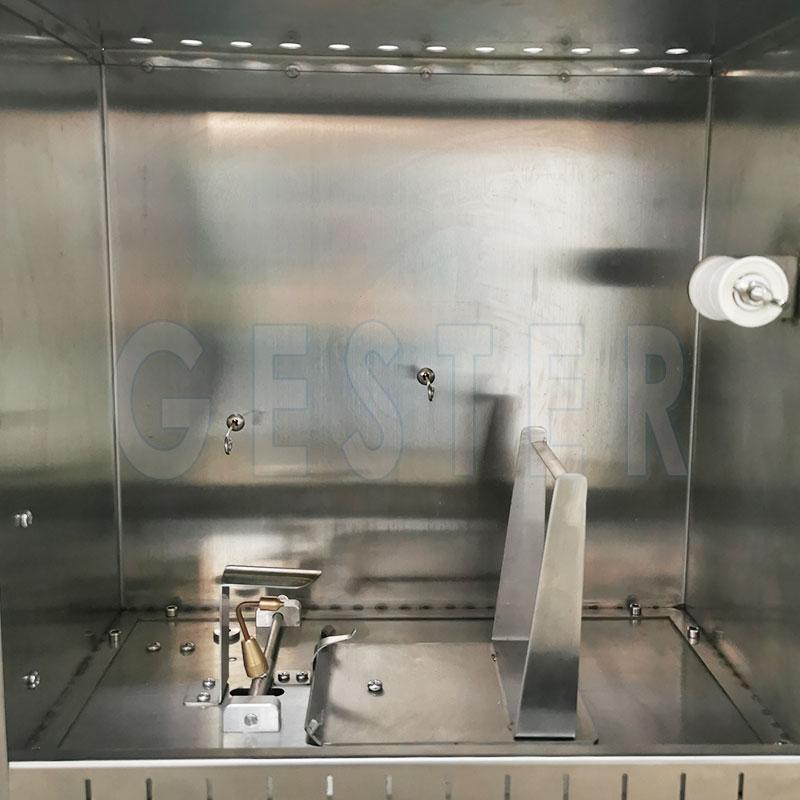

Specimen holder angle
45degree
Distance between nozzle & specimen
8mm
Distance between nozzle & label line
127mm
Brush load
150gf
Size of specimen
150x 50mm
Power supply
AC 220V 50/60HZ
Dimensions
420 x 260 x 540mm (L x W x H)
Weight
30kg
Accessories
|
Standard accessories |
1pc |
Gas feed device |
|
1pc |
Label cotton thread |
|
|
5pcs |
Sample holder |
|
|
1pc |
Brushing device |
|
|
1pc |
Flame measuring scale |
|
|
1pc |
Hammer |
|
|
1pc |
Power line |
|
|
Optional accessories |
Optional |
|
|
Optional |
Optional GT-D10 Drying Oven |
Q1: What is the primary purpose of the GESTER GT-C32 45 Degree Flammability Tester?
A: The GT-C32 is used to determine the burning characteristics and flame spread speed of textile fabrics under controlled 45-degree inclined plane conditions. It evaluates apparel fabrics as they reach consumers to ensure compliance with international fire safety regulations.
Q2: Why is specimen brushing necessary prior to the 45-degree flammability test?
A: According to standards such as 16 CFR Part 1610 and ASTM D1230, napped or raised-fiber fabrics (such as fleece, terrycloth, or velvet) must be conditioned using the standardized 150gf brush load mechanism to raise the surface pile consistently before ignition testing.
Q3: What is the ignition and timing display precision of the GT-C32?
A: The machine features a high-precision digital time display with an ignition time range of 0–99.0 seconds and a flame timing display of 0–99.9 seconds, operating with a resolving capability of 0.1 seconds to ensure precise flame spread measurement.
Q4: What gas supply is required to operate the GT-C32 safely?

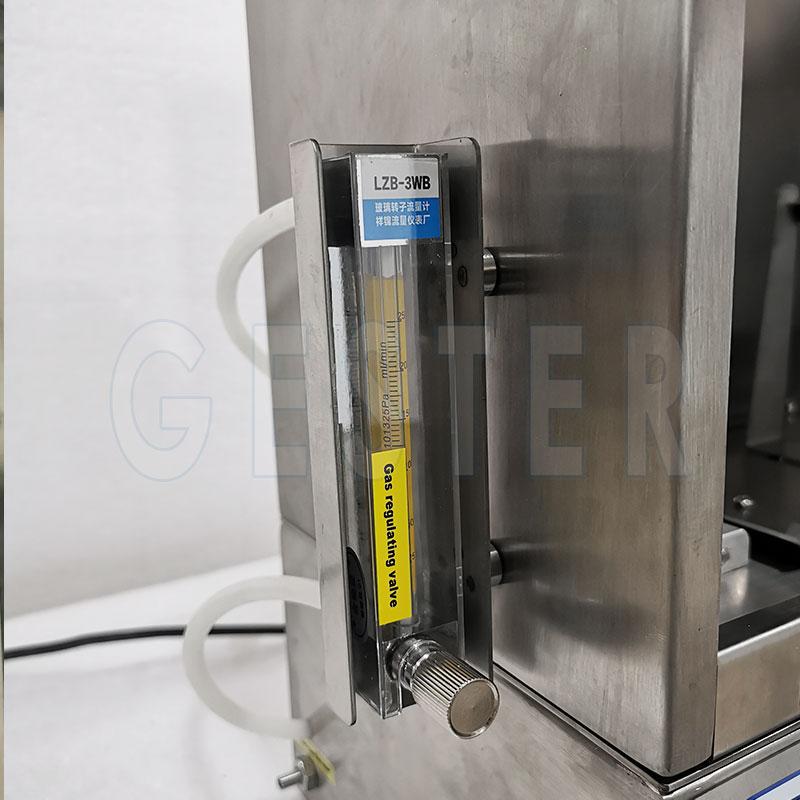

A: The GT-C32 is connected via its standardized gas feed device to laboratory-grade butane or propane gas tanks, equipped with fine pressure control valves to deliver consistent, regulated test flame dimensions.
Q5: Can the GT-C32 be used for testing children's sleepwear or protective clothing? If not, which GESTER product should be used?
A: No. The GT-C32 45-degree tester is designed for general apparel fabrics. Children's sleepwear and protective clothing require strict vertical flammability testing. For these applications, GESTER provides dedicated vertical flammability testers:
Vertical Flammability Chamber GT-C35: Designed specifically for children's sleepwear in compliance with 16 CFR 1615/1616 and ASTM D6413.
Vertical Combustibility Tester GT-C35B: Designed for protective clothing and European safety standards, compliant with ISO 15025, ISO 14116, ISO 6940/6941, and EN 1103.
