Hydrolysis & Water Vapor Permeability Tester GT-KD06

Hydrolysis & Water Vapor Permeability Tester Standards:EN ISO 20344; EN 344-1; ISO 5423 AS/NZS 2210.2; EN ISO 22288; SATRA TM25;GB/T 20991; GB20265

  • Brand:

    GESTER
  • Item NO.:

    GT-KD06
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Product Detail

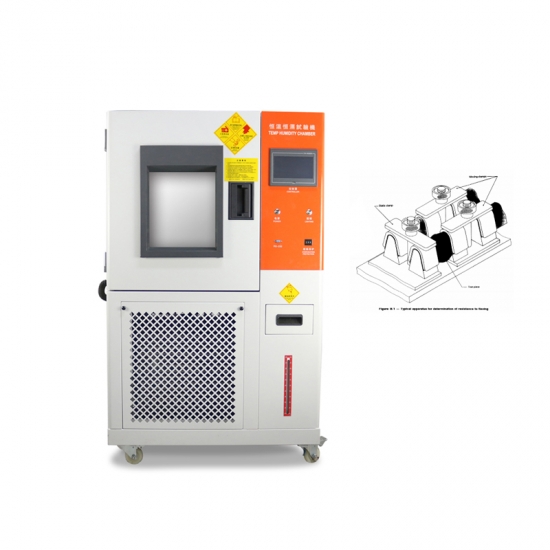

GT-KD06 Hydrolysis & Water Vapor Permeability Tester


Product Introduction

Application:

1. Upper Hydrolysis Test and Flexing Test: to determine the propensity for materials to crack or otherwise fail at flexing creases.

2. Water Vapor Permeability Test: Under the standard stipulated (23±2)°C and the (50±5)% RH environment, to test water vapor permeability for vamp and upper shoe materials (including surface and lining)

Standards:

EN ISO 20344 Section 6.6.2 and 6.8 and 6.10; EN 344-1 Section 5.13; ISO 5423 section 5.2

 AS/NZS 2210.2 Section 6.6.2 and 6.8 and 6.10; EN ISO 22288; SATRA TM25

GB/T 20991 Section 6.6.2 and 6.8 and 6.10; GB20265 section 4.1

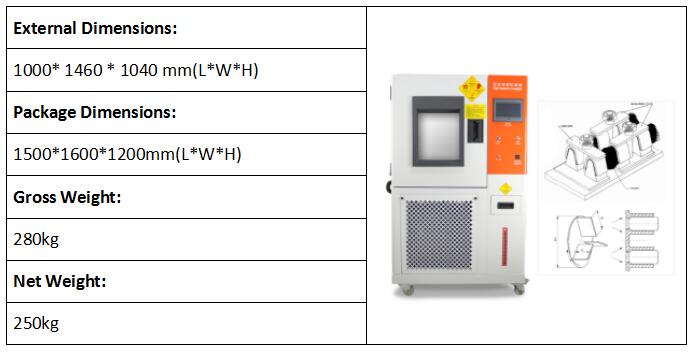

Dimensions

Hydrolisis & Water Vapor Permeability Tester

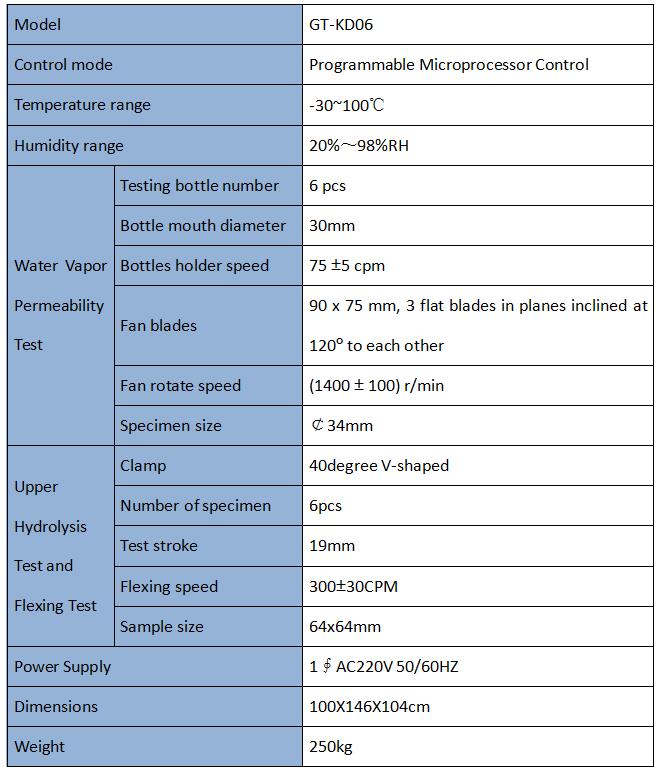

Key Specifications


Hydrolisis & Water Vapor Permeability Tester
