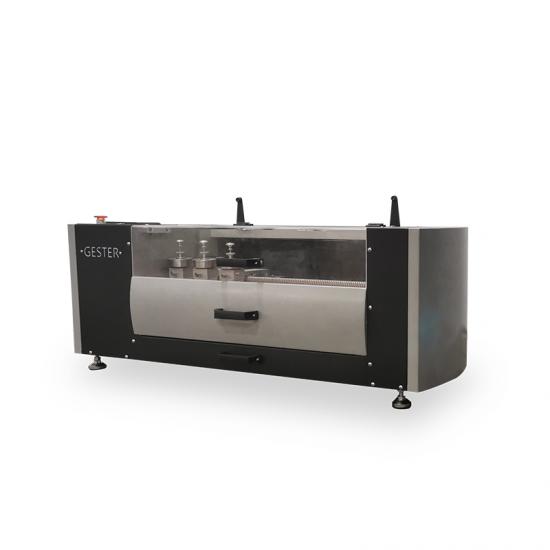

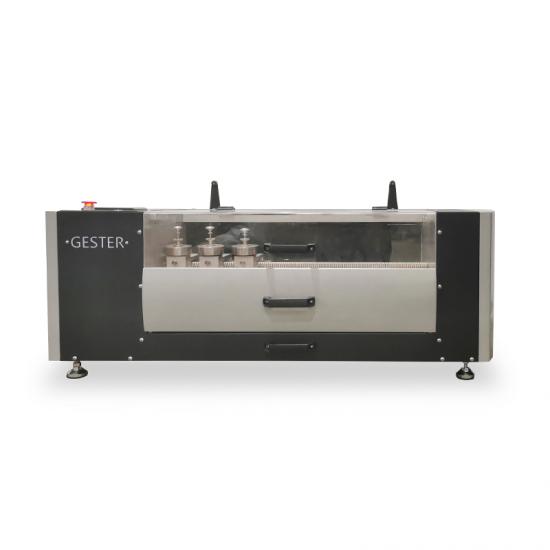

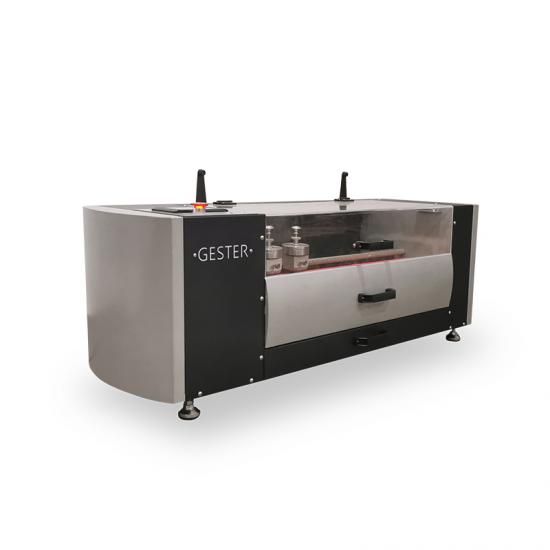

Touch screen controlled DIN Abrasion Tester GT-KB03B

DIN Abrasion Tester factory direct sale, fast delivery.


  • Brand:

    GESTER
  • Item NO.:

    GT-KB03B
  • Order(MOQ):

    1
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    In stock, Fast Delivery
  • Product Detail

Touch screen controlled DIN Abrasion Tester GT-KB03B



Product Introduction

Application:

DIN Abrasion Tester is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.


Principle

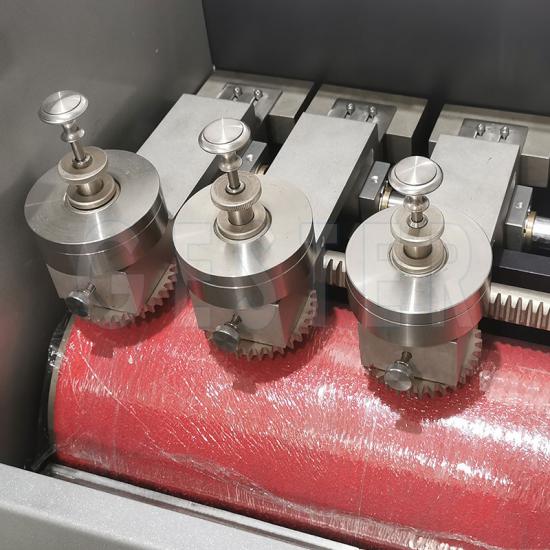

Rubber Abrasion Tester under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.


Feature

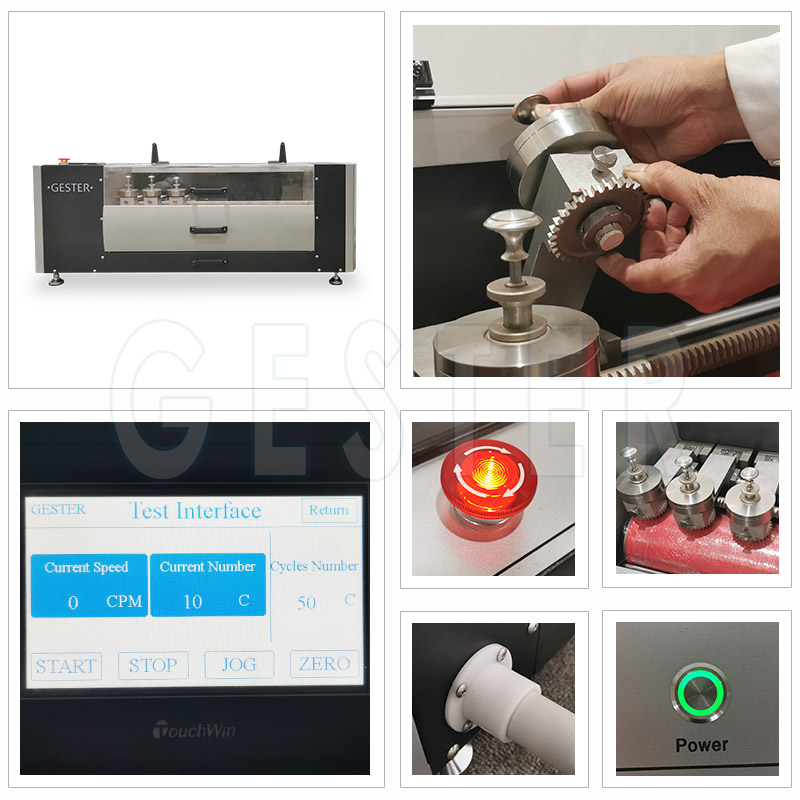

  • DIN Abrasion Tester body paint baking processed, easy for maintenance;
  • Color touch-screen control, digital counting, automatically stop after test finished;
  • Din Abrasion Resistance Tester equipped with vacuum suction port device,automatically clean dust during test.


Key Specifications


Model

GT-KB03B-1

GT-KB03B-3

Test positions

1

3

Control Mode

Touch screen controlled

Diameter of wear wheel

150mm

Specimen dimension

ø16.2 mm x thickness 6-10 mm

Specimen moving speed

4.2 mm/r

Weights

Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)

Wear wheel speed

40±1rpm

Inclination angle

3°, Test piece support shaft of test piece becomes vertical angle with roller.

Grit size of sandpaper

#60

Roller length

460mm

Wear stroke

40m

Power supply

1∮AC 220V 50/60HZ 3A

Standards

DIN-53516, JIS-K6369, JIS K6264-2, GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867,

EN ISO 20344-2021 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A,

ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770

Accessories:

Standard accessories

1Set

 2.5N weights

1Set

 5N weights

1pc

 P60# standard abrasive paper

1pc

 Standard cutting die

1pc

 Metal blob(Grinding head)

1pc

 2mm Guage

1pc

 Power line

Optional accessories

Optional

 GT-G203H Electronic balance (210g,accuracy 1mg)

Optional

 Standard rubber



din abrasion resistance tester

Application Industry of DIN abrasion tester

DIN Abrasion tester GT-KB03
