ICI Pilling Box Tester is to determine the surface pilling and snagging properties of both woven and knitted materials.
Brand:
GESTERItem NO.:
GT-C18Order(MOQ):
1Payment:
T/T, L/CShipping Port:
China PortLead Time：
10-30 daysProduct Detail

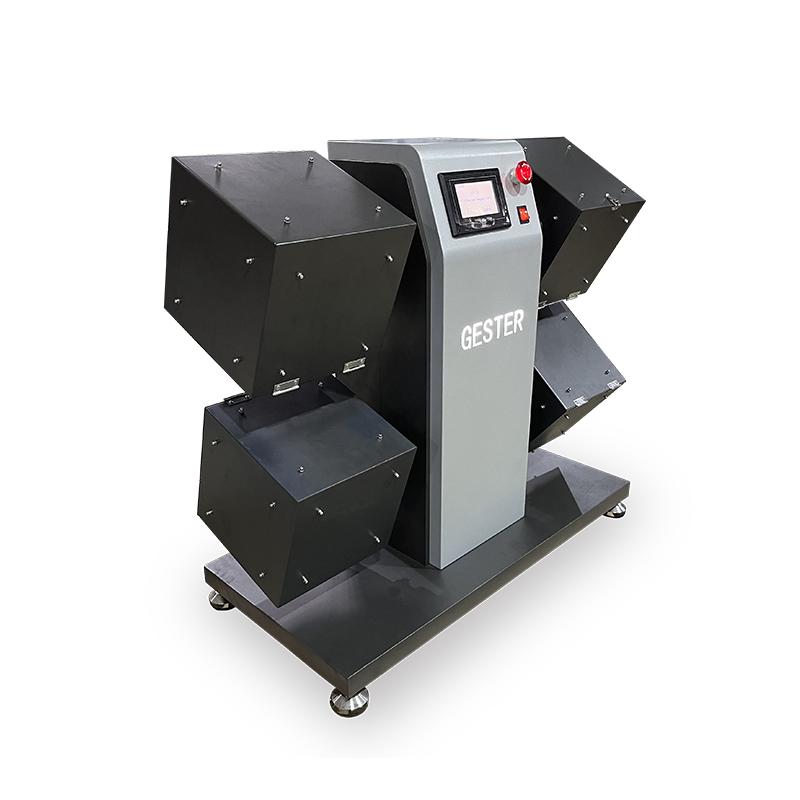

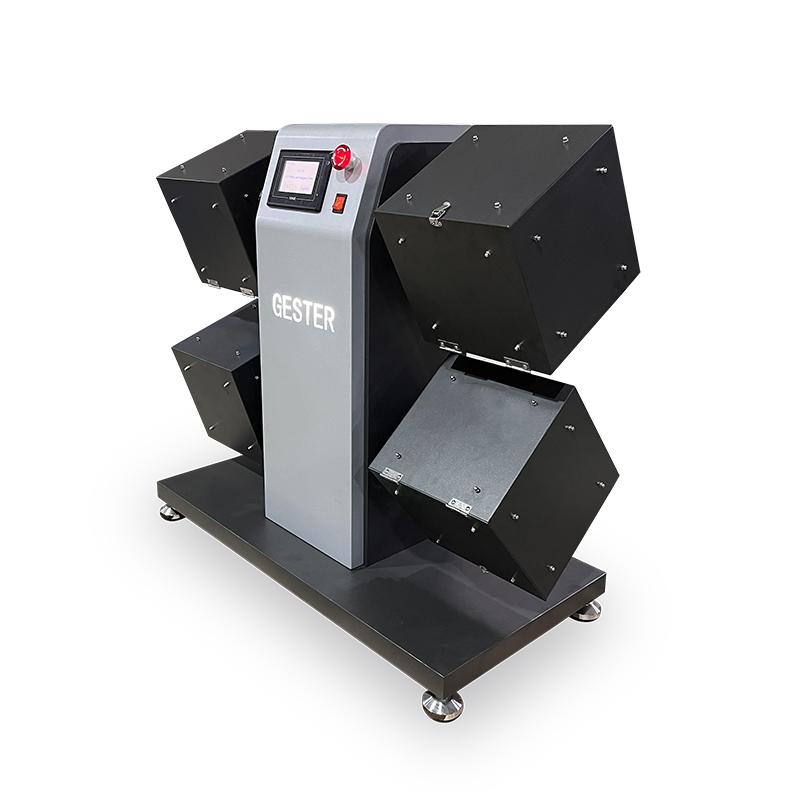

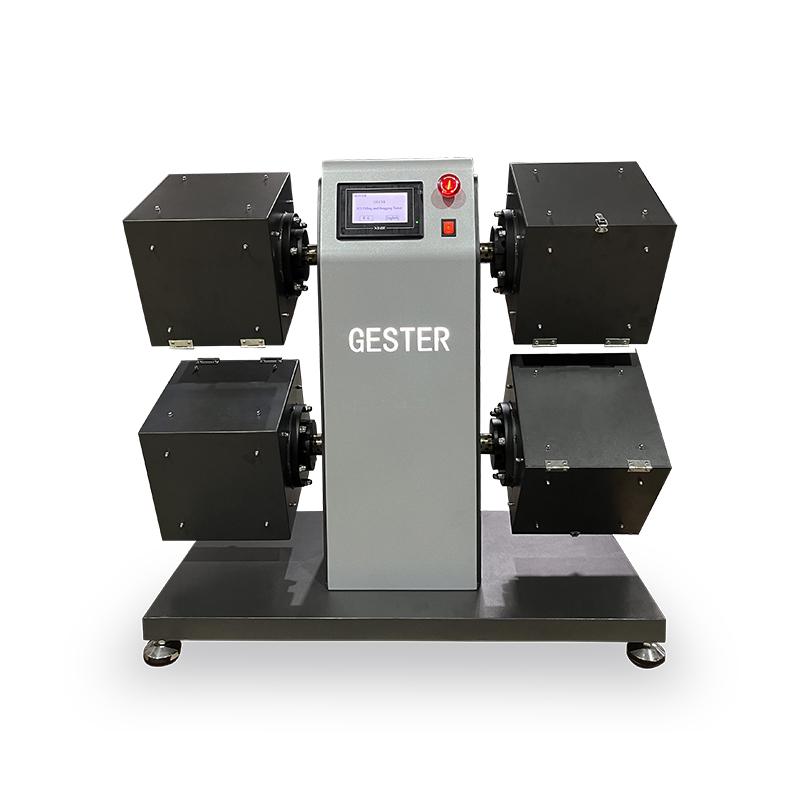

ICI Pilling Box Tester GT-C18
|
Application:
ICI Pilling Box Tester is used to rapidly replicate pilling on fabrics in a fraction of the time due to normal wear. then determine surface pilling and snagging properties of both in woven and knitted fabrics.
ICI Pilling Tester complies with ISO12945-1, BS 5811 etc.
ICI pilling tester uses a universal drive system with 2, 4 or 9 position, electronic digital counter, and sample mounting fixture. The machine accepts ICI Pilling boxes and ICI pilling drums.

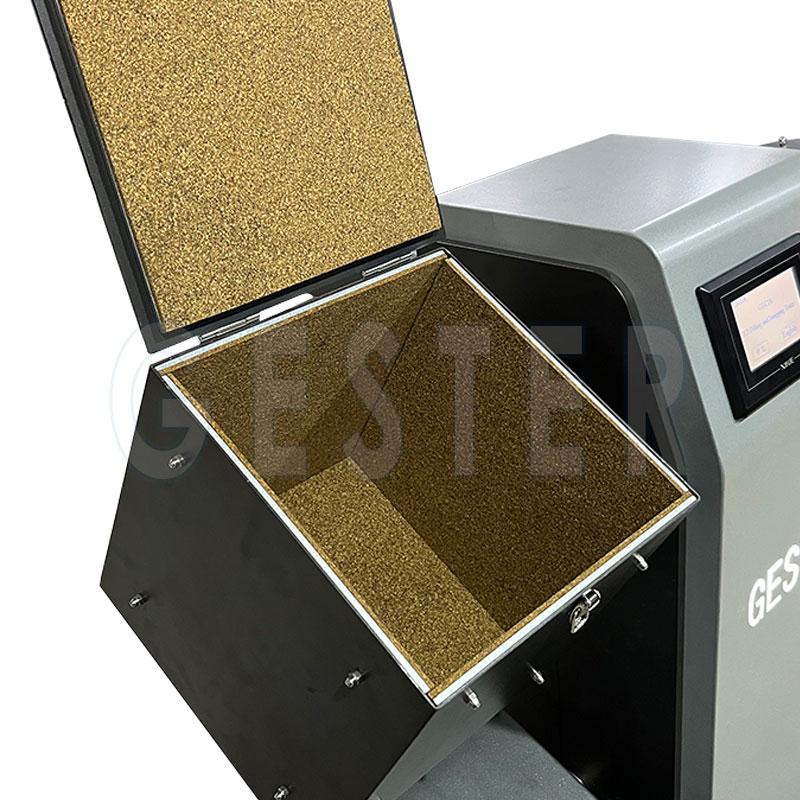

Specimens are mounted on polyurethane tubes and tumbled randomly under defined conditions in a cork lined box. Pilling is assessed visually after a defined period of tumbling. Contact us for more information about ICI pilling test method. Ici Pilling Box Standards:
GB/T4802.3, ISO 12945.1, BS5811, IWS TM152, BS 8479, JIS L1076, L1058, M&S P18A, P18B
|
|
Model |
GT-C18A |
GT-C18B |
GT-C18C |
|
Number of pilling boxes |
2 Boxes |
4 Boxes |
9 Boxes |
|
Type of pilling boxes |
Selectable |
||
|
Rotational speed |
1-70rpm (Adjustable) |
||
|
Drive mode |
Servo motor |
||
|
Controller |
Touch screen control |
||
|
Count range |
0-99999 |
||
|
Power supply |
AC 220V 50/60HZ |
||
|
Dimensions (L x W x H) |
120x 50x 50 cm |
120x 50x80 cm |
140x 50x 160 cm |
|
Weight |
80kg |
140kg |
180kg |
Pilling Boxes
|
Square Pilling Test Box |
||
|
Model |
GT-C18-ISO |
|
|
Inner size |
235*235mm(without liner) |
|
|
Standards |
BS EN ISO 12945-1, BS 5811, GB/T4802.3 |
|
|
Standard accessories |
6pcs /each box |
Cork lining |
|
4pcs /each box |
Polyurethane sample tubes |
|
|
1pc/each machine |
Sample template 125*125mm |
|
|
1pc/each machine |
Pilling specimen mounting device |
|
|
1pc/each machine |
Power line |
|
|
Square Snagging Test Box |
||
|
Model |
GT-C18-JIS |
|
|
Inner size |
230*230mm(with liner) |
|
|
Standards |
JIS L1058-2021 Method D-2 |
|
|
Standard accessories |
6pcs /each box |
Cork lining |
|
4pcs /each box |
Polyurethane sample tubes |
|
|
6pcs /each box |
Snagging pin |
|
|
1pc/each machine |
Sample template 100*120mm |
|
|
1pc/each machine |
Pilling specimen mounting device |
|
|
1pc/each machine |
Power line |
|
|
Octagon Snagging Test Box |
||
|
Model |
GT-C18-BS |
|
|
Inner size |
opposite side: 224.5mm，depth: 228mm |
|
|
Snagging rod |
4pcs, 20 needles/rod, needle distance:10mm |
|
|
Snagging needle |
Dia. Φ1mm, Sharp edge length: 1.5mm, Outer length:5mm, hardness: 58 HRC |
|
|
Standards |
BS 8479 |
|
|
Standard accessories |
4pcs /each box |
Woven wool felts 70*110mm |
|
4pcs /each box |
Polyurethane sample tubes |
|
|
6pcs /each box |
Locking rings 88.5*25*2.5mm |
|
|
4pcs /each box |
Snagging rods |
|
|
1pc/each machine |
Sample template 140*140mm |
|
|
1pc/each machine |
Power line |
|
|
Round Pilling Test Box |
||
|
Model |
GT-C18-M&S |
|
|
Inner size |
Inner Dia.: Φ303mm, depth: 168mm, steps height: 25mm |
|
|
Standards |
M&S P18A, P18B |
|
|
Standard accessories |
1pc/each box |
Steps |
|
1pc/each machine |
Power line |
|
Accessories
|
Optional accessories |
Optional |
Standard photographs |
|
Optional |
GT-C78 Pilling Assessment Box
|
