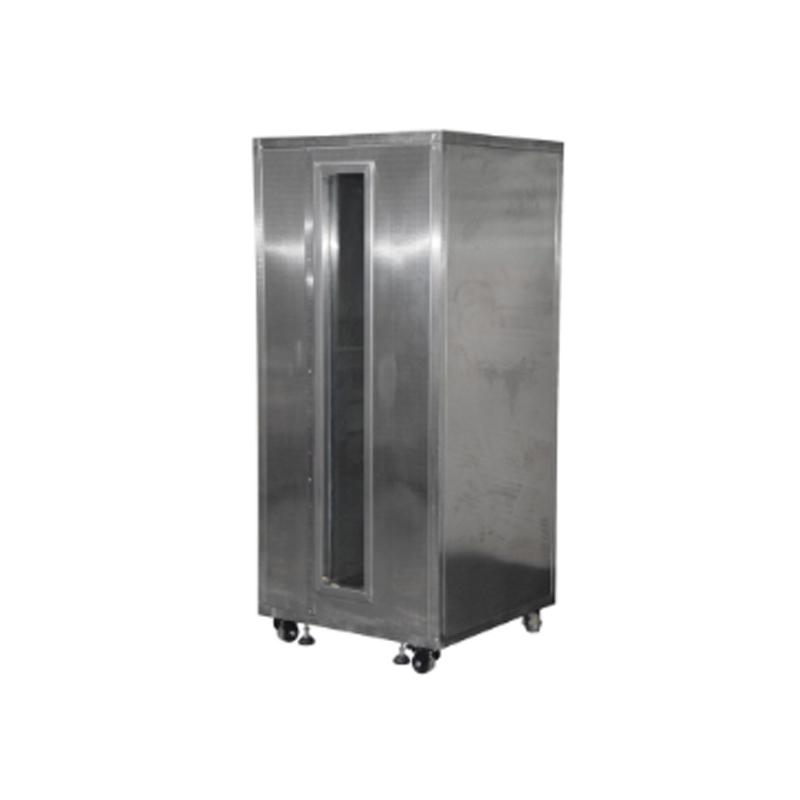

IPX7 Water Immersion Test Chamber GT-F64

Brand:
GESTER
Item NO.:
GT-F64
Order(MOQ):
1
Lead Time：
15-30 Days

Inquire now

Product Detail

IPX7 Water Immersion Test Chamber GT-F64

Product Introduction

Application:

The immersion tester is designed to evaluate the performance of electrical and electronic products, specifically their enclosures and seals, verify whether it can ensure proper functioning of equipment and components under immersion conditions.

Standards:

GB 2423,38, IPX7 standard

Key Specifications

Model	GT-F64
Inside dimension (W×H×D)	600×600×1200mm (Customizable to 1000L)
Container Material	Stainless steel square tube Transparent tempered glass
Container Material	Stainless steel square tube and transparent tempered glass
Water Level Scale	0-1200mm
Bottom Casters	4pcs, 3-inch PU Casters
Water Level Display	Graduated steel ruler indication for water level
Lifting Mechanism	Manual chain hoist
Lifting Device	Portable stainless steel basket
Basket Dimensions	400×400mm
Perimeter Reinforcement	1.2 mm square tube
Basket Load Capacity	10kg
Operating Requirements	User provide a water source and a drainage pipe
Note	For IPX7 immersion testing, the distance from the top surface of the sample to the water surface shall be 150 mm.
