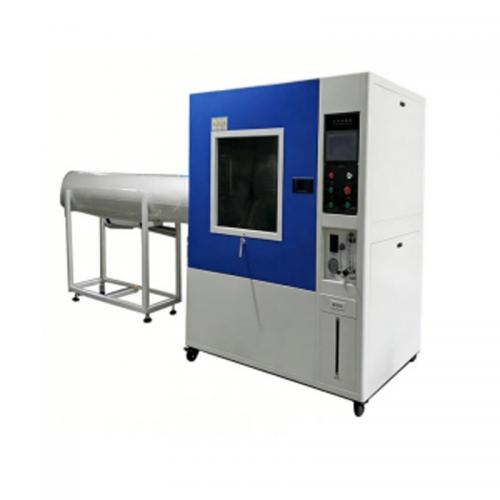

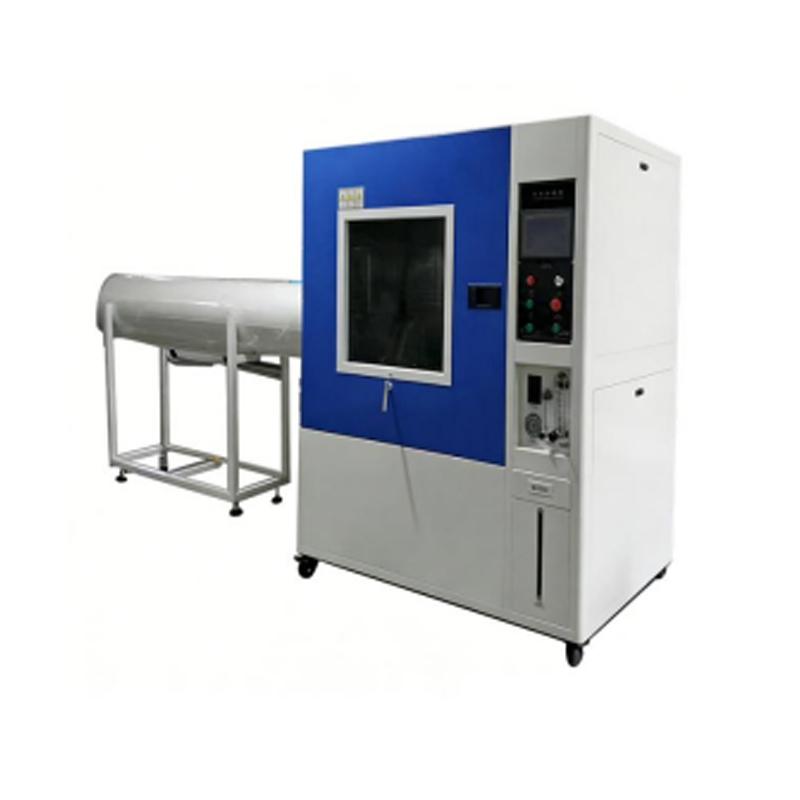

IPX5 IPX6 Water Jet Spray Test Chamber | Horizontal High-Pressure Waterproof Tester
Application:
This equipment is mainly used to evaluate the performance of products under simulated rain conditions during storage, transportation, and use. It is widely applied to electrical and electronic products, lighting equipment, electrical cabinets, electrical components, automobiles, motorcycles, and their parts.
Under simulated rainfall conditions, the equipment tests the physical and other related properties of the products. After testing, the results are assessed to determine whether the product meets the required standards, providing a basis for product design, improvement, verification, and factory inspection.
GB-4208-2008, GB2423.38, IPX5, IPX6 protection levels
|
Model |
GT-F63-500 |
GT-F63-1000 |
|
Capacity |
500L |
1000L |
|
Inner Chamber Dimensions (W×D×H ) |
800×800×800 mm |
1000×1000×1000 |
|
Outer Cabinet Dimensions ( W×D×H ) |
3600×860×1750 mm |
3800×1060×1800 |
|
Turntable Diameter |
400 mm |
600mm |
|
Turntable Load Capacity chamber |
20 kg |
|
|
Number of Spray Nozzles |
IPX5 nozzle, 1pc; IPX6 nozzle, 1pc (2 in total) |
|
|
Water Exposure Surface |
Side of the product |
|
|
Distance from Nozzle to Sample |
2,500-3,000mm |
|
|
Nozzle Inner Diameter |
IPX5: φ6.3 mm; |
|
|
IPX6: φ12.5 mm |
||
|
Spray Flow Rate |
IPX5: 12.5 ± 0.625 (L/min); |
|
|
IPX6: 100 ± 5 (L/min) |
||
|
Pipe Diameter |
One 1/2" and one 1" high-pressure flexible hose |
|
|
Spray Pressure |
30–200 kpa (adjustable according to flow rate) |
|
|
Turntable Speed |
1–7 rpm |
|
|
Spray Duration |
3, 10, 30, 9,999 min (adjustable) |
|
|
Operation Time Control |
1–9,999 min (adjustable) |
|
|
Water Circulation System |
Ensures continuous recycling of water |
|
|
Spray Pressure Gauge |
Displays water spray pressure |
|
|
Control System |
Self-developed touchscreen control system |
|
|
Spray System |
Composed of water pump, pressure gauge, and fixed spray pipe bracket |
|
|
Spray Pipe Material |
Stainless steel |
|
|
External Material |
304 stainless steel |
|
|
Frame Material |
304 stainless steel square tubes, brushed finish |
|
Q1: How does the GT-F63 configure nozzle parameters to switch between IPX5 and IPX6 testing?
A: The GT-F63 utilizes two dedicated 304 stainless steel spray nozzles mounted on a side-mounted pipe bracket:
Water is supplied by an internal FEILI stainless steel pump via 1/2" and 1" high-pressure flexible hoses across a standard 2,500–3,000mm jet spray distance.
Q2: How are spray water pressure and flow rate accurately monitored and regulated?
A: The water delivery line is equipped with manual adjustment valves, a digital flow meter, and a dial-type pressure gauge. Operators can fine-tune system water pressure within 30–200 kPa while verifying real-time flow rate on the digital panel display.
Q3: What are the capacity limits and speed capabilities of the sample turntable?
A: The chamber features a heavy-duty waterproof turntable (Ø400mm for 500L model / Ø600mm for 1000L model) driven by a gear reduction motor. It supports test samples weighing up to 20 kg and offers smooth, adjustable rotation speeds between 1–7 rpm for uniform 360° jet coverage.
Q4: How does the built-in water recirculation system work during continuous testing?
A: Water sprayed during testing is collected into an integrated bottom water tank. The internal pump pressurizes and recirculates this water through the filtration system back to the nozzles, forming a continuous closed-loop system that minimizes water consumption.
