IPX1234 Rain Test Chamber GT-F61

Brand:
GESTER
Item NO.:
GT-F61
Order(MOQ):
1

Inquire now

Product Detail

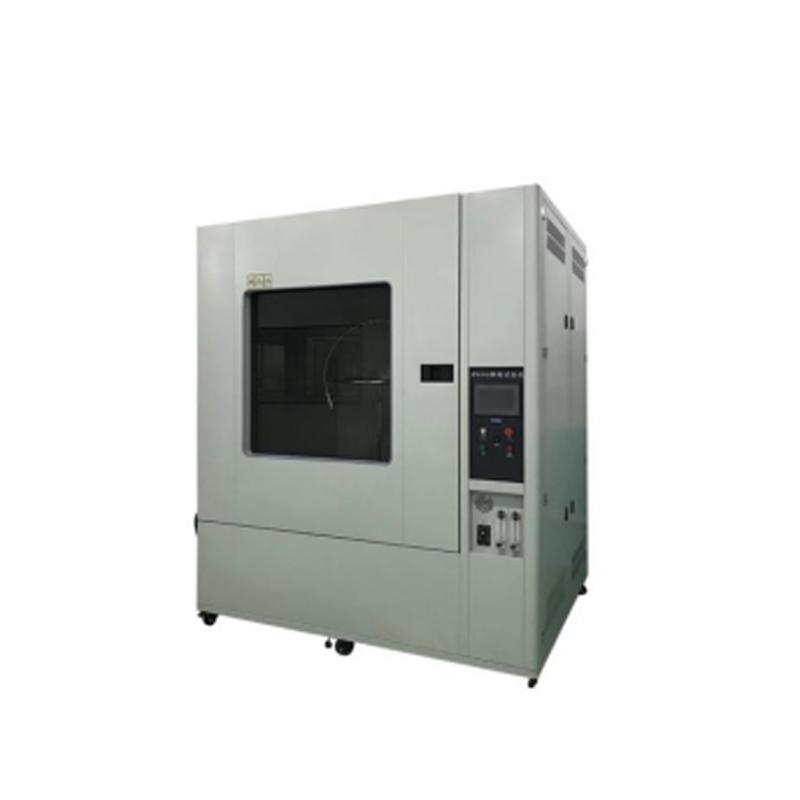

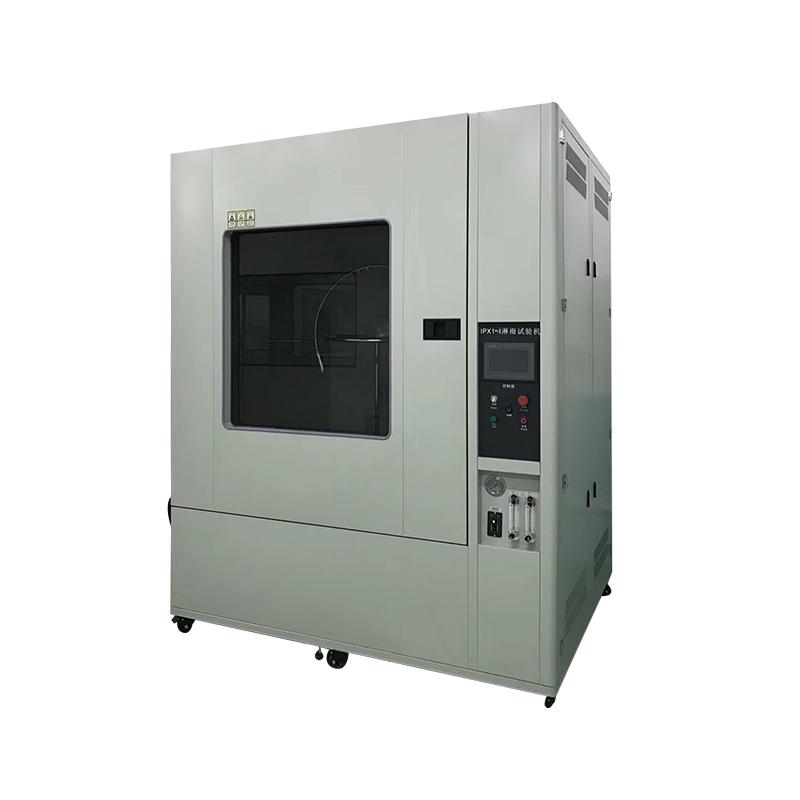

IPX1234 Rain Test Chamber GT-F61

Product Introduction

Application:

It’s suitable for electrical and electronic products that may be exposed to water during transportation, storage, or use—where the water comes from heavy rain, wind-driven rain, sprinkler systems, wheel splash, water jets, or heavy seas. This product adopts a scientific design that enables the equipment to realistically simulate various environments such as dripping, raining, splashing, and spraying. The advanced and comprehensive control system, along with frequency conversion technology, allows for automatic adjustment of the rainfall sample rack's rotation angle, the water spray arm's swing angle, and the water spray volume's oscillation frequency.

Standards:

GB 4208-2008 Degrees of Protection Provided by Enclosures (IP Code)

GB 10485-2006 Environmental Durability of Road Vehicles, External Lighting, and Light Signaling Devices

GB 4942-2006 Classification of Protection Levels for the Overall Structure of Rotating Electrical Machines

GB/T 2423.38 Environmental Testing for Electrical and Electronic Products

GB/T 2423.23 Environmental Testing for Electrical and Electronic Products – Water Test Guidelines

Rain Test Equipment Key Specifications

Model	GT-F61-500	GT-F61-1000
IP12
Nominal internal volume	500L	1000L
Internal dimensions (WHD)	800×800×800 mm	1000×1000×1000mm
External dimensions (WHD)	≈1300×970××1700 mm	≈1600×1200×1900mm
Drip Area Dimensions	600×600×60 mm	800×800×60mm
Distance from Drip Tank to Sample	200mm
Drip hole diameter	φ0.4 mm
Spray Nozzle Spacing	20mm
Rainfall Rate	1+0.5mm/Min; 3+0.5mm/Min
Turntable	IPX1: turntable horizontal; IPX2: turntable tiltable at 15°
Air supply	The user shall provide a air source of 5 kg or more.
IP34
Oscillating tube radius	300mm	400mm
Nozzle distance from sample	200mm (within)
Spray Nozzle Spacing	50mm
Oscillating tube swing angle range	120°～320° (adjustable)
Nozzle angle	120°(IP3); 180°(IP4)
Oscillating tube speed	30°/s; oscillation speed: IPX3: 15 times/min, IPX4: 5 times/min
Spray hole diameter	φ0.4（mm）
Flow rate per spray hole	0.07 L/min +5%
Spray water pressure	80-150 (Kpa)
Water source and consumption	8 liters/day of purified water or distilled water
Controller System	Self-developed PLC touchscreen controller
Spray system	IP3: 12 nozzles; IP4: 18 nozzles	IP3: 16 nozzles; IP4: 25 nozzles
Water flow rate	IP3: 0.84 L(min) IP4: 1.26L (min)	IP3: 1.1 L(min) IP4: 1.8L (min)
Inner Chamber Material	SUS304 stainless steel
Outer Chamber Material	SUS304 stainless steel
Common System
Turntable height	100mm(adjustable)
Turntable speed	1–7 r/min (adjustable)
Turntable diameter	400mm
Load capacity	20kg
