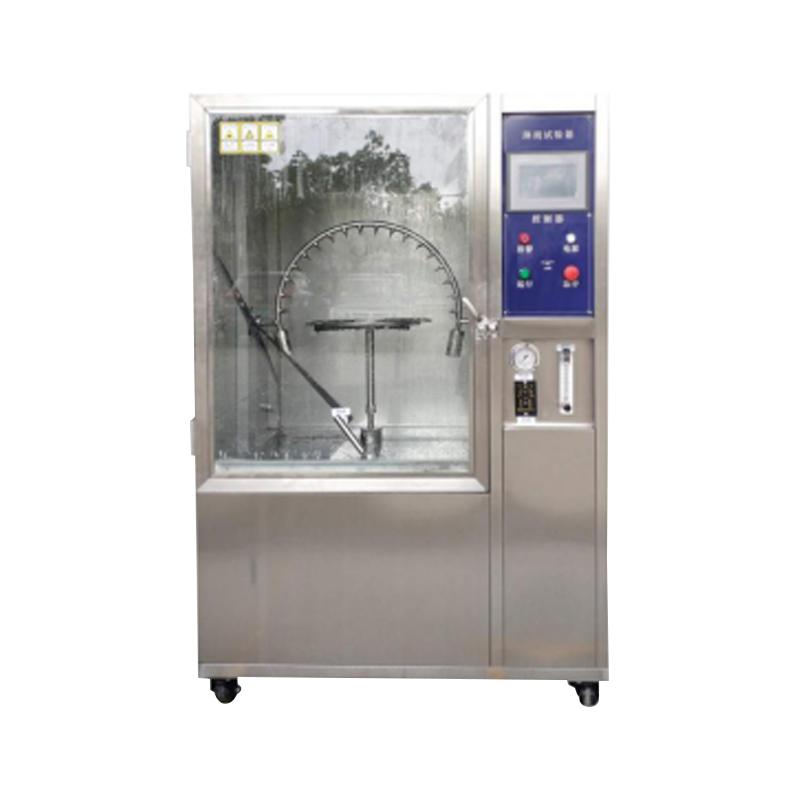

IPX3/IPX4 Rain Test Chamber GT-F60 is a high-precision oscillating tube water spray test system specifically developed for testing automotive lighting, vehicle-mounted electronics, and external electrical housings. Built strictly to conform to the Japanese automotive standard JIS D0203 as well as GB 4208, GB 10485, and GB 4942, the Rain Test Equipment focuses on targeted IPX3 (16-nozzle) and IPX4 (25-nozzle) rain spray and splash resistance testing.
Controlled by a PLC touchscreen system, the GT-F60 features a stepper-motor-driven R400mm swing pipe with adjustable oscillation angles (120° / 320°) and a 20kg capacity turntable. Its closed-loop filtration system achieves an ultra-low water consumption rate of just ~8 L/day. Constructed from durable SUS#304 stainless steel with a 6kW power rating, GESTER provides direct factory supply, reliable test repeatability, and lifetime technical support.
Brand:
GESTERItem NO.:
GT-F60Order(MOQ):
1Product Detail
IPX3 IPX4 Oscillating Tube Rain Test Chamber GT-F60
Application:
This Rain Test Chamber can simulate the water leakage in various environment. It is applicable to test the function of electronic products and automobile parts subjected to the droplets, indirect wind and rain or spray.
GB 4208, GB10485, GB4942, GB/T 2423.38, GB/T 2424.23, JIS D0203
|
Model |
GT-F60 |
|
Controller |
PLC Touch Screen |
|
Testing time |
1-999,999min (Can be set.) |
|
Inner dimension |
1000mm×1000mm×1000mm (D×W×H) |
|
Inner chamber material |
SUS #304 stainless steel |
|
Speed of test table |
1～7rpm (Adjustable) |
|
Turntable diameter |
600mm |
|
Swing pipe radius |
400mm |
|
Max. Loading weight |
20kgs |
|
Spray hole spacing |
50mm |
|
Swing angle of spray pipe |
120° 320° (Can be set.) |
|
Nozzle angle |
120°(IPX3) 180°(IPX4) |
|
Swing speed of spray pipe |
30°/s , IPX3: 15 times/min, IPX4: 5 times/min |
|
Spray hole diameter |
Φ0.4mm |
|
Flow rate of each spray hole |
0.07 L/min +5% |
|
Spray pressure |
80-150kpa |
|
The distance between sample and the test device |
200mm |
|
Water supply and consumption |
Purified water or distilled water, 8 L/day |
|
Spray system |
IPX 3: 16 nozzles, IPX 4: 25 nozzles |
|
Power supply |
1 phase 220V 50Hz, about 6KW |
|
Machine dimension |
1400×1060×1710mm (D×W×H) |
Q1: How does the GT-F60 execute IPX3 and IPX4 oscillating tube tests across multi-standard requirements?
A: Powered by a PLC touchscreen control system, the GT-F60 features preset, programmable testing modes engineered to conform with JIS D0203, GB 4208, GB 10485, GB 4942, GB/T 2423.38, and GB/T 2424.23.
IPX3 Spray Testing Mode: Activates 16 spray nozzles at a 120° spray angle with a swing pipe oscillation speed of 15 times/min.
IPX4 Splash Testing Mode: Activates 25 spray nozzles at a 180° spray angle with a swing pipe oscillation speed of 5 times/min.
During operation, spray pressure (80–150 kPa), swing angles (120°/320°), flow rate (0.07 L/min +5% per nozzle), and turntable speed (1–7 rpm) are automatically regulated to ensure accurate, repeatable results.
Q2: What types of products can be tested in the GT-F60 Rain Test Chamber?
A: The GT-F60 is designed to evaluate the water spray resistance and enclosure sealing performance of a wide range of products, including automotive lighting, vehicle-mounted electronics, electric motors, outdoor electrical enclosures, and industrial components. The Ø600mm rotating turntable accommodates test specimens up to 20 kg.
Q3: How does the GT-F60 achieve low water consumption during daily operation?
A: The chamber is equipped with an integrated closed-loop water filtration and recirculation system. Water used during testing is automatically filtered and recirculated into the internal storage tank. This design prevents Ø0.4mm micro-nozzle clogging while keeping daily water consumption at approximately ~8 L/day of purified water.
Q4: Why choose GESTER as your rain test chamber manufacturing partner?
A: As a professional physical testing equipment manufacturer with nearly 30 years of R&D and manufacturing experience, GESTER builds high-precision rain test chambers directly from our factory. We enforce strict quality control to ensure total compliance with international standards, offering direct factory pricing, reliable quality, and lifetime technical support worldwide.
