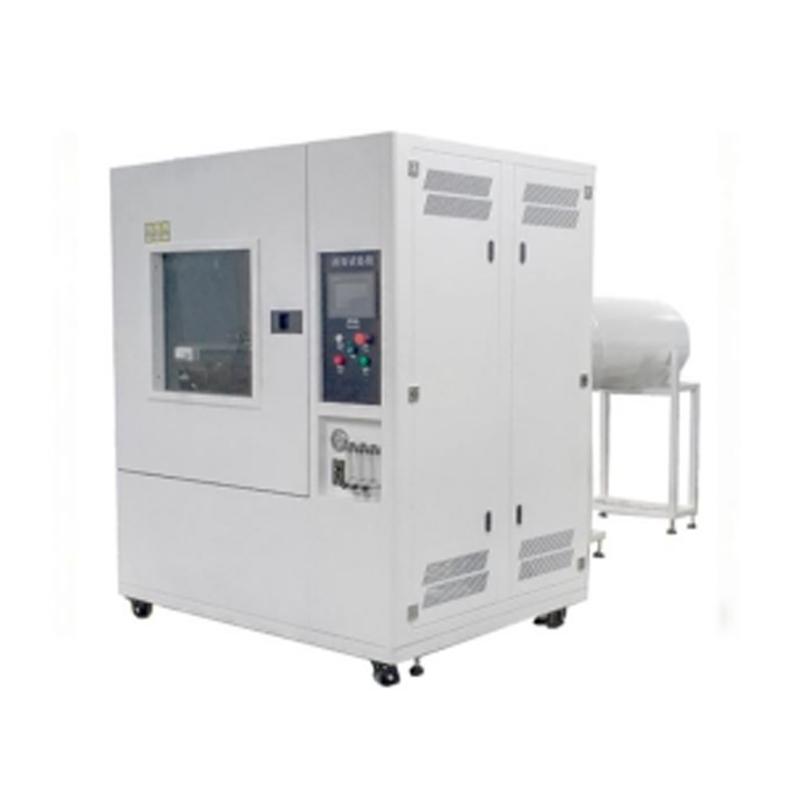

Horizontal Rain Spray Test Chamber GT-F62 is an all-in-one water ingress testing system engineered to perform IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 protection tests in a single unit. Fully compliant with IEC 60529, GB 4208, GB 2423.38, and GB 4706.32, it evaluates the water resistance of automotive components, electronics, electrical cabinets, and lighting products under simulated rainy conditions.
the Rain Test Chamber GT-F62 is available in 500L, 1000L, and 1500L capacity options. Controlled via a PLC touchscreen panel (Teelong), it integrates a 15° tiltable turntable, an R400/R600mm oscillating swing pipe, and an electric swinging spray head mechanism for IPX5/6 testing.
Brand:
GESTERItem NO.:
GT-F62Order(MOQ):
1Lead Time：
15-30 DaysProduct Detail
IPX 123456 Horizontal Rain Spray Test Chamber
Application:
This IPX1-IPX6 Rain Spray Test Chamber is mainly used to test the performance of products during storage, transportation and use under rainy climatic conditions. It is applicable for testing the physical and other related performances of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy conditions. After the test, the product performance is verified to judge whether it meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.
GB2423.38-90, GB4706.32, IEC 60529, GB 4208, etc.
|
Model |
GT-F62-500 |
GT-F62-1000 |
GT-F62-1500 |
|
Capacity |
500L |
1000L |
1500L |
|
Inner chamber dimension (mm, W×D×H) |
800×800×800mm |
1000×1000×1000 |
1500×1500×1500 |
|
Outer chamber dimension (mm, W×D×H) |
1380×3600×1750 |
1480×3800×1800 |
18900×4300×2300 |
|
Dripping area dimension (mm, W×D×H) |
600×600×60 |
800×800×60 |
800×800×80 |
|
Distance between water dripping tank and sample chamber |
200mm (inside) |
||
|
Dripping hole diameter |
φ0.4mm |
||
|
Spacing of water spray holes |
20mm |
||
|
Rainfall |
1±0.5mm/min, 3±0.5mm/min |
||
|
Turntable |
IPX1: horizontal; |
||
|
IPX2: tiltable at 15° |
|||
|
Air source |
Prepared by the buyer, air source with pressure above 5kg |
||
|
IP34 |
|||
|
Swing pipe radius(mm) |
400 |
600 |
|
|
Distance between spray head and sample |
200mm (inside) |
||
|
Spacing of water spray holes |
50mm |
||
|
Swing angle range of spray pipe |
120°, 320° (configurable) |
||
|
Nozzle included angle |
IPX3: 120° |
||
|
IPX4: 180° |
|||
|
Swing pipe speed |
30°/s |
||
|
Swinging speed |
IP3: 15 times/min; |
||
|
IP4: 5 times/min times/min |
|||
|
Water spray hole diameter |
φ0.4mm |
||
|
Flow rate per water spray hole |
0.07(±5%) L/min |
||
|
Water spray pressure |
80-150kPa |
||
|
Spray system |
IPX3: 16 nozzles; |
||
|
IPX4: 25 nozzles |
|||
|
Water flow rate |
IPX3: 1.1 L/min, |
||
|
IPX4: 1.8 L/min |
|||
|
IP56 |
|||
|
Number of spray heads |
IPX5 spray head, 1pc; IPX6 spray head, 1pc (2 in total) |
||
|
Water-receiving surface |
Side of the product |
||
|
Distance between spray head and sample |
2500～3000mm(or within that range) |
||
|
Inner diameter of spray hole |
IPX5: φ6.3mm, |
||
|
IPX6: φ12.5mm |
|||
|
Water spray flow rate |
IPX5: 12.5±0.625 L/min, |
||
|
IPX6: 100±5 L/min |
|||
|
Pipe diameter |
1 piece of 1/2 inch high-pressure hose ; 1 piece of 1 inch high-pressure hose respectively |
||
|
Water spray pressure |
30～200kPa (adjusted according to flow rate) |
||
|
Continuous water spray time |
3, 10, 30, 9999min (adjustable) |
||
|
Running time control |
1～9999min (adjustable) |
||
|
Water circulation system |
Ensures recycling of water source |
||
|
Water spray pressure gauge |
Displays water spray pressure |
||
|
Flow and pressure control |
Mechanical flow meter |
||
Q1: How does the GT-F62 perform multi-grade IPX1 to IPX6 tests according to IEC 60529 and GB 4208?
A: The GT-F62 integrates dedicated testing modules managed by the self-developed Teelong PLC touchscreen system:
IPX1 & IPX2 Drip Testing: Top-mounted drip tank with Ø0.4mm holes; the turntable stays horizontal for IPX1 and tilts 15° for IPX2.
IPX3 & IPX4 Spray Testing: Oscillating swing pipe with 16 nozzles (IPX3, 120° angle) or 25 nozzles (IPX4, 180° angle) swinging at 30°/s.
IPX5 & IPX6 Jet Spray Testing: Side-mounted Ø6.3mm (IPX5) and Ø12.5mm (IPX6) high-pressure spray heads featuring an electric up-and-down swinging mechanism with protective housing.
Q2: How does the electric swing device for the IPX5/IPX6 spray head operate?
A: The IPX5 and IPX6 spray heads are mounted on a dedicated side support frame featuring an electric up-and-down swing mechanism. Protected by an outer guard cover, the electric swinging function can be toggled on or off directly on the touchscreen panel to deliver controlled horizontal and vertical water jet coverage on the sample.
Q3: What types of products can be tested in the GT-F62 Horizontal Rain Spray Test Chamber?
A: The GT-F62 is ideal for testing the physical water-ingress resistance of electronic products, lamps, electric cabinets, electrical components, automobiles, motorcycles, and auto parts during storage, transport, and operation. It features a height-adjustable waterproof turntable (1-7 r/min) with a maximum loading capacity of 20 kg.
Q4: Why choose GESTER as your rain test chamber manufacturing partner?
A: As a professional physical testing equipment manufacturer with nearly 30 years of R&D and manufacturing experience, GESTER builds high-precision rain test chambers directly from our factory. We enforce strict quality control using premium components (e.g., MCGS touchscreens, XINJE PLCs, CHINT breakers, Mean Well power supplies), offering direct factory pricing and lifetime technical support worldwide.
