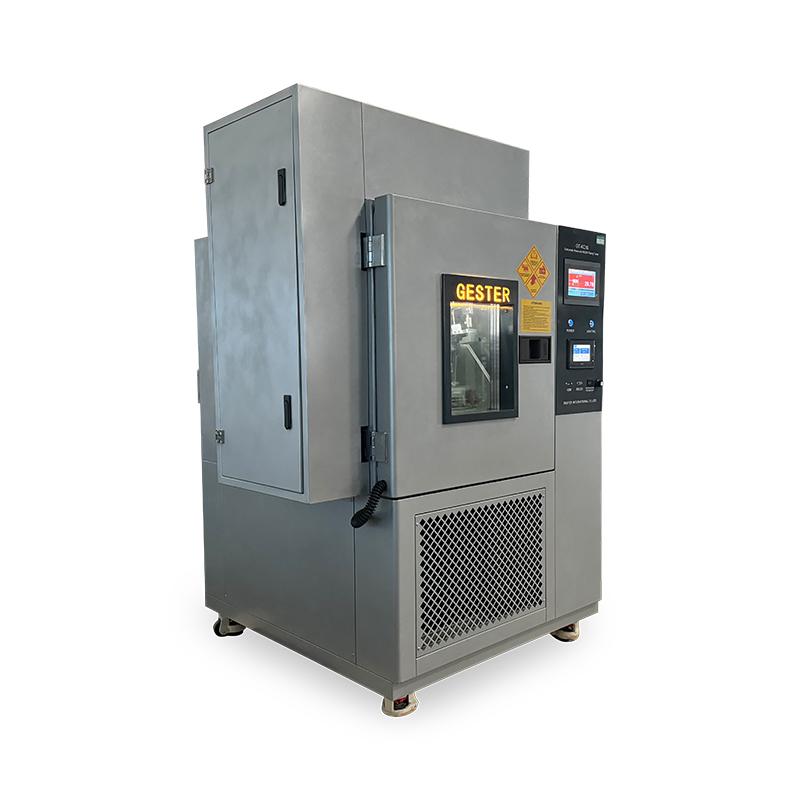

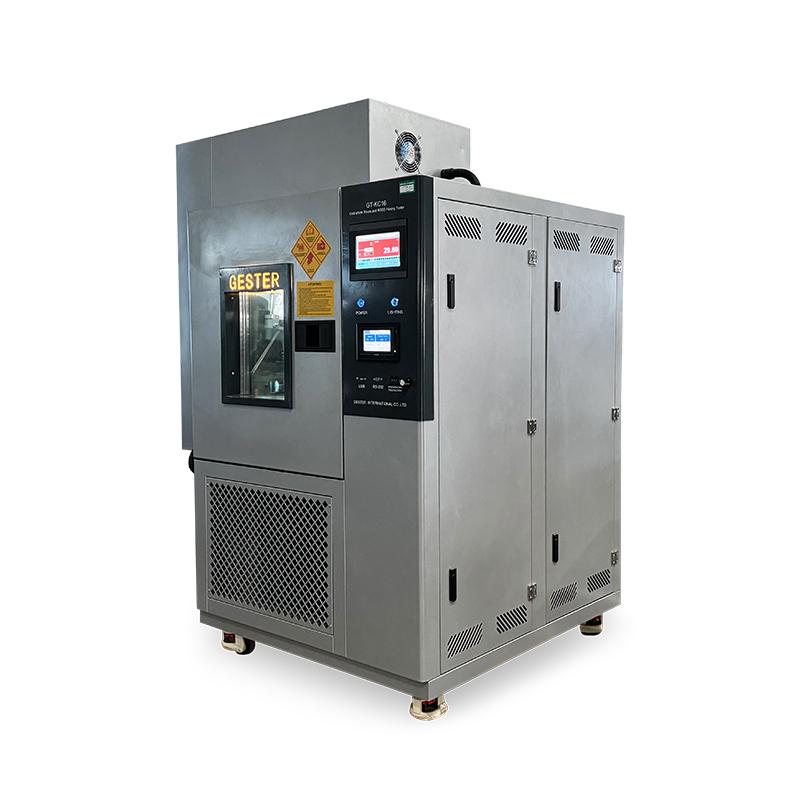

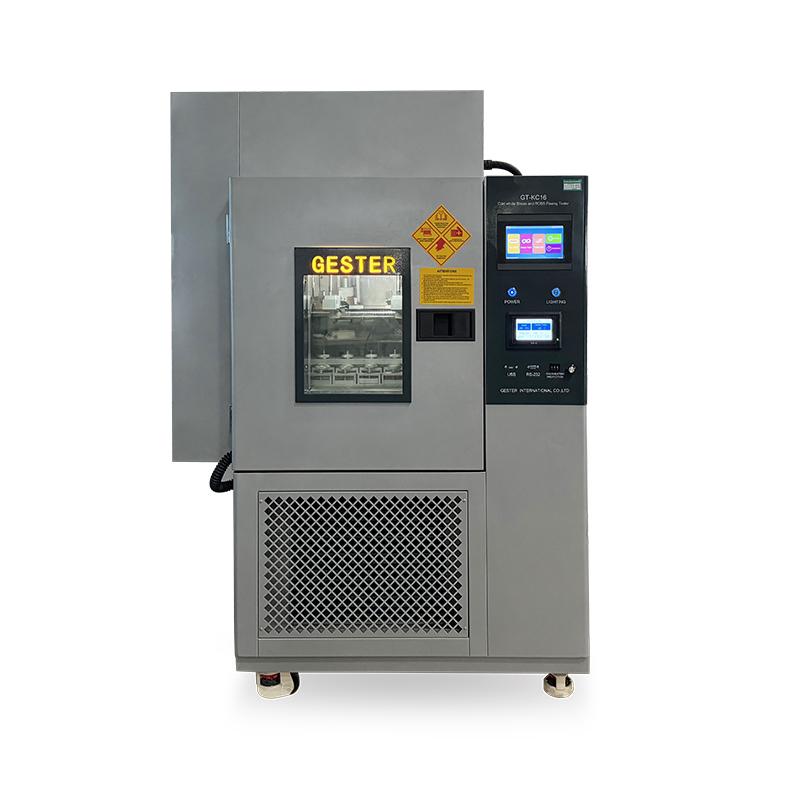

Low Temperature Flexing Tester GT-KC16

Low Temperature Flexing Tester GT-KC16

Application:

To determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and whole shoes.

Standards:

For ROSS Flexing Test

ASTM D1052, SATRA TM60, BS5131:2.1, GB 20265

ISO 5423, HG/T2411, ISO4643;

EN20344-2021section 8.7, 8.8.4

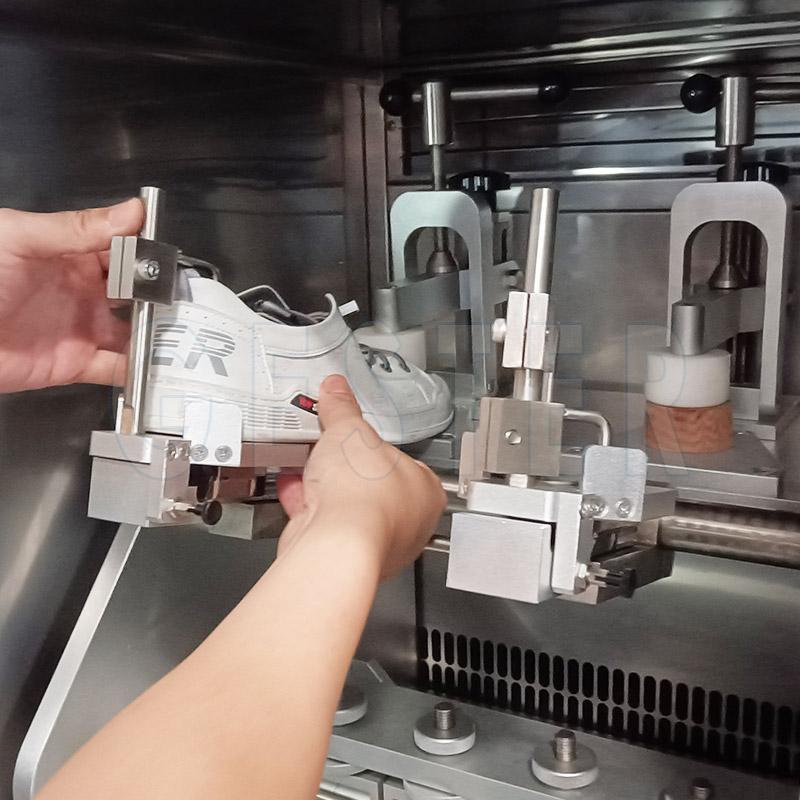

For Whole Shoes Flexing Test

SATRA TM92

• Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
• Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
• With vacuum glass observation window, more effecitive to observe the testing situation.
• Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
• Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groups.

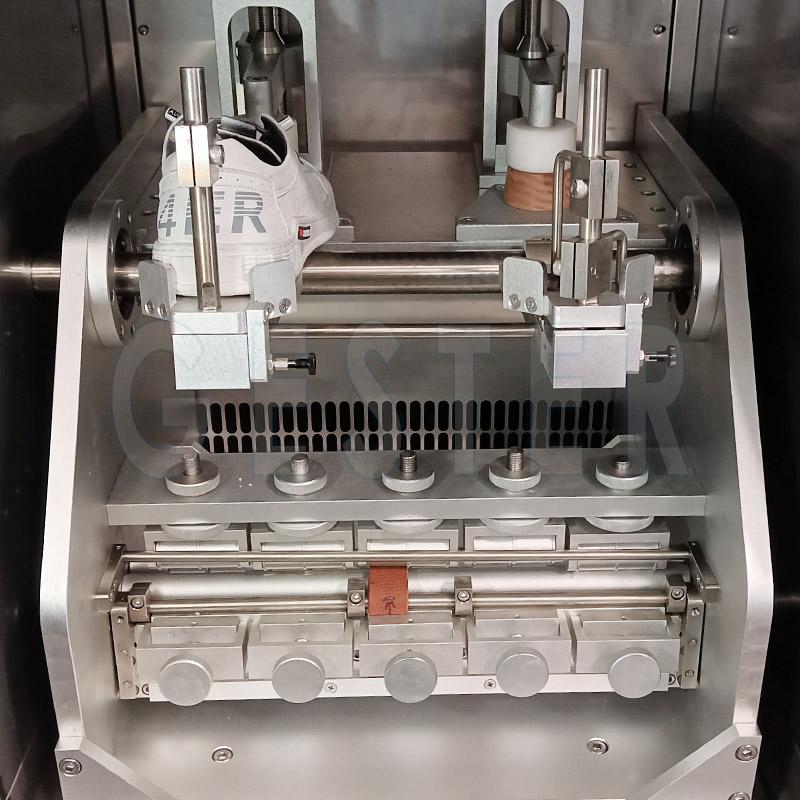

• This machine has four kinds of flexing test systems with function of power off memory and automatic stop when test done.
• All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.
