Brand:
GESTERItem NO.:
GT-KC09Order(MOQ):
1Product Detail

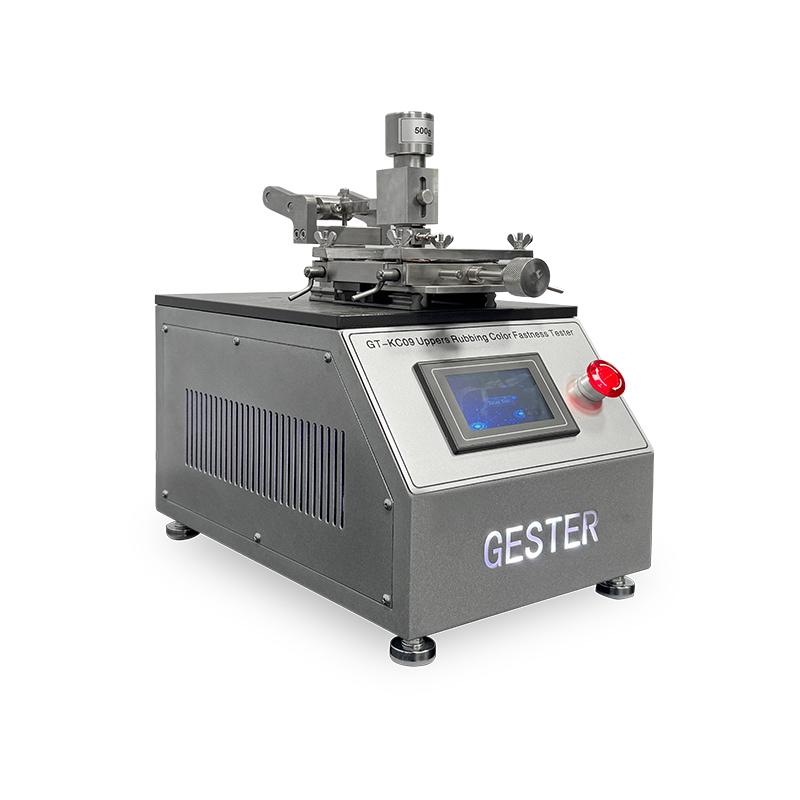

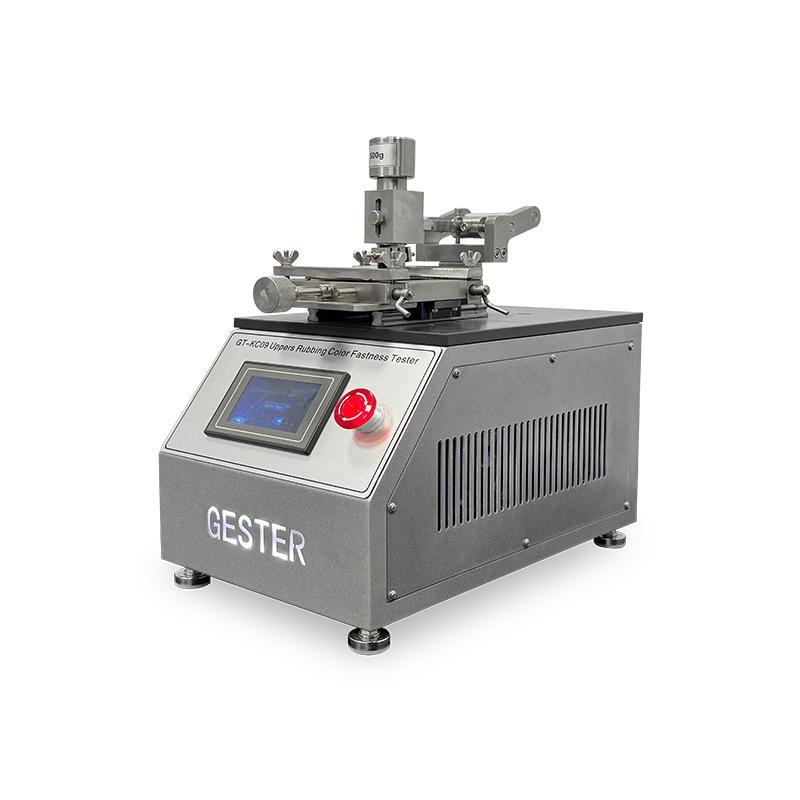

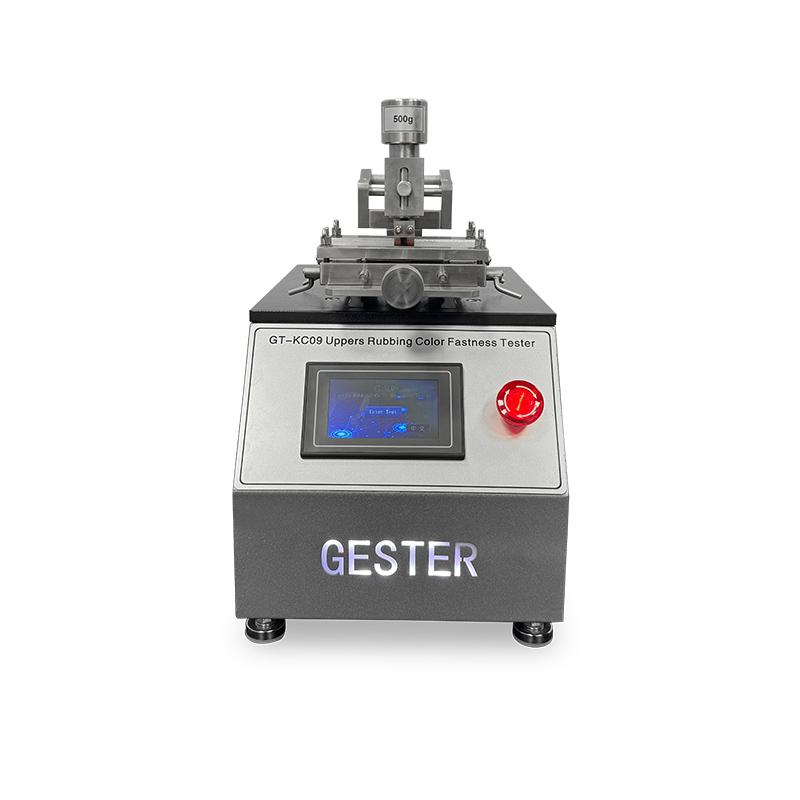

Uppers Rubbing Color Fastness Tester GT-KC09
Application:
This test apparatus is similar to the one specified in ISO 11640 for determination of the colour fastness to to-and-fro rubbing of leather, to which the wooden semi-cylinder of 10mm radius and 20 wide is attached on the base of the finger and a suitable device is coupled for attaching the rubber strips. It can be used for dry abrasion testing and wet abrasion test.
|
Model |
GT-KC09 |
|
Position |
1 |
|
Testing head |
R10mm x20mm |
|
Movement speed |
40 ± 2 times / min. |
|
Rubbing stroke |
35~40 mm |
|
Rubbing finger mass |
500g |
|
Additional weight mass |
500g |
|
Fixtures distance |
80mm |
|
Sample size |
120x70mm |
|
Tension extension range of sample |
0 ~ 20% |
|
Power supply |
1∮AC 220V 50/60HZ |
|
Standards |
ISO 24265-2020 |
Accessories
|
Standards accessories |
1pc/Position |
500g Weights |
|
1pc |
Power line |
|
|
Optional |
GT-KD20 Pneumatic sample cutting machine (Cutter: 120x70mm) |
|
|
Optional |
Gray Scale for color change |
