Whole Shoe Abrasion Tester GT-KA13

This Whole Shoe Abrasion Tester is used to measure the abrasion resistance

of finished shoe sole or molded sole(piece).

  • Brand:

    GESTER
  • Item NO.:

    GT-KA13
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

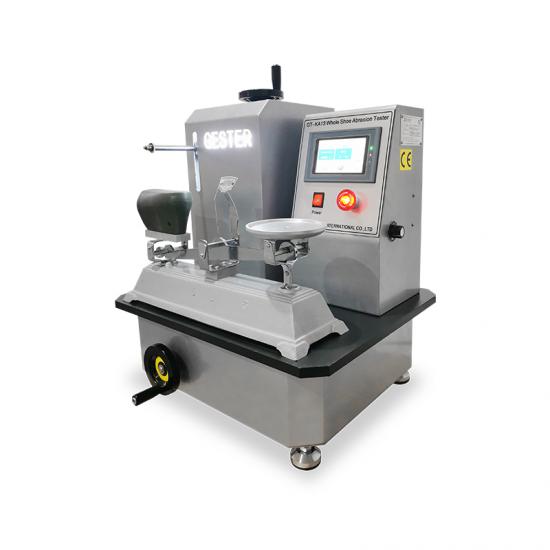

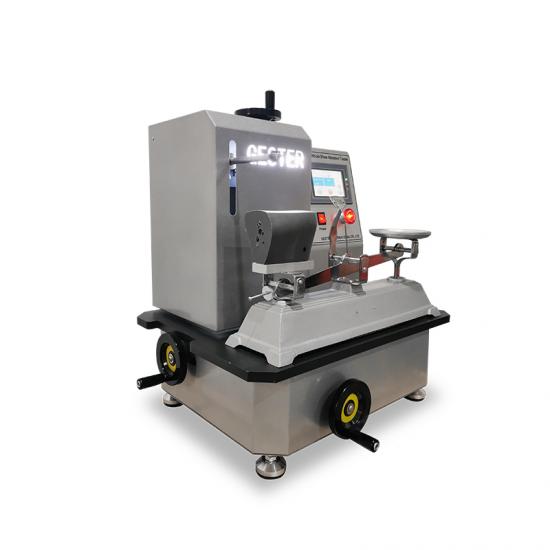

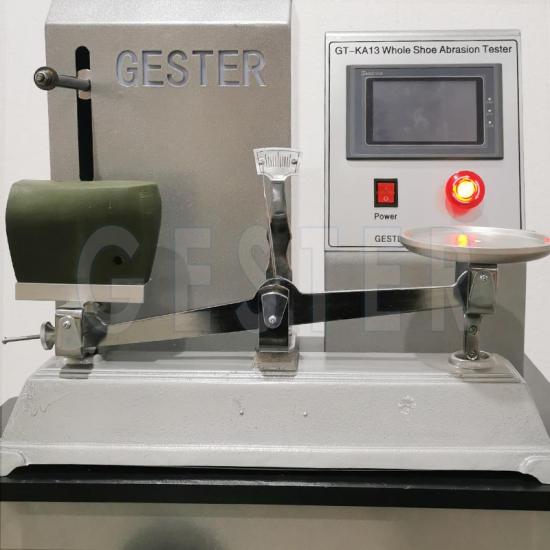

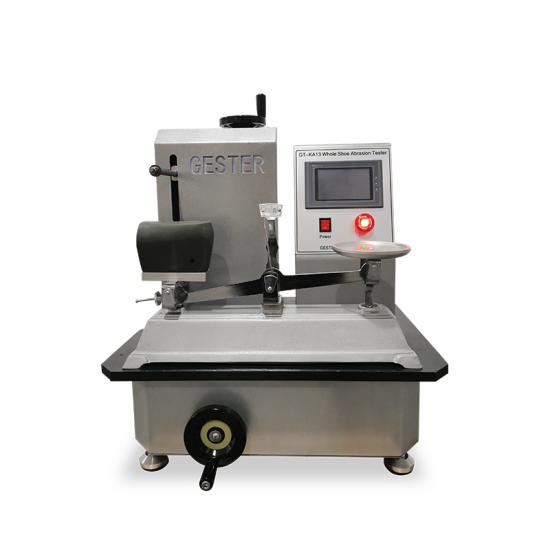

Whole Shoe Abrasion Tester GT-KA13


Product Introduction


Application:

This shoe abrasion tester GT-KA13 is used to measure the abrasion resistance of finished shoe sole or molded sole (piece).

Standards:
GB/T3903.2

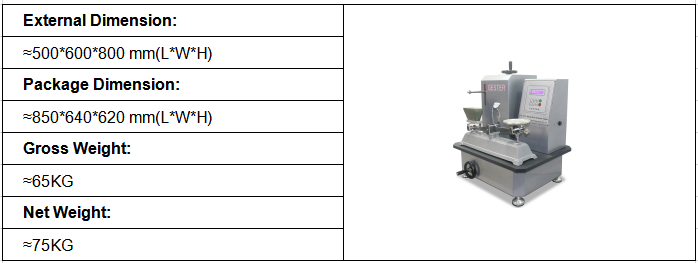

Dimensions

Whole Shoe Abrasion Tester Dimensions


Whole Shoe Abrasion Tester Feature

1.With a set of accurate weights, to meet different requirements of test load.

2.LCD controlled, automatically stop after test finished.

3.Equip with vacuum cleaner and clear wear powder timely.


Key Specifications


Model

GT-KA13

Control mode

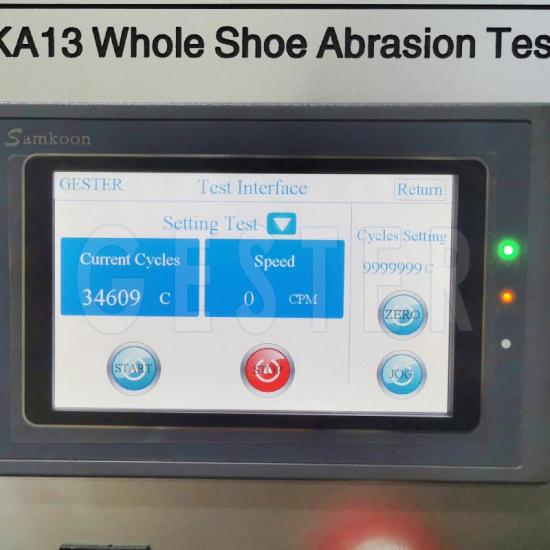

Touch screen control

Abrasive wheel

Diameter 20±0.1mm, thickness 4±0.1mm

Rotating speed

191±5 r/min(100-300r/min adjustable)

Test time

20 min adjustable

Load between abrasive wheel and specimen

4.9N ( it is adjustable within 19.6 N if special requires)

Counter

LCD display,0999,999

Power

1∮AC 220V  50/60HZ  3A

Dimension (W×D×H)

500×600×800mm

Weight

65 KG


Accessories

Standards accessories

1set

Weights

1pc

Power line

Option accessories

Optional

Caliper(accuracy 0.02mm)

Optional

Balance(2000g, accuracy 5g)



Application Industry

All kind of the shoes can be tested on Whole Shoe Abrasion Tester GT-KA13
