Rubber Akron Abrasion Tester GT-KB04

Akron Abrasion Tester is to determine wear resistance of vulcanized rubber and elastic material products.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB04
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

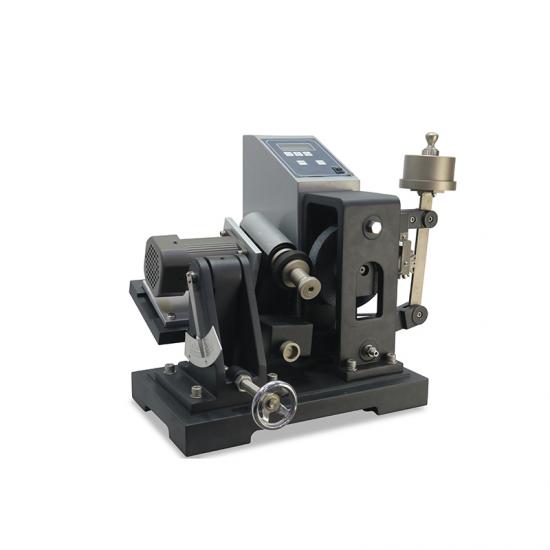

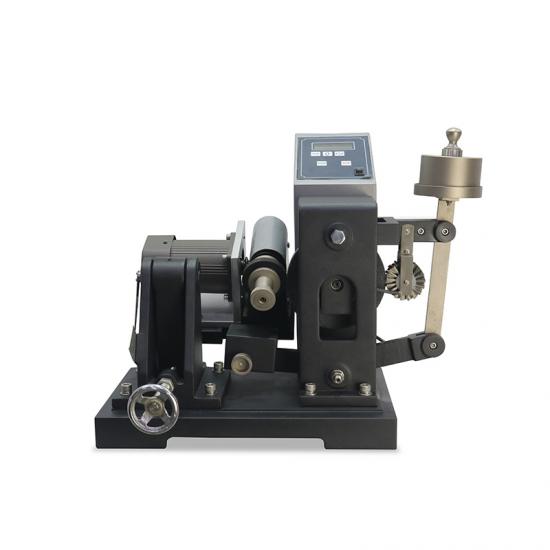

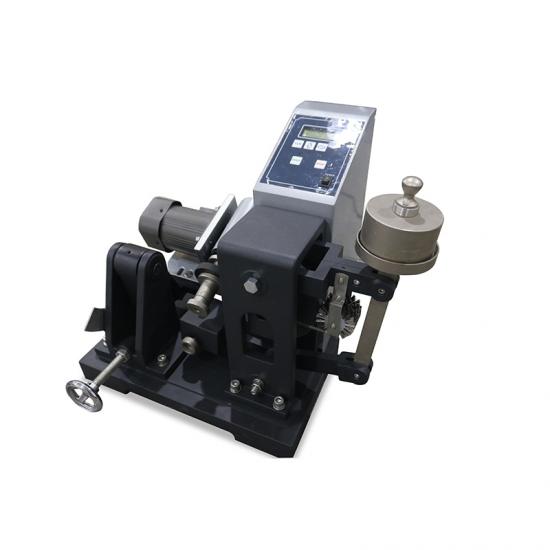

Rubber Akron Abrasion Tester GT-KB04


Product Introduction

Application:

The Akron Abrasion Tester is used to determine wear resistance of vulcanized rubber and elastic material products, like shoes sole, tires, vehicle tracks, by measuring its wear volume caused by rubbing between specimen and sandwheel. And it need to test with balance.

Standards:
GB/T1689, JIS K6264, BS-903-A9 Method B


Dimensions



Akron Abrasion Tester


Feature
1. Body paint baking processed, easy for mainteance.

2. Electronic automatical counter can set wear revolutions and it will automatically stop when it reaches set revolutions.


Key Specifications



Model

GT-KB04A

GT-KB04B

GT-KB04C

Sand Wheel

Outer Diameter Φ150mm, 25mm(w), granularity 36#, Abrasive material: Alumina

Rubber wheel

Outer dia. 68mm,

Thickness 12.7mm,

Perimeter 220mm

Outer dia.60mm,

Inner dia.12.7mm,

Thickness 13mm

Outer dia. 63.5mm,

Inner dia.12.7mm,

Thickness 12.5mm

Rubber axle inclination angle range

0~35° adjustabletest angle 15° or 25°

Rubber axle rotating speed

76±2 rpm

75±5rpm or 250±5rpm

250±5 rpm

Load

26.7±0.2N

27.0N or 44.1N

45N

Counter

LCD, 0~99,999,999

Dimensions ( L x W x H )

60 × 50 × 45cm

Weight

60 kg

Power

1∮, AC220V, 50/60Hz

Standards

GB/T1689

JIS K6264

BS-903-A9 Method B

Standards accessories

Rubber wheel    1pc

Grinding wheel    1pc

Weights    1set




Application Industry

All kind of the below materials can be tested on the Akron Abrasion Tester GT-KB04

Akron Abrasion Tester
