Martindale GT-C13 For Testing The Abrasion and Pilling

The Martindale Abrasion and Pilling Tester Factory direct sale, Engineers service on site to install and commissioning overseas.
  • Brand:

    GESTER
  • Item NO.:

    GT-C13
  • Order(MOQ):

    1
  • Payment:

    TT or L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 days
  • Product Detail

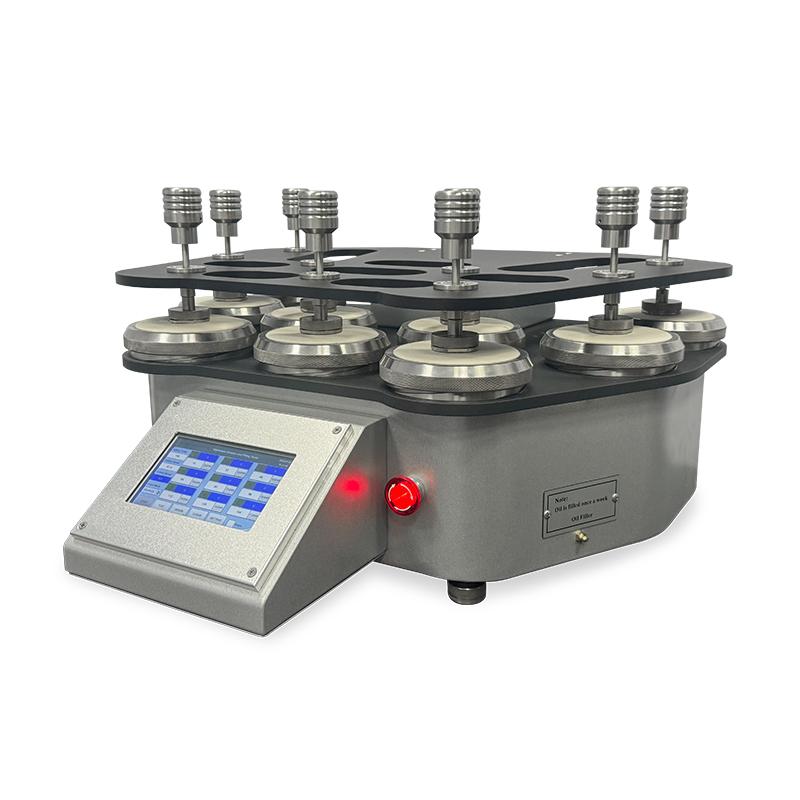

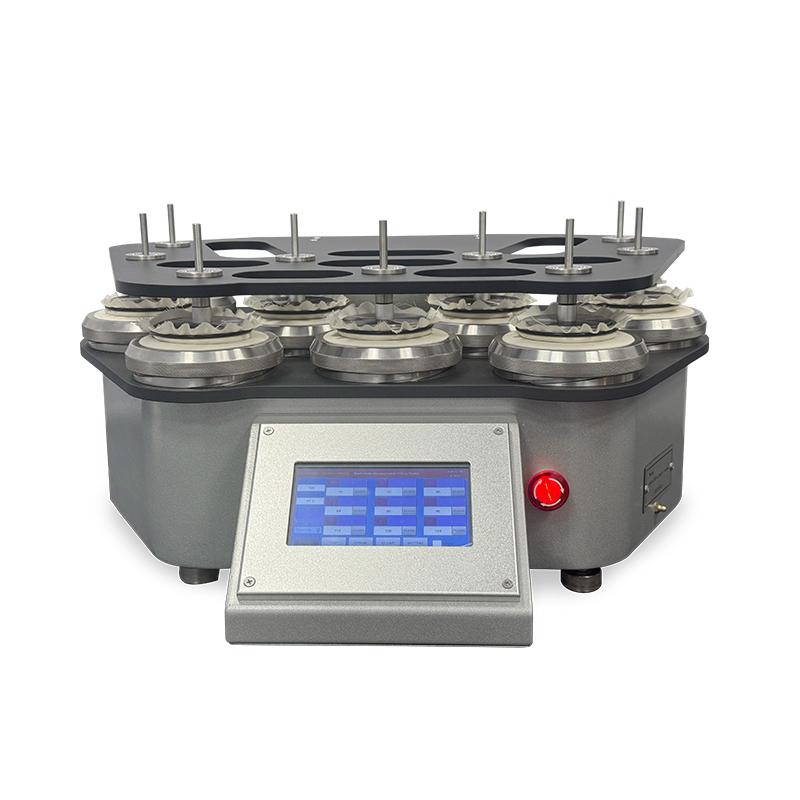

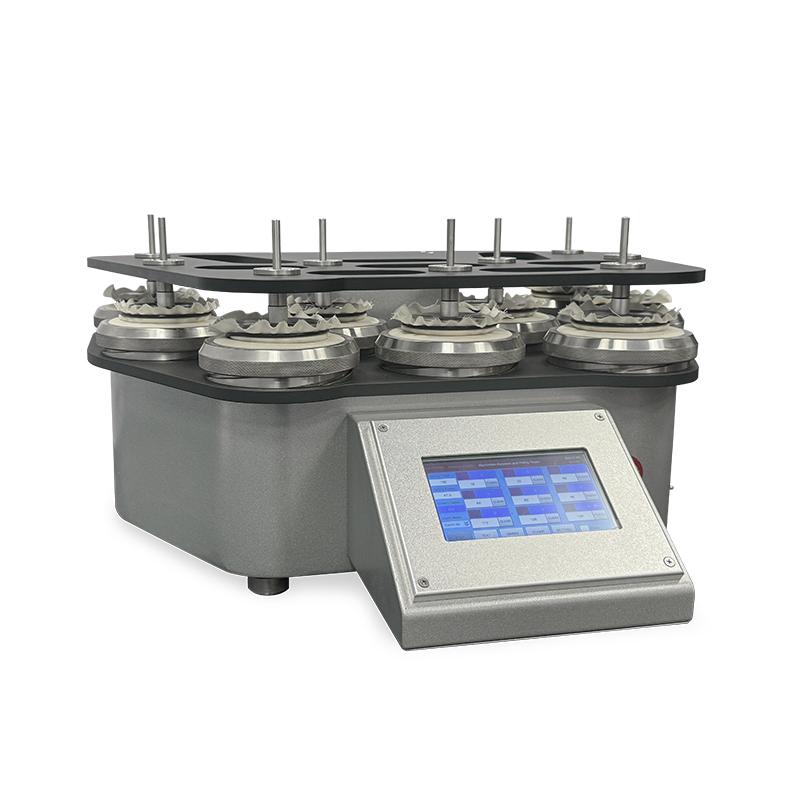

Martindale Abrasion and Pilling Tester GT-C13



Product Introduction

Application of martindale tester:

The Martindale Abrasion and Pilling Tester is the standard method of determining the wear resistance of textiles or leather and the resistance to pilling. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. Adaptable to test a wide range of applications including textiles, socks, leather, coated upholstery, carpets, wood and shirt collars.

Four models are available, with 4, 6, 8 and 9 Abrading Tables respectively.


Standards of martindale tester:
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096 ( ISO17076-2 ball plate method ,optional)
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525

Dimensions

Martindale abrasion and pilling tester



Feature of martindale

1.Test Standard: Lissajous figure.

2.Working positions: 4, 6, 8, 9 optional.
3.Counting Method: 1) count up. 2) count down.
4.The unique design allows removal of individual sample holders 5.for examination without lifting the top motion plate.
6.Standard sample holders with 9 and 12kpa weights included.
7.PLC, 7 inches color touch screen, Chinese and English operation interface.

8.Weights and key components are made up by stainless steel. which is well-formed and durable in use.

9. To prevent distortion, the top motion plate was special made up by 316 aluminum alloy.





Martindale Abrasion Tester Key Specifications



Model

GT-C13B-4

GT-C13B-6

GT-C13B-8

GT-C13B-9

Working positions

4

6

8

9

Control mode

PLC control and touch screen display

Counter range

0~999999 times







Test pressure





Abrasion test

A) Specimen holder: (198 ±2)g

B) Larger loading piece: (597±5)g

C) The sum mass: (795± 7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)

A) Specimen holder: (198 ±2)g

B) Smaller loading piece: (397±5)g

C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)

Pilling test

A) Stainless steel loading piece: (155 ± 1) g

B) Specimen holder: (260 ± 1)g

C) The sum mass: (415± 2)g

Holder effective diameter

A) Abrasion Holder : Φ(28.65 ± 0.05)mm

B) Pilling  Holder : Φ(90 ± 0.10)mm

Rotational speed

50± 2r/min

Pressing weight

Mass :  (2.5 ± 0.5) kg

Diameter:  Φ(120 ± 10) mm

Power supply

AC220V  50/60Hz

Dimensions(L x W x H)

60×55×41cm

88×61×41cm

90×62×41cm

90×62×41cm

Weight

75kg

130kg

145kg

150kg

Standards

Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966,

IWS TM 112, MS P19, Next 18, SN 198529, TWC 112, JIS L1096, ( ISO17076-2 ball plate method, optional)

Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, MS P17, Next TM26, SN 198525



Accessories A:

Abrasion weight and holder

1set

Pilling weight and holder

1set

Standard abradents fabric

2 pcs for each head

Standard backing foam 38mm

box of 60pcs

Standard woven felt discs 140mm

2 pcs for each head

Standard woven felt discs 90mm

2 pcs for each head

Photographs (copy one)

1set

Sample cutting die(Φ38m , Φ90mm, Φ140mm)

1pc for each size

Pressing weight

1pc

Auxiliary device for specimen mounting

1pc

Steel ball

3pcs

Power line

1pc



Accessories B:

EMPA Photographic standards for pilling test (3 x 4 knitted)

Optional

EMPA Photographic standards for pilling test (3 x 4 woven)

Optional

SM 50 Photographs for pilling test IWS + ASTM. 4 Sets 1-5 (Plain, Twill A, Twill B, Blanket)

Optional

Standard abradents fabric

Optional

Standard backing foam Φ38mm

Optional

Standard woven felt Discs 140mm

Optional

Standard woven felt Discs 90mm

Optional

GT-C48 Pneumatic Sample Cutter

Optional

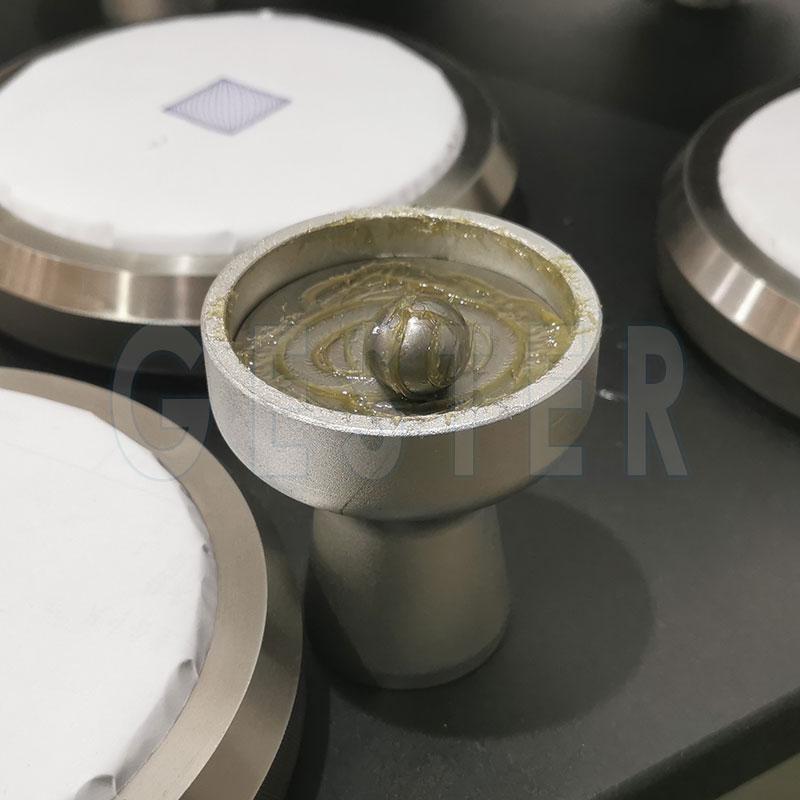

Ball plate for ISO17076-2

Optional


Martindale Abrasion Tester Price









Martindale Abrasion and Pilling Tester



Martindale Abrasion Tester
