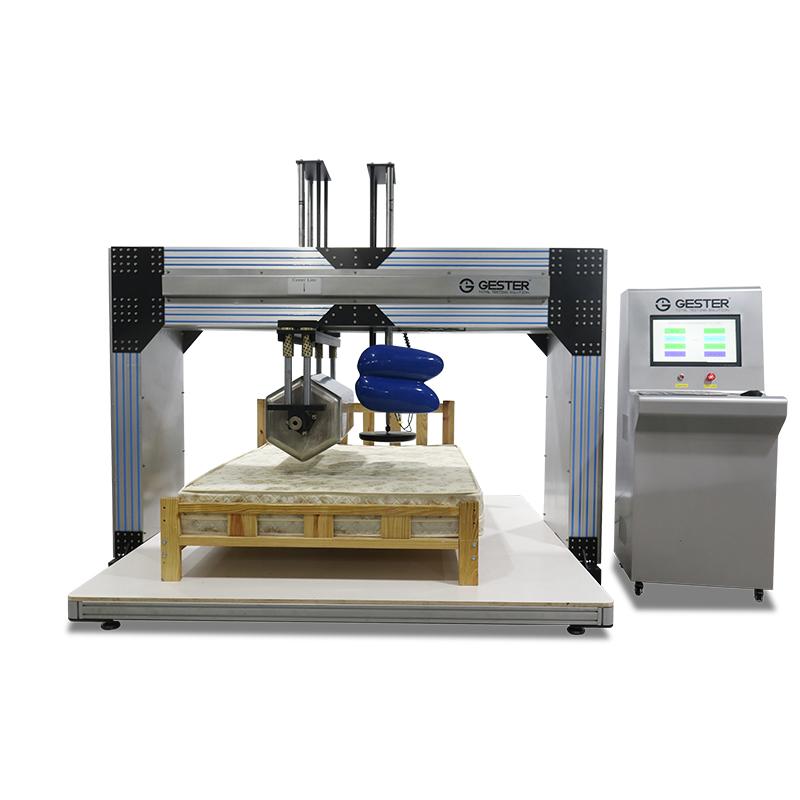

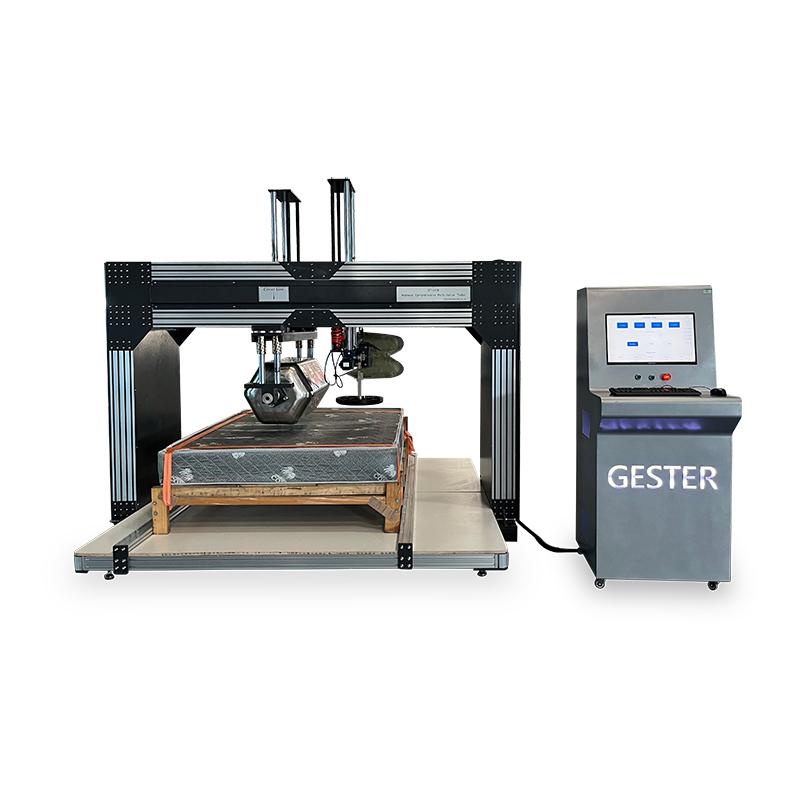

Mattress Comprehensive Performance Tester GT-LA08
  • Brand:

    GESTER
  • Item No.:

    GT-LA08
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    BS EN 1957, EN 1725, QB/T 1952.2
  • Lead Time:

    20-30 days
  • Payment:

    T/T ,L/C
contact now

Mattress Comprehensive Performance Tester GT-LA08


Product Introduction

Application:

This Mattress Comprehensive Tester is the newest design mattress comprehensive performance tester according to EN 1957, EN 1725, QB/T 1952.2, or ASTM F1566 standards.

In general, the machine is configured with the following four test functions:

Height loss test:  the height loss expresses the change in the height of a test unit caused by the durability test.

Durability test : test simulating the repeated application of loads and/or movement of components occurring during long-term use and assessing the strength of the article under such conditions. The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.

Hardness Value & Firmness rating test : the hardness value is determined from load/deflection measurement which be obtained by pressing a load pad into the test unit and measuring the associated value of indentation and force simultaneously. And the firmness rating is used to express the subjective assessment by persons, it is determined form the hardness value upon results from empirical studies.

Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .



Standards:

BS EN 1957, EN 1725, QB/T 1952.2, or ASTM F1566.

Feature

  •  The whole machine frame made of high quality aluminum, beautiful.
  •  This machine control method: computer control.
  •  Roller can be electric lift, easy to operate.
  •  Motor is Taiwan Delta servo motor, the power sensor is the United States Celtron.
  •  The machine is equipped with an alarm device, indicating safe operation.

GESTER Mattress Testing Equipment
Key Specifications



Model

GT-LA08A

GT-LA08B

Controller

Computer Control

Motor

                      Servo Motor

Power sensors

5000N, American Celtron

Durability test

Cylinder Shape

Round

Hexagon

Cylinder Length

1000 mm

36±3in(915±75mm)

Cylinder Weight

1400 N

240±10Lb(109±4.5kg)

Diameter of roller

300 mm

17±1in(430±25mm)

Test speed

0-20 cpm (adjustable)

0-20 cpm (adjustable)

Stroke length

0--1000mm

0--1900mm

Hardness value & Firmness rating test & Height loss test

Pressure plate diameter

355 mm

Pressure plate spherical radius

R800 mm

Test speed

0.001--500 mm/min

Bed edge durability test

Test load

1000 N

Test cycles

5000 cycles

Maintain time

3±1s

Power supply

1∮, AC  220V  50/60Hz

Dimension (W x D x H)

280 x 250 x 180 cm

380 x 250 x 180 cm

Weight (Kg)

1000Kg

1200Kg

Standards

BS EN 1957, EN 1725,

 QB/T 1952.2,

ASTM F1566 ,

BS EN 1957, EN 1725,

QB/T 1952.2,

Standard accessories

EN Round Roller

ASTM Hexagon Roller

Hardness loading pad

Hardness loading pad

Edge loading pad

/

Option accessories

/

EN Round Roller

/

Edge loading pad



Applications Industry

All kinds of Mattress can be tested on the GT-LA08 Mattress Comprehensive Performance Tester
