Mattress Impact & Drop Tester GT-LA01
Mattress Impact & Drop Tester GT-LA01
  • Brand:

    GESTER
  • Item No.:

    GT-LA01
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    ASTM F1566 section 8
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30days
  • Payment:

    TT OR L/ C
contact now

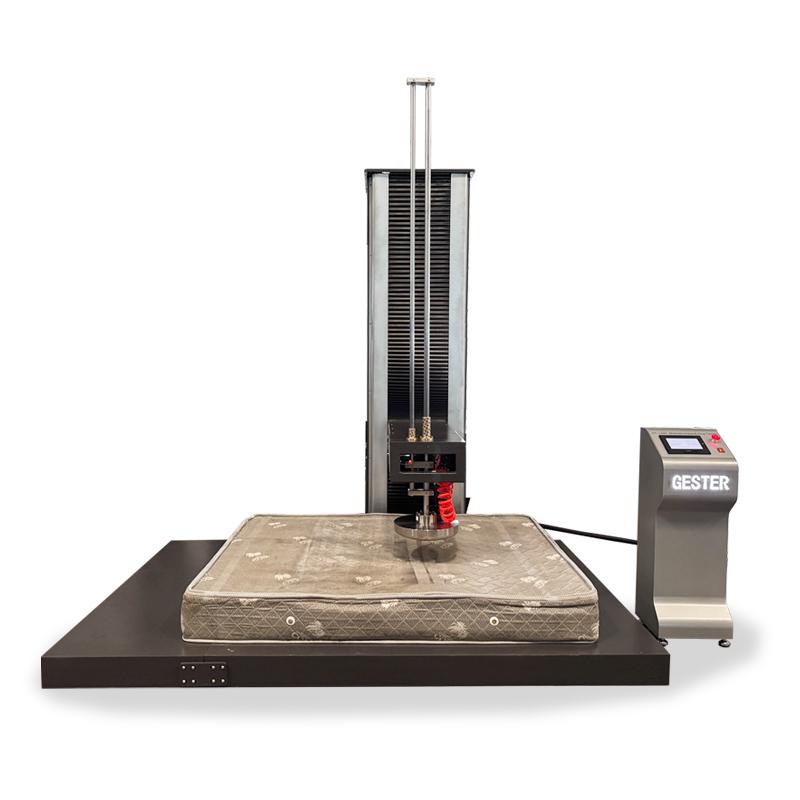

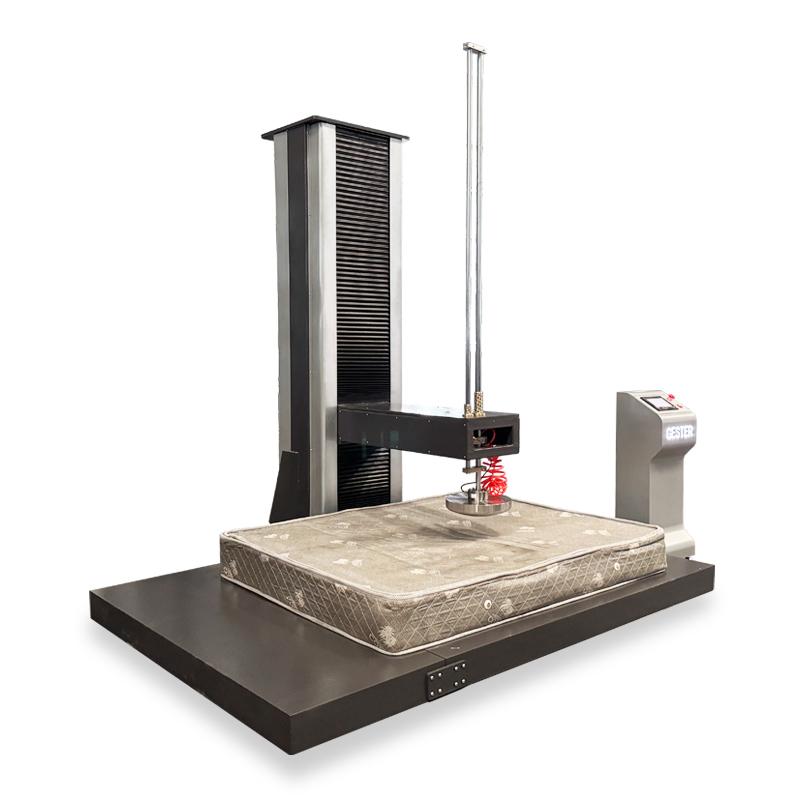

Mattress Impact & Drop Tester GT-LA01


Product Introduction

Application:

Mattress impact tester is widely used to determine and assess the impact resistance of built-in and box-type mattress , to evaluate sofa and mattress sustaining rapid drop on seat or jumping stress ability. The machine consists of a 79.5 ± 1kg platen, which drops down and impacts the test specimen from various heights as selected by the operator. It is suitable for common mattress, foam mattress and spring mattress.



Standards:

ASTM F1566 section 8

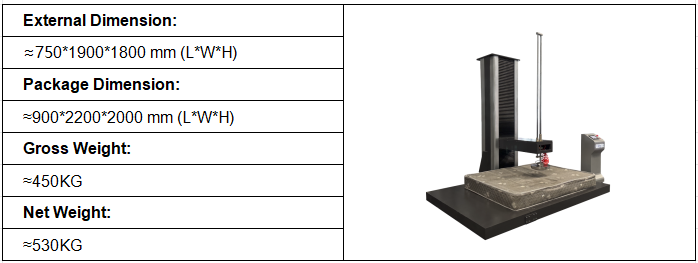

Dimensions

Mattress Impact & Drop Tester GT-LA01


Feature

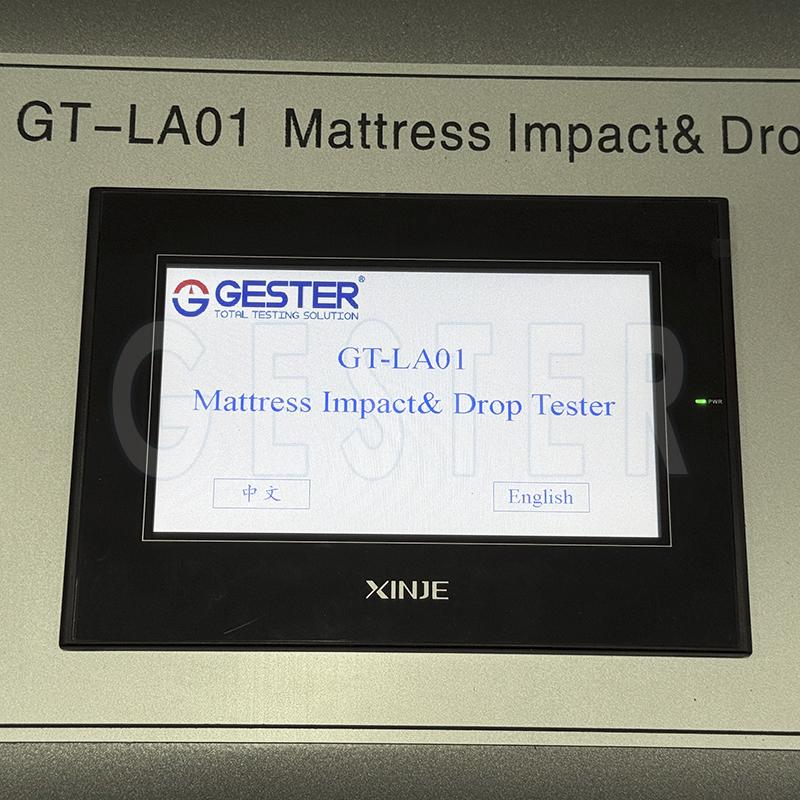

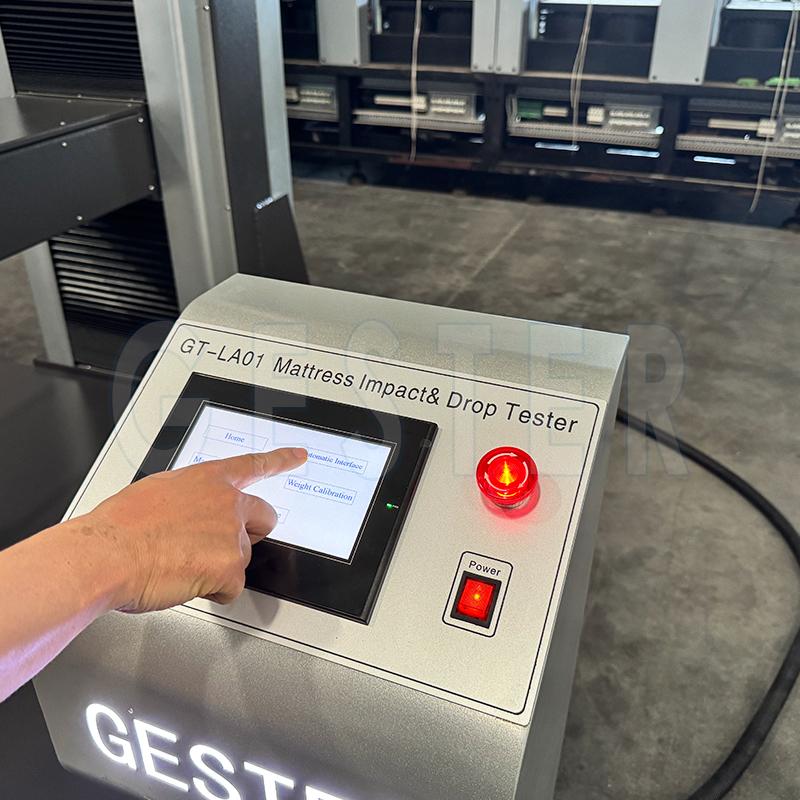

1.This machine is adopted Touch Screen+PLC control model, easy operation.

2.Main components is adopted exported Celtron sensor (Made in USA).

3.This machine could test the samples thickness, up to impact height and analyse the test result automatically.



Key Specifications



Model

GT-LA01

Controller

Touch screen+PLC programmable control

Load cell

Celtron,5KN

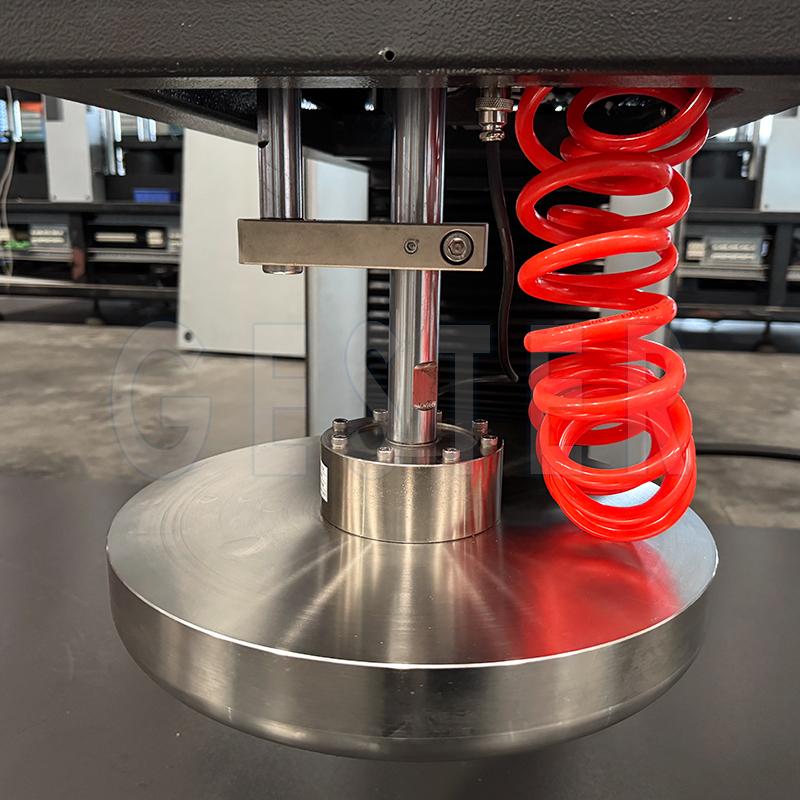

Platen

Weight

79.5 ± 1kg

Diameter

356±10mm

Thickness

91±5mm

Convex spherical curvature radius

300 mm

Edge radius

25±2.5mm

Power supply

1∮, AC 220V  50/60Hz

Dimension (WxDxH)

W750×D1900×H1800mm

Weight

≈450Kg

Standards

ASTM F1566 section 8



Applications Industry

All kinds of Mattress can be tested on the Mattress Impact & Drop Tester GT-LA01

ASTM F1566 mattress testing machine

inquiry now

    We will give you a quotation within 24 hours.

      Mattress Impact & Drop Tester GT-LA01
