Model

GT-RA09D-2

Aerosol

Salt

Efficiency detection

Particle counter (0.3-10μm)

Control model

PLC Touch screen control

Aerosol Channel

One

Test flow range

15L / min ~ 100L / min, accuracy 2%

The air flow cross-sectional area

100cm²

Resistance test range

0 ~ 1000Pa, accuracy can reach 0.1Pa

Filtration efficiency test range

0 ~ 99.999%, resolution 0.001%

Test time

Separate resistance test: 5s

Simultaneous efficiency and resistance test: 70s

Power supply

1phase 220V 50Hz

Standard Accessory

1set

 Salt aerosol generator

1set

 Particle counter (0.3-10μm)

1set

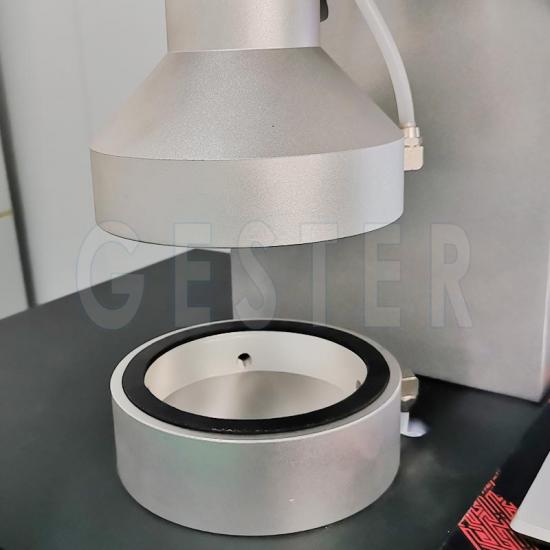

 100cm² fixture
