Product Detail
Application:

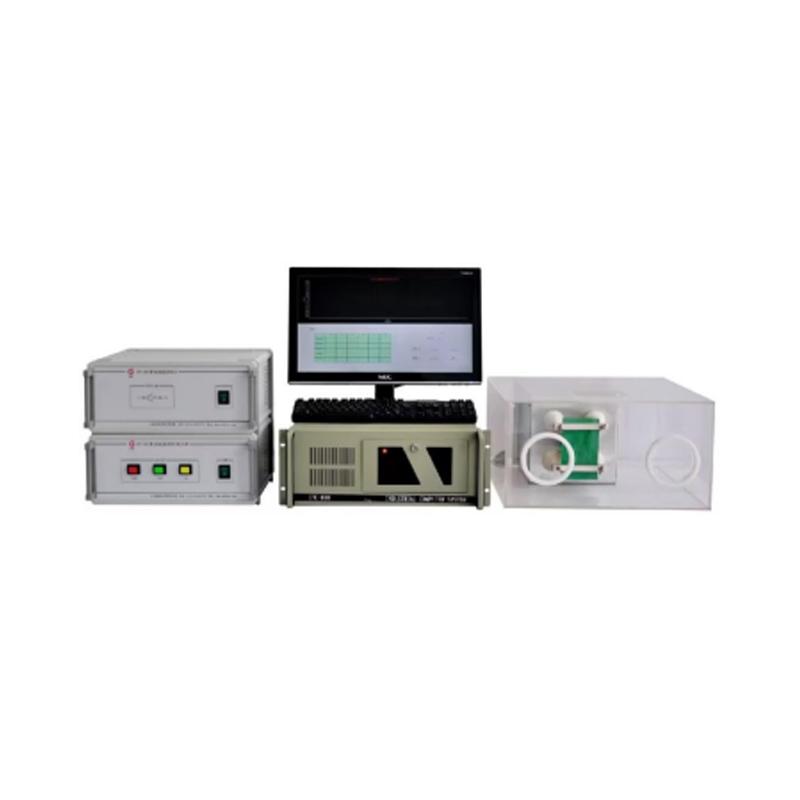

Static Decay Tester apply to test textile and garment, medical protective clothing, non-woven, composite material, thin-film material and other materials after applied ±5000V voltage, from the peak voltage decreased to 10% static decay time.
Standards:
GB 9082-2009, IST40.2(01), YY/T 0867-2011, YY/T 1642-2019, YY/T 1633-2019
Model |
GT-C56 |
Voltage control module |
Electrostatic high voltage source: ±5500V; The vacuum high-voltage relay quickly switches the positive and negative voltages |
Attenuation voltage random test module |
Voltage measurement range: 0 ~±5000V, Error ≤±1% |
Electrostatic decay time test module |
Discharge time and attenuation time range: 0 ~ 99 .99 s/m/h Accuracy: ±0.01s, Error ≤±1% |
Electrostatic sensor |
Rotary blade electrostatic sensor |
