Brand:
GESTERItem NO.:
GT-RC06Order(MOQ):
1Product Detail
Application:

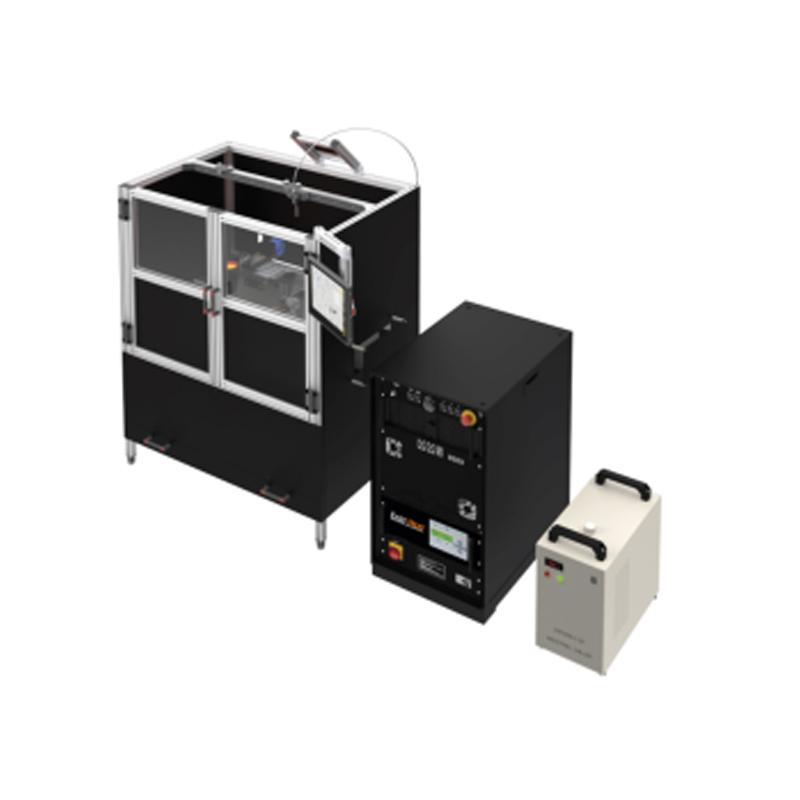

This PPE testing equipment used for testing molten aluminum splash resistance Class D, molten iron splash resistance Class E, etc., of fabrics such as heat-insulating protective clothing and heat-insulating gloves.
EN 407, ISO 9185, ISO 11612, GB/T 38306, ASTM F955 (requires computer control type)
The sample is fixed on a frame at a certain angle to the horizontal plane, and molten metal is poured onto the sample. The thermal protection performance of the sample is evaluated by observing the changes of the PVC simulated artificial skin placed on the back of the sample. Based on the damage result of the PVC film, the test is repeated with more or less metal until the minimum amount of molten metal causes damage to the PVC film.
The metal is heated by a high-frequency heating device with an output power of 6kW, and a high-performance glass fiber laser pyrometer can automatically determine the pouring temperature. The pouring temperature, ranging from 700°C to 1800°C, can be set, monitored and controlled in the software. The tilting speed and tilting angle of the crucible can be controlled and adjusted by a stepper motor to achieve automatic pouring.
Model
GT-RC06A
GT-RC06B
Control Mode
Touch screen
Computer control
Laser pyrometer range
≥ 700~1800℃
Emissivity range
≥ 0.100~1.100
High-frequency heating device
for metal heating
Output power ≥ 6kW, max. temperature ≥ 1800℃, distance from the pouring position < 30cm; pouring temperature can be set, monitored and controlled in the software.
Frequency range of the high-frequency heating device
≥ 150~450 kHz
Molten metal pouring device
Sample holder with coupling, height/angle adjustable, rotation angles 0°, 60°, 70°, 75°
PVC film calibration device
EN ISO 9185
Cooling method
Water cooling
Environment
10–30℃
Installation
Landing
Customer-supplied
Suction hood smoke exhaust device;
Tap water (inlet & outlet) or optional chiller;
Balance 1000g, accuracy ±1g;
Muffle furnace or high-temperature drying oven (for PVC film calibration);
Protective equipment: Protective gloves, Protective face shields, aprons, leg guards;
Power supply
Three phase 380V 50Hz 6000W
Dimension
130*96*160cm (LXWXH)
Weight
Around 360kg
Accessories
Standard accessories
Model
GT-RC06A
GT-RC06B
1set
Touch Program Controller
Software & Computer
1pc
Optical Pyrometer
1pc
High-Frequency Generator and
High-Frequency Induction Furnace
1pc
Crucibles
1pc
Sand Table
1pc
Foot Switch
1roll
ISO 9185 PVC Film (5 meters)
1pc
ISO 9185 PVC Film Calibration Device
Optional
/
ASTM F955 Sensor Board
Optional accessories
Optional
Chiller Unit
