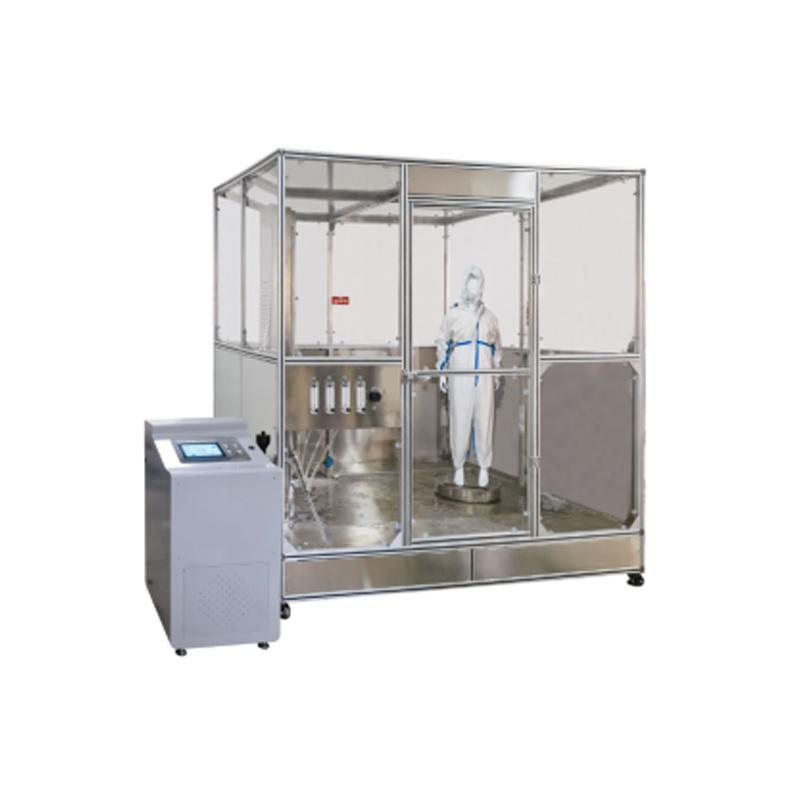

Splash Liquid Penetration Tester Spray Test GT-RC03

Product Introduction

Application:

This machine is used for determination of resistance to penetration by spray of liquid (acid and chemicals).

Standards:

ISO 17491-4, GB 24540-2009,GB 24539-2021

Feature

The Splash Liquid Penetration Tester is with special dummy model.
A turntable is made of waterproof material that rotates at a constant speed.
Water supply system is with pressure gauge and flow regulation device.
The spraying time can be preset and timed automatically.
The whole set of protection system completely surrounds the equipment to ensure the safety and hygiene of the laboratory and effectively protect the safety of laboratory operators.

Key Specification

Model		GT-RC03
Rotation speed of turn table		1rad/min
Turn table		Φ60cm
Spacing between spray nozzles		450mm/600mm (adjustable)
Spray angle of nozzle		75°
Inlet pressure of nozzle		300kPa
Nozzle flow rate		(1.14±0.1)L/min
Time setting range		0～99.99s; Resolution: 0.01s
Test chamber	Dimensions(LWH)	2600mm2400mm2350mm
	Weights	390KG
Control box	Dimensions(LWH)	460mm460mm950mm
	Weights	35KG
