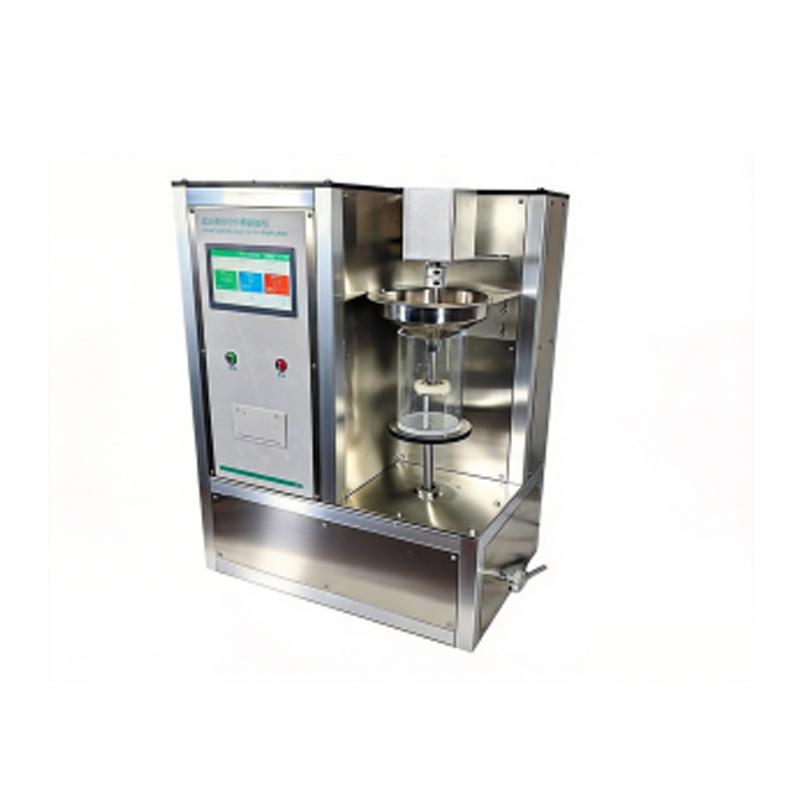

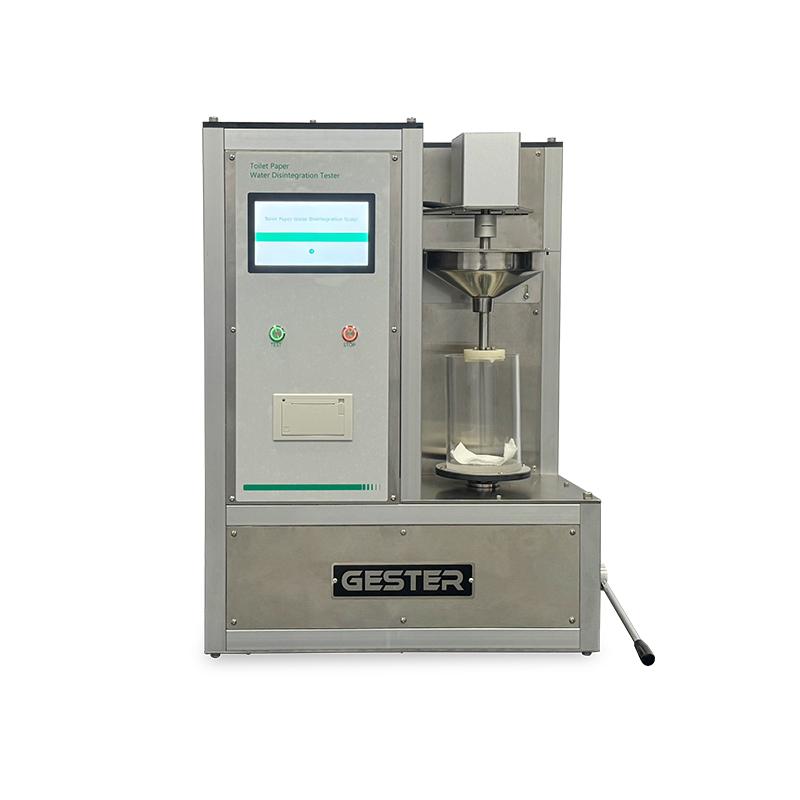

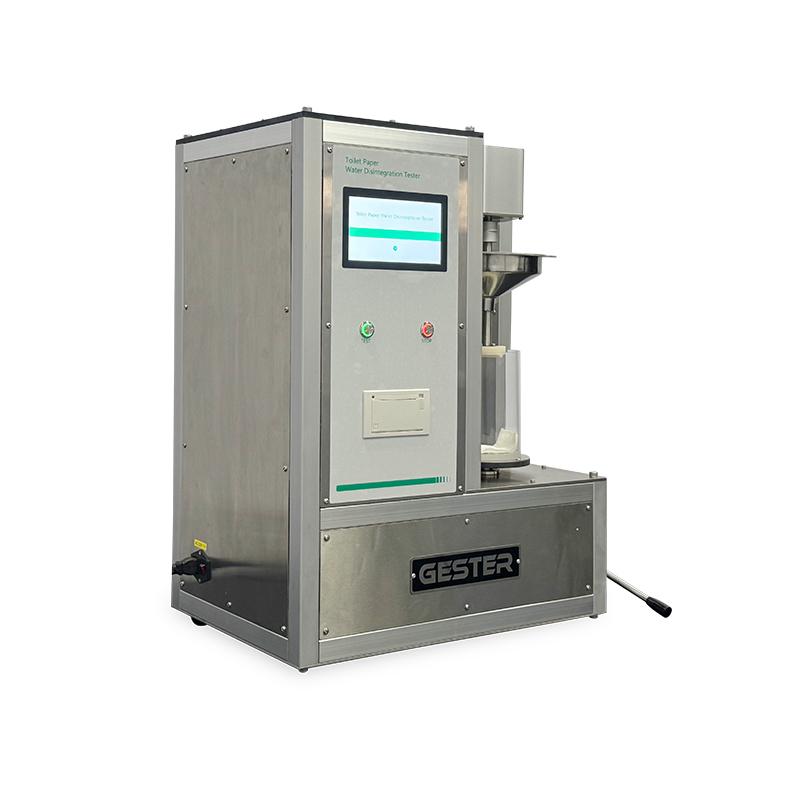

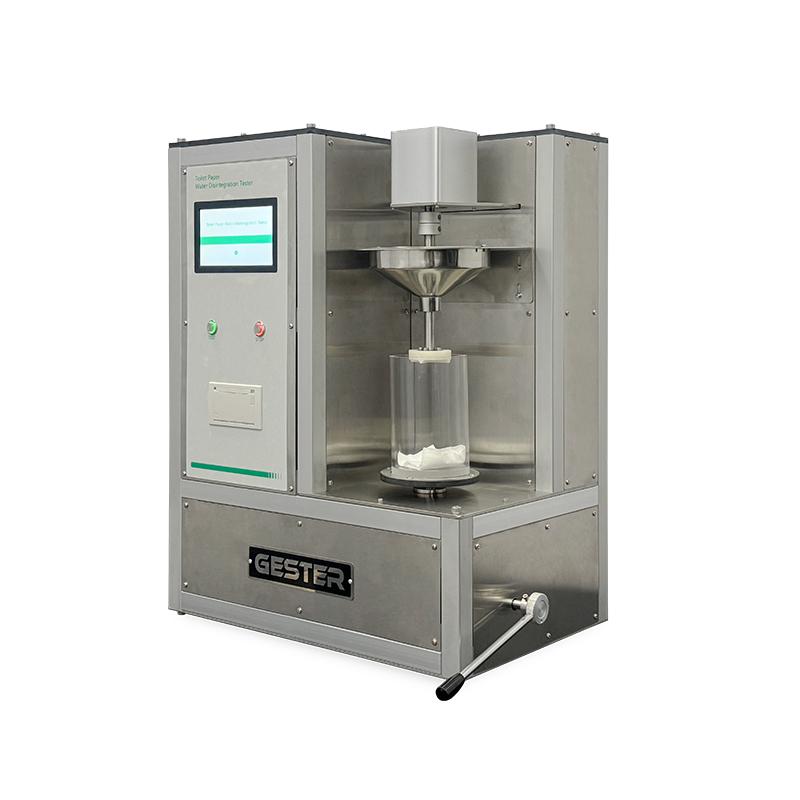

Toilet Paper Water Disintegration Tester GT-CN22

Toilet Paper Water Disintegration Tester GT-CN22

Application:

It is developed in accordance with the technical requirements specified in ISO 12625-17:2021 Tissue paper and tissue products—Part 17: Determination of disintegration in water. It is mainly used to measure the disintegration time of toilet paper in water. This method specifies testing with a defined mass of toilet paper sample and requires that the water disintegration time be less than a specified standard value.

Standards

ISO 12625-17 -2021 Tissue paper and tissue products —Part 17: Determination of disintegration in water

A piece of tissue paper or tissue product is placed in a beaker, and an impeller is used to stir it uniformly in water for 30 seconds, 2 minutes, and 10 minutes respectively. After stirring, the contents of the beaker are poured into a specified sieve. If there are residues remaining on the sieve after a certain period of rinsing, the residues are collected for gravimetric analysis to calculate the disintegration percentage after each stirring duration.

This Toilet Paper Water Disintegration Tester is particularly suitable for testing the disintegration performance of toilet paper. Meanwhile, it can be used by various quality control units such as research institutions, quality inspection institutes, and entry-exit inspection and quarantine bureaus to inspect products from enterprises, making it a widely applicable instrument.

The product is extensively used in medical device manufacturing enterprises, local quality inspection systems, third-party testing institutions, colleges and universities, scientific research institutes, and other relevant units.

• Intelligent embedded operating system, user-friendly interface design, what you see is what you get.
• Toilet Paper Water Disintegration Tester 7-inch color screen with high-definition display.
• Touchscreen control, man-machine dialogue mode, easy to operate.
• Made of stainless steel, resistant to aqueous solutions and easy to clean.
• Supports free disintegration testing at 30 seconds, 2 minutes and 10 minutes.
• On-screen prompts for test procedures and audible alarms during testing to guide the next operation.
• Stirrer rotates at 800 rpm, equipped with PTFE rotor.
• Propeller diameter: 60±1 mm, height: 17±1 mm, with 4 cross-shaped blades.
• Standardized shower head, configurable with spray digital flow meter.
• Standard RS232 data communication interface for convenient data export and external connection.
