Toilet Tissue Paper Ball Burst Strength Tester GT-CN23

Toilet Tissue Paper Ball Burst Strength Tester GT-CN23 Touch screen control, factory direct sale, Professional after-sales team.
  • Brand:

    GESTER
  • Item NO.:

    GT-CN23
  • Order(MOQ):

    1
  • Lead Time:

    10-30 days
  • Product Detail

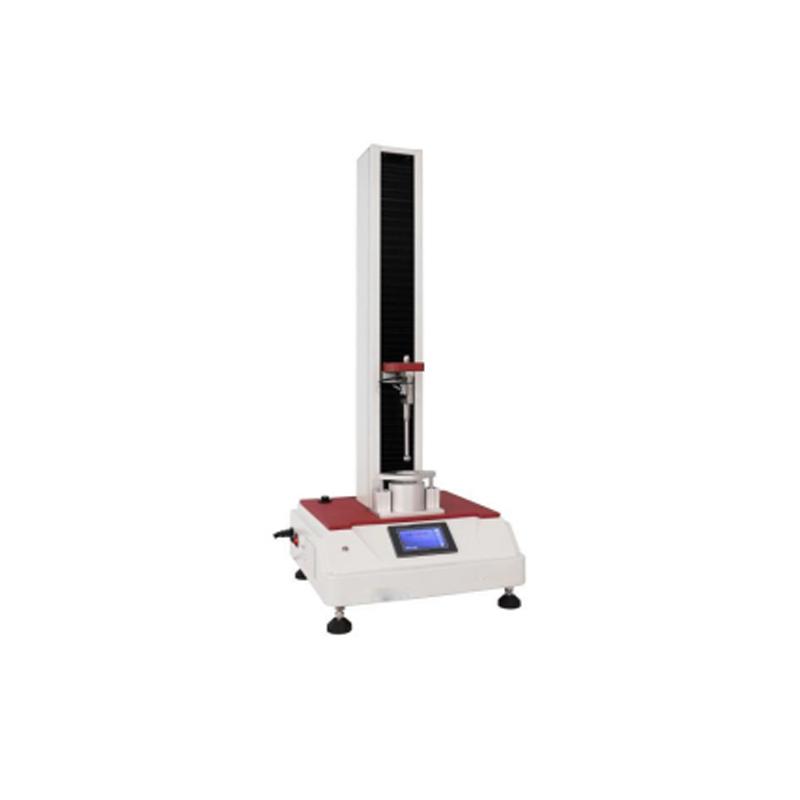

Toilet Tissue Paper Ball Burst Strength Tester GT-CN23


Product Introduction

Application:

Applied to determine the spheroidal bursting resistance test or penetration resistance of toilet tissue paper.



Standards

GB/T 24328.7《Determination of ball burst strength》

ISO 126259《Determination of ball burst strength》

GB/T 20810-2018 Toilet Tissue Paper(Including toilet tissue base paper)


Feature

1.Touch screen control, with Chinese & English menu, man-machine dialogue mode, convenient operation.

2.Built-in thermal printer is convenient for quick printing of test results on site.

3.Professional computer analysis software can realize two-way operation with computer. Report statistics, visual analysis of graphs, etc.

4.High-precision sensor, good linearity, strong stability; stepper motor drive, ball screw drive.

5.Pneumatic clamping, convenient for loading and unloading samples, improving test efficiency.


Key Specifications



Mode

GT-CN23

Force Range

0.0150N  Resolution: 0.01N

Test Speed

1150mm/min

Fixture Inner Diameter

89±0.2mm

Steel Ball Diameter

16±0.05mm

Power Supply

AC220V 50Hz 100W

Dimension

450×450×750mm

Weight

35kg
