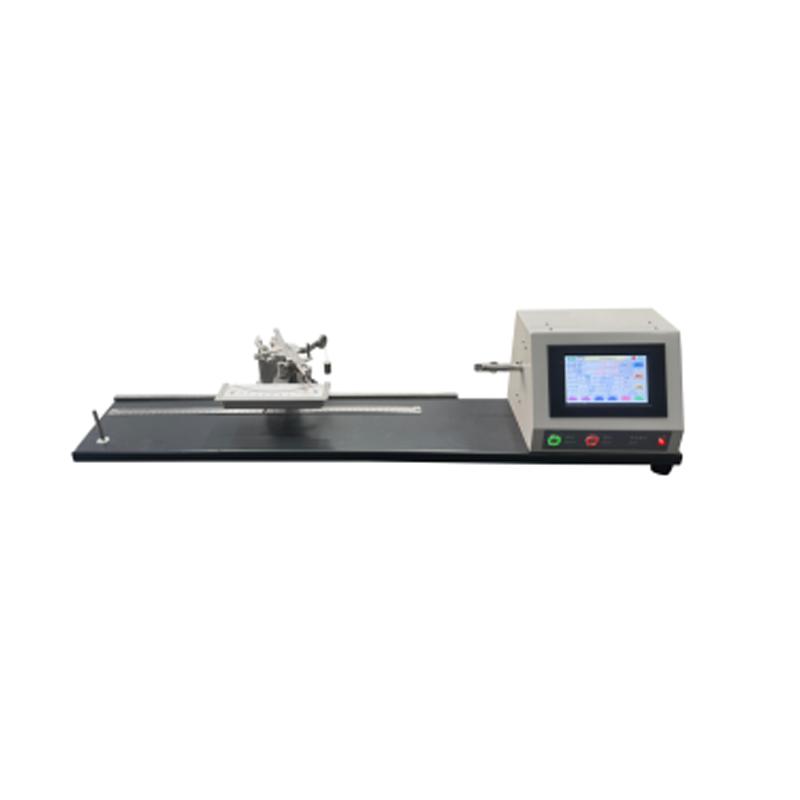

Touch Screen Twist Tester GT-A08B

The GT-A08B Touch Screen Yarn Twist Tester is a high-precision digital instrument for measuring yarn twist in single and plied yarns, fully compliant with ISO 2061, ASTM D1422, and ASTM D1423 standards. Featuring a user-friendly touch screen, it supports both the untwist-retwist method and direct counting method to accurately determine S/Z twist direction, TPI/TPM, and twist shrinkage. Designed for textile laboratories, this electronic twist counter utilizes a robust motor-driven system and adjustable tension weights to ensure consistent results across cotton, wool, and synthetic fibers.

Brand:
GESTER
Item NO.:
GT-A08B
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
30 days

Inquire now

Product Detail

Touch Screen Twist Tester GT-A08B

Product Introduction

Application:

It is used to determine the twist and twist unevenness of various yarns. Adopting microcomputer control, it features a touchscreen display. It has functions for data storage, retrieval and statistics. electronic twist tester is equipped with a data report printing function. Optional software can be purchased to support computer connection for data processing.

Standards:

GB/T2543.1.2, 14345, ISO2061, BS2085, ASTM D1422,1423, JISL1095

Twist Tester Key Specifications

Model	GT-A08B
Control mode	Touch screen
Range of the suitable yarn	1-500tex
Testing method	Count directly method One-time untwist-retwist method
Length of sample	0-500mm(adjustable)
Range of twist testing	1~9999.9
Rotating speed	800~1500r/min
Dimensions	1080 x 275 x 216mm ( L x W x H )
Weight	20kg

Yarn Quality Testing Solutions

Setting up a professional textile laboratory requires a combination of precision, efficiency, and compliance. GESTER provides a full range of instruments to evaluate the physical properties of yarn from twist to strength:

1. Twist Analysis (The Core)

Premium Option: GT-A08B Touch Screen Twist Tester
Standard Option: GT-A08 Electronic Twist Tester: The reliable industry workhorse for standard digital twist counting.
Budget Option: GT-A07 Manual Yarn Twist Tester: Perfect for quick checks and entry-level quality monitoring.

2. Tensile & Strength Testing (Performance Evaluation)

GT-A02A Electronic Single Yarn Strength Tester: Essential for measuring the breaking tenacity and elongation of single yarns (ISO 2062 compliant), ensuring the yarn can withstand high-speed weaving.

3. Linear Density & Sampling (Pre-Testing Preparation)
