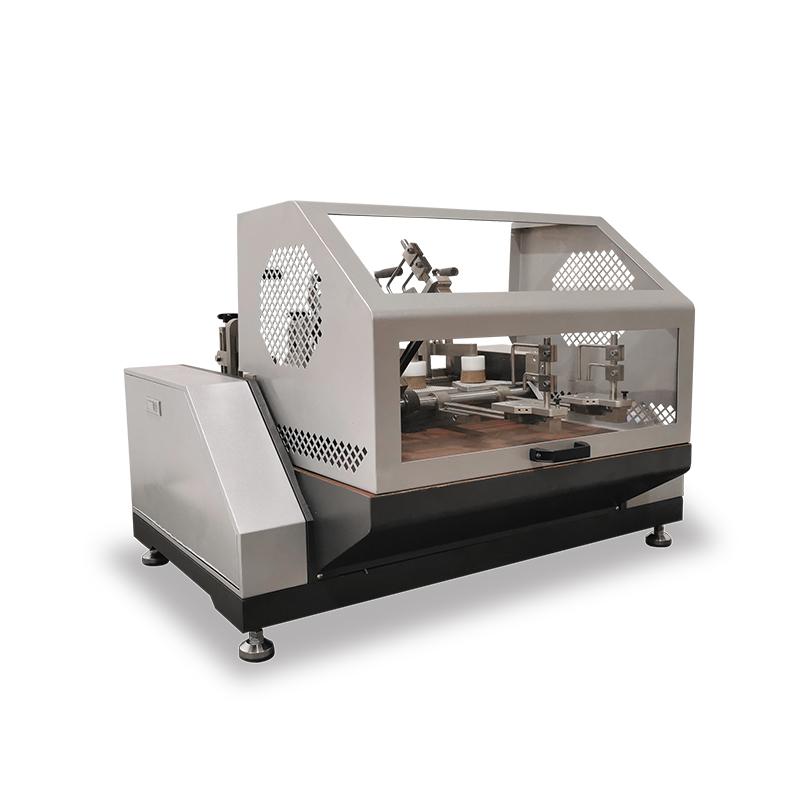

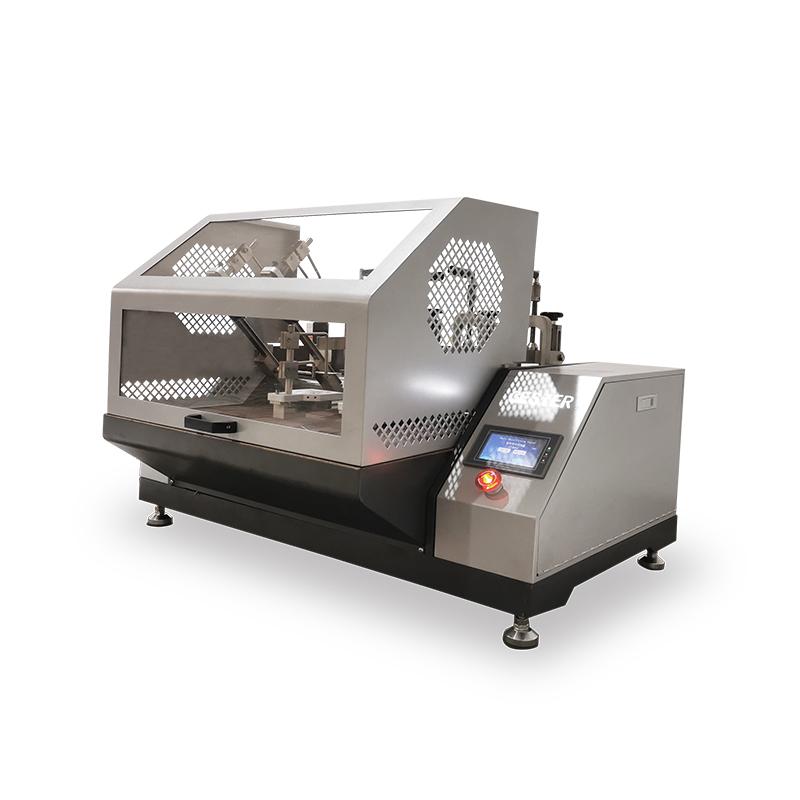

Whole Shoes Flexing Tester GT-KA01-2

The GESTER Shoe Flex Tester GT-KA01-2 is an industrial-grade footwear testing apparatus designed to evaluate the flexing endurance and crack resistance of finished shoes (sports, casual, and safety footwear) under controlled dynamic fatigue. Fully compliant with SATRA TM92, ISO 24266, and HG/T 2871, this tester features an acrylic noise-reduction safety cover, low-friction linear slide heel fixtures, and intelligent touch-screen control. Available in 2-station and 4-station configurations to meet diverse laboratory throughput requirements.

Brand:
GESTER
Item NO.:
GT-KA01-2
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
Have in stock

Inquire now

Product Detail

Whole Shoes Flexing Tester | SATRA TM92 & ISO 24266 Footwear Flex Resistance Testing Machine

Product Introduction

Application:

The whole shoes flexing tester is used to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexibility resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.

Feature

1. Shoe Flexing Testing Machine Equipped with acrylic protective cover, which make sure safe operation and low noise.
2. Heel fixture using linear slide for smooth movement with little resistance.
3. Freely set running times and machine automatically stop after test finished.

Key Specifications

Model	GT-KA01-2A	GT-KA01-2B
Test sample	Test 4 samples simultaneously	Test 2 samples simultaneously
Control method	Touch screen control
Bending angle	0~ 90° (adjustable)
Test speed	0°~50°, adjustable speed range: 60~230 rpm 50°~90°, adjustable speed range: 60~140 rpm
Counter	0-99,999,99 (7 digits)
Power	1∮AC 220V 50/60HZ 3A
Dimension(W×D×H)	95 x 76 x70cm	58 x 74 x 72 cm
Weights	223kg	About 150kg
Standards	SATRA TM92, ISO 24266 Method A, HG/T 2871-2022 Method B

Accessories

Standards accessories	1set	Heel clamp
	1set	Plastic pad
	1set	Spanner
	1pc	Power line

Shoes Flexing Tester

Application Industry

All the material blow can be tested on the Shoes Flexing Tester

Shoes Flexing Tester
