Yarn Coefficient of Friction Tester GT-A32

Yarn Friction Tester is suitable for measuring the static friction coefficient and kinetic friction coefficient.

Brand:
GESTER
Item NO.:
GT-A32
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
30 Days

Inquire now

Product Detail

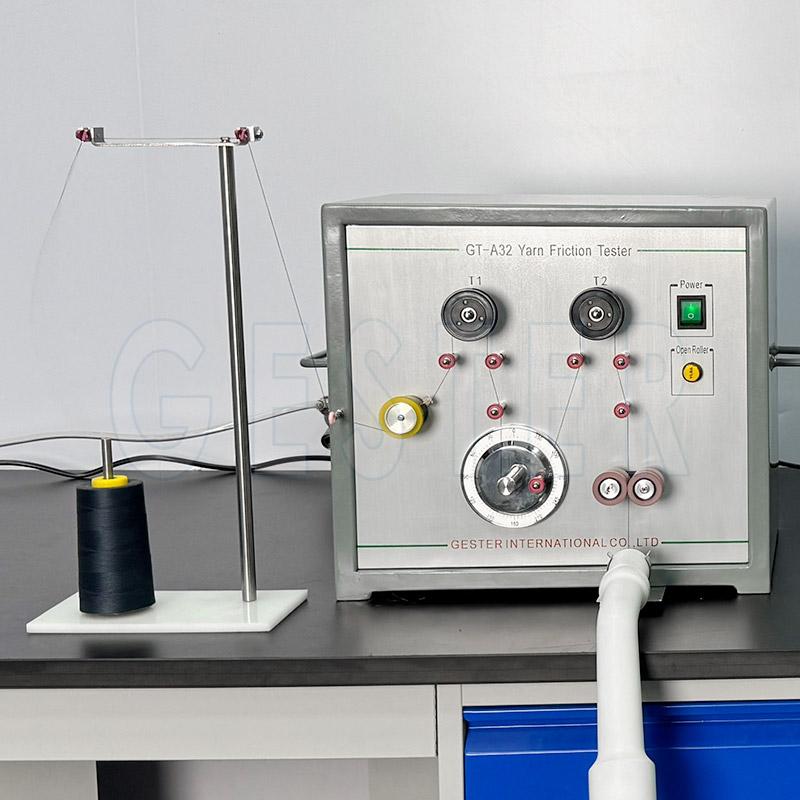

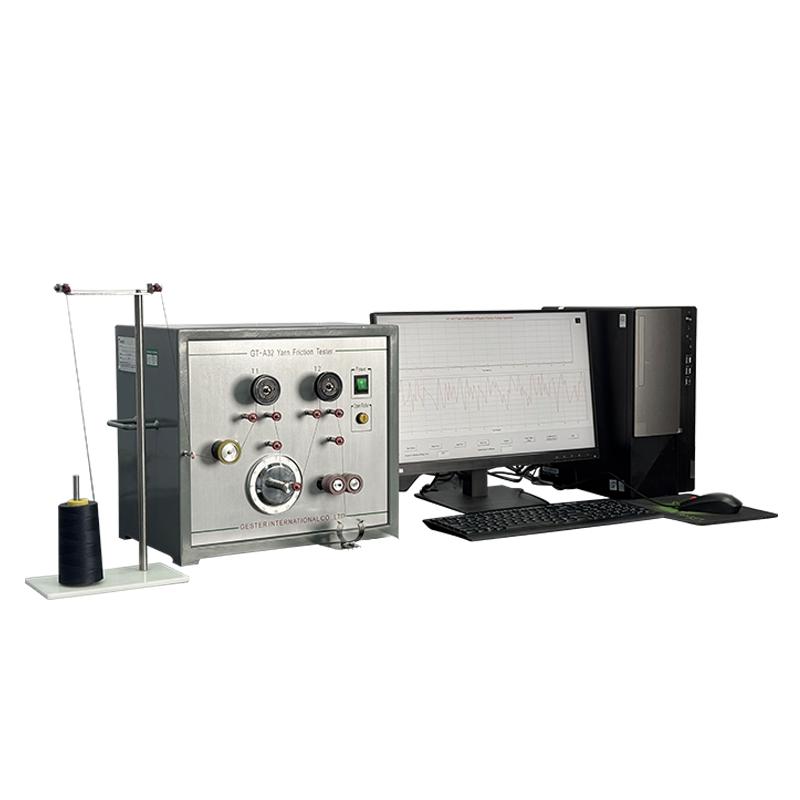

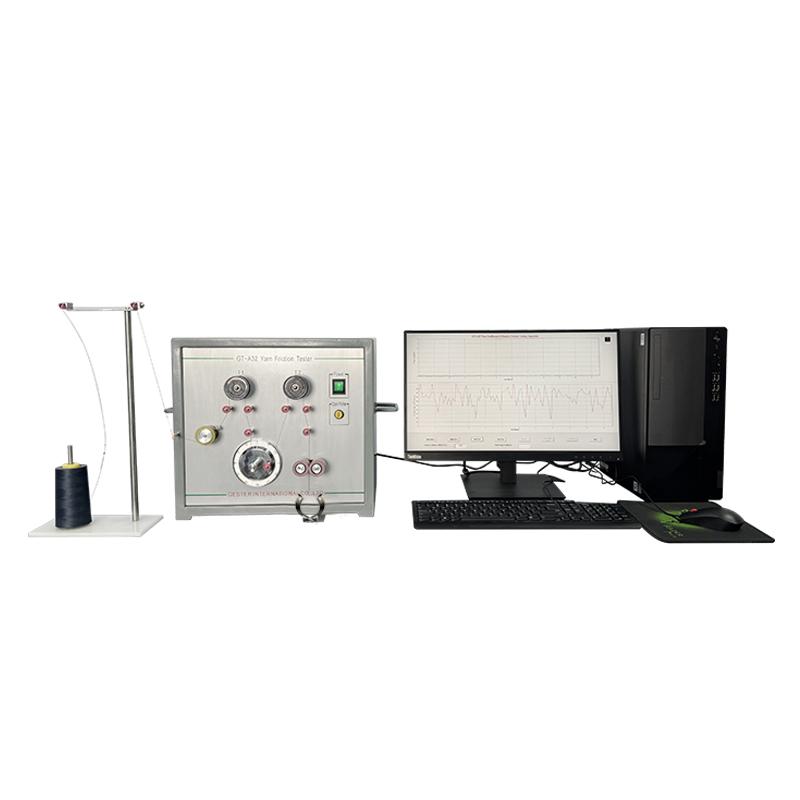

Yarn Coefficient of Friction Tester GT-A32

Product Introduction of yarn friction tester

Application:

Yarn Friction Tester is suitable for measuring the static friction coefficient and kinetic friction coefficient of filament yarn with different solid materials. Computer automatically calculate the friction coefficient with input tension and output tension value by using formula.

Standards:
ASTM D 3108-2013, T/CNTAC 4-2017

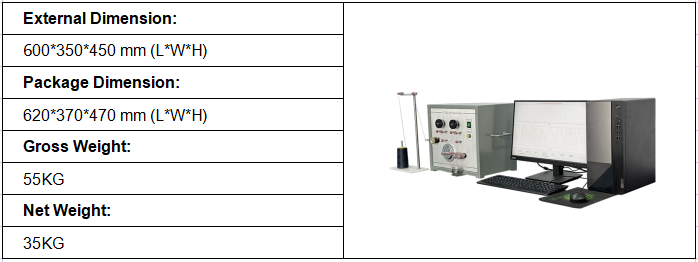

Dimensions of yarn friction tester

Yarn Friction Tester

Feature of yarn friction tester

1. Computer control and automatic data processing.
2. Test the tension with high precision.

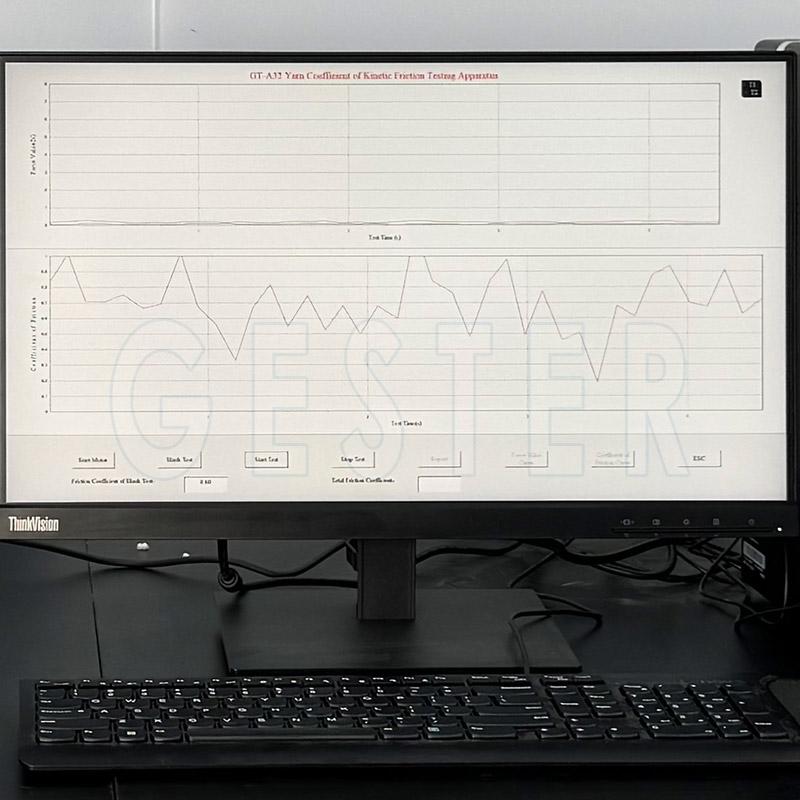

3. Display input tension, output tension and friction coefficient on computer.
4. Possible to determine different kinds of filament yarn.
5. Adjustable winding angle.
6. Adjustable pretension and Adjustable speed.

Key Specifications of yarn friction tester

Test tension	0~500cN
Tension accuracy	±1%
Friction coefficient	0<µ<1
Friction angle	0~360°
Pretension	0~24cN
Yarn test speed	100m/min
Power	300W
Power supply	220V 50Hz
Dimensions	600x350x450mm (L x W x H)
Weight	35kg
