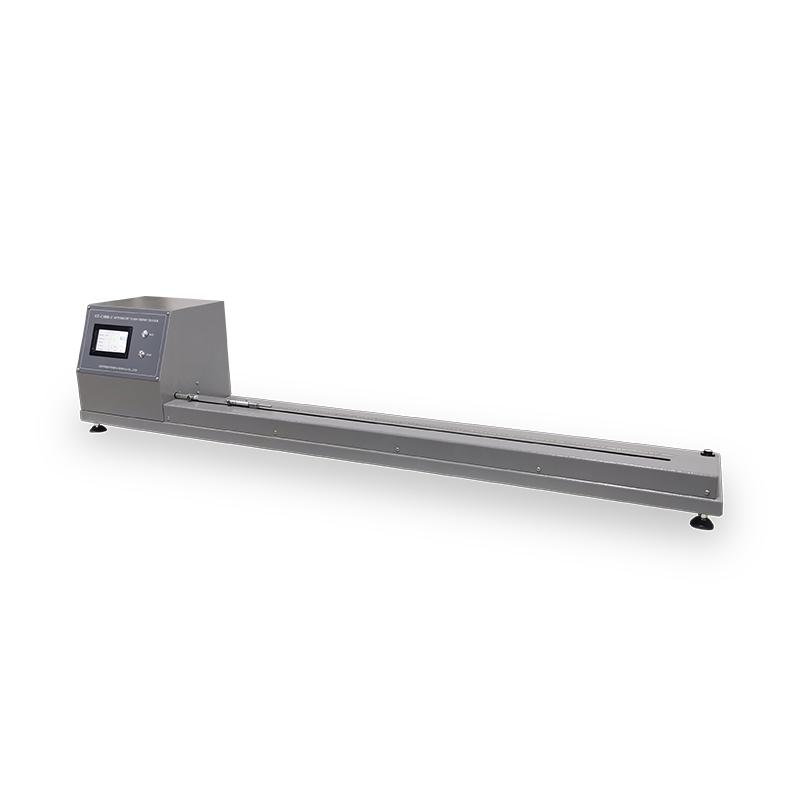

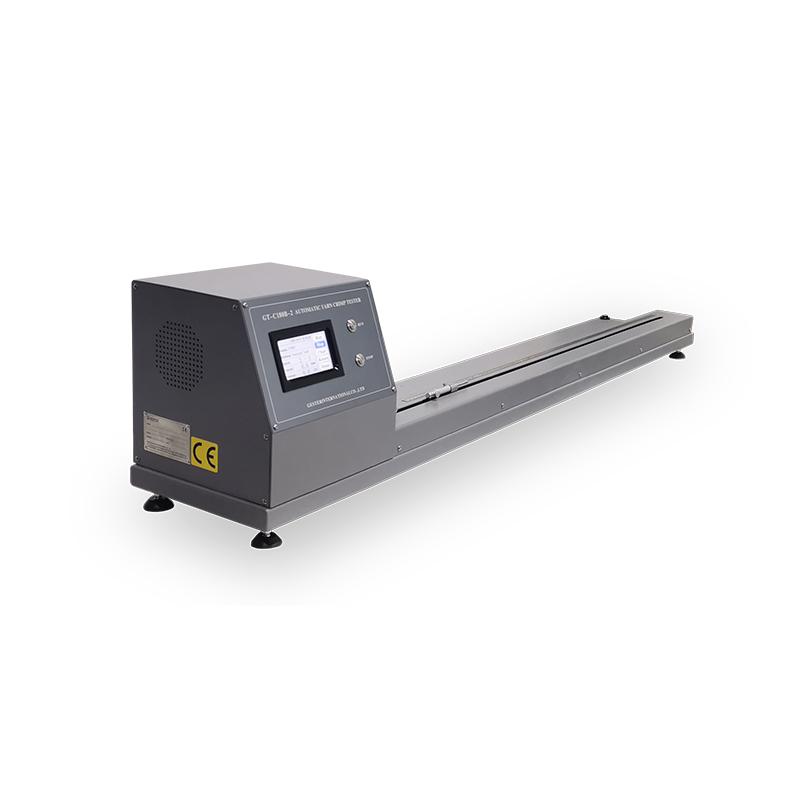

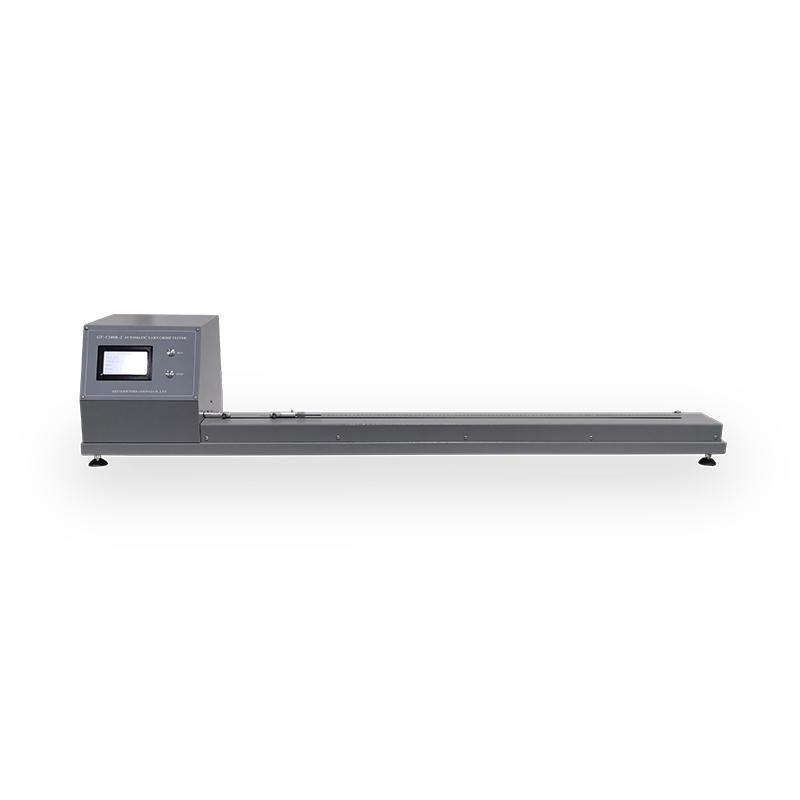

Automatic Yarn Crimp Tester GT-C180B

Automatic Yarn Crimp Tester Touch screen controlling, factory direct sale.

Brand:
GESTER
Item NO.:
C180B
Order(MOQ):
1
Lead Time：
10-30 days

Inquire now

Product Detail

Automatic Yarn Crimp Tester GT-C180B

Product Introduction

Application:

Crimp Tester, to calculate the crimp in yarn affected by knitting or weaving by taking apart the yarn from a piece of given-length fabric, unbending it under given force and measuring its length, to determine actual yarn usage.

Standards:

EN14970, ASTM D 3883, ISO7211-3, ISO 7211-5,

AFNOR G 07-104, AFNOR G 07-101, NF G07-104,

GB/T 29256.3-2012, GB/T 29256.5-2012, FZ/T01091, FZ/T01093,

BS 5441, DIN 53830 Part 3, clause 8.1.2

Feature

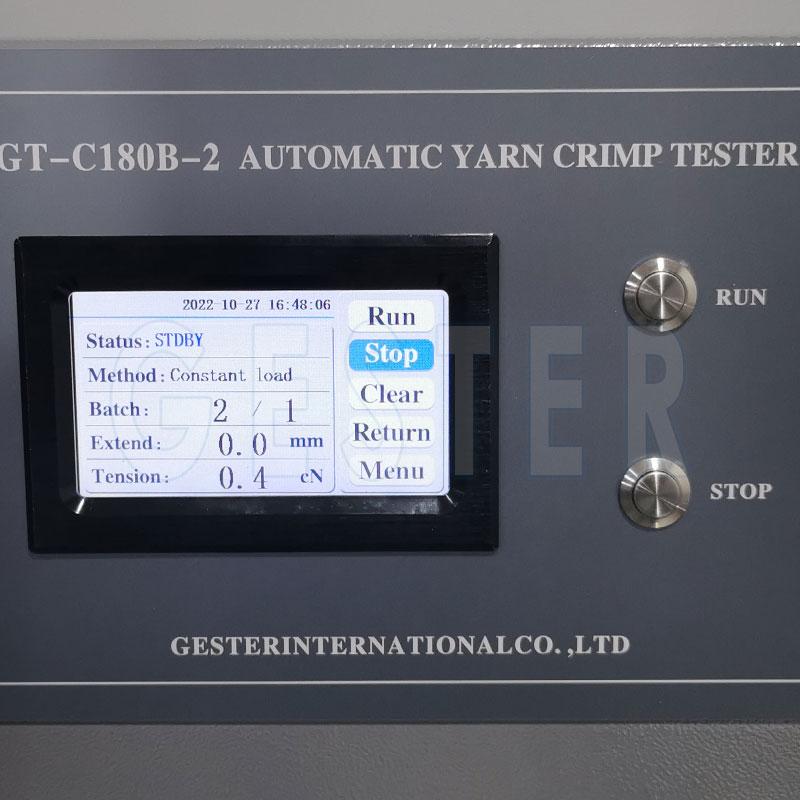

Controlling by a colored touch screen.

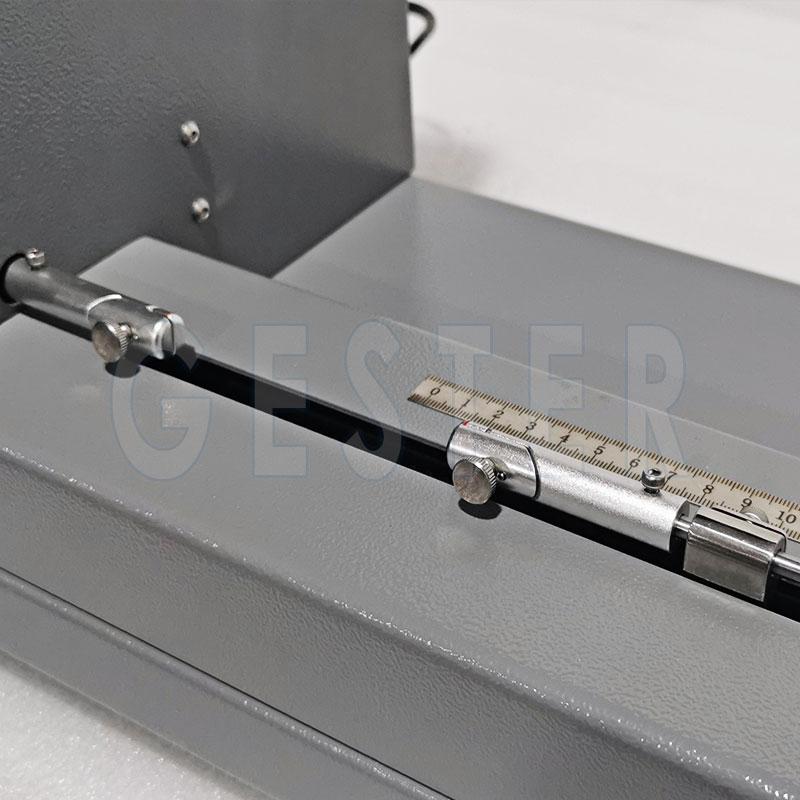

The right fixture can extend automatically with adjustable tensile speed.
Real time displays the value of force and elongation, testing curve can be shown as well.
Yarn Crimp Tester Equip with a high precision loal cell.

Key Specifications

Model	GT-C180B-1	GT-C180B-2
Control mode	Touch screen controlling
Load range	200CN	1000CN
Stroke	10-1000mm
Stroke Resolution	0.01mm
Dimensions	1400 x 200 x 200 mm
Power Supply	AC 220V 50/60HZ
Weight	50Kg
