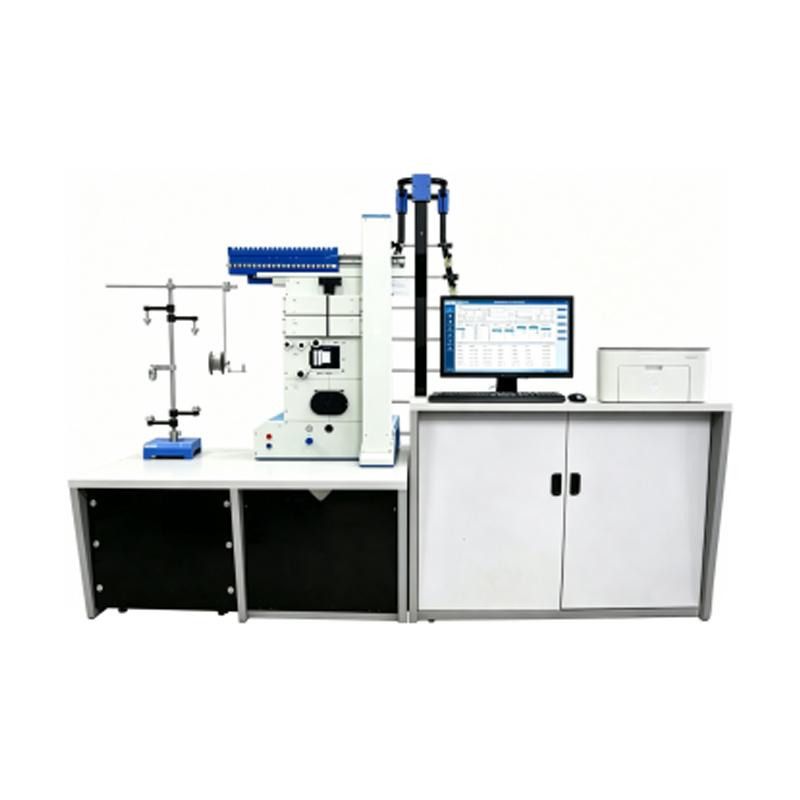

Yarn Evenness Tester GT-A14-4000

The Evenness Tester GT-A14-4000 is a high-precision, automatic yarn testing instrument combining dual capacitive and photoelectric technologies. it provides real-time CVm%, hairiness, and 3D fabric simulations for global spinning mills and textile laboratories. Built by an ISO-certified manufacturer with reliable worldwide shipping.

Brand:
GESTER
Item NO.:
GT-A14-4000
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
30 Days

Inquire now

Product Detail

Yarn Evenness Tester GT-A14-4000 | Textile Quality Control Testing Machine

Product Introduction

GT-A14-4000 Evenness Tester is a precision textile testing instrument integrating optical, mechanical, electrical and pneumatic technologies. It is used to test yarn evenness, linear density variation, diameter and its fluctuation, surface hairiness, impurity size and content, so as to comprehensively evaluate yarn quality. As essential testing equipment for textile enterprises in quality inspection and control, it is applicable to pure and blended yarns of cotton, wool, silk, linen and staple synthetic fibers.

Feature

Adopts dual capacitive and photoelectric detection to simultaneously test mass and diameter unevenness for scientific and comprehensive yarn quality evaluation.
Fully automatic measurement with automatic yarn feeding, groove switching and roller reciprocation.
Real-time detection of CVm%, Um%, H, SH, D, CVD%, graded yarn faults, as well as size and content of impurities and dust.
Equipped with 6-level DR and 3-level △DR values for analysis of abnormal long thick and thin places.
High-speed dual active yarn traction system, with a maximum testing speed of 800m/min.
Provides multiple analysis graphs including evenness and hairiness curve, spectrogram, variance-length curve, linear density frequency distribution curve and offset-threshold graph.
170-channel spectrogram enables accurate judgment of equipment faults and yarn defects.
Built-in 3D fabric simulation system, which automatically generates yarn profile, electronic blackboard, woven and knitted fabric renderings with adjustable fabric structures.
Integrated expert analysis system for automatic diagnosis and analysis of each production process.
Supports slub yarn testing, detecting slub length, spacing, multiple and other core indicators.
Impurity detection function outputs average size, per-kilometer and per-gram content and distribution graph of impurities and dust.

Key Specifications

Model		GT-A14-4000
Machine	Traction time	Adjustable from 10s to 20min in 10s increments
	Test speeds	4m/min, 8m/min, 25m/min, 50m/min, 100m/min, 200m/min, 400m/min, 800m/min
	Max. batch test times	≤20
	Statistical indicators	mean, max, min, cvb, Q95, S, and statistical graphs
	Input power supply	Voltage AC220V±10%, Frequency 50Hz/60Hz, Power consumption ≤350W
Capacitive test	Capacitive measuring cell	4 pcs
	Measurement range	1 tex ~ 12 ktex
	Coefficient of variation CVm%, Um%	Testing range: 0.01% ~ 99.99%
	Imperfection values	Thin : -30%, -40%, -50%, -60%
		Thick: +35%, +50%, +70%, +100%
		Neps : +140%, +200%, +280%, +400%
	DR value	DR(20cm,+35%)、DR(20cm,-30%)、DR(1m,+5%)、DR(1m,-5%)、DR(1m,+15%), DR(1m,-10%)
	DR value	△DR(1m)%、△DR(20cm)%、△DR(1cm)%
	Spectrogram range	1cm–2937 m (170 standard channels, 340 fine channels)
	Variance-length curve cut length	1 cm–1472 m
	Linear density frequency diagram	2 diagrams covering -100%~+100% and above +100%
	Offset rate threshold diagram	deviation rate curves with reference lengths of 1 cm, 10 cm, 20 cm, 50 cm, 1 m, thresholds from 0% to 50%
Photoelectric test	Diameter D testing range	≤3mm
	CVD% variation coefficient testing range	0.01%~99.99%
	Yarn fault	Thick D: 2mm~16mm, +35%~+100%
	Yarn fault	Thin D: 2mm~16mm, -60%~-30%
	Equip with	Electronic blackboard function and fabric simulation system
Hairiness test	Measurement range	1tex~160tex
	Hairiness level & variation	H value, SH value
	Spectrogram range	1 cm–2937 m (170 channels)
	Variance-length curve cut length	1 cm–1472 m
	Offset rate threshold diagram	Deviation rate curves with reference lengths of 1 cm, 10 cm, 20 cm, 50 cm, 1 m, thresholds from 0% to 50%
	Curve	Positive and negative offset rate curve
Impurity test	Average impurity size	Impurity count per kilometer, impurity count per gram
Impurity test	Average dust size	Dust count per kilometer, dust count per gram Impurity and dust histogram
