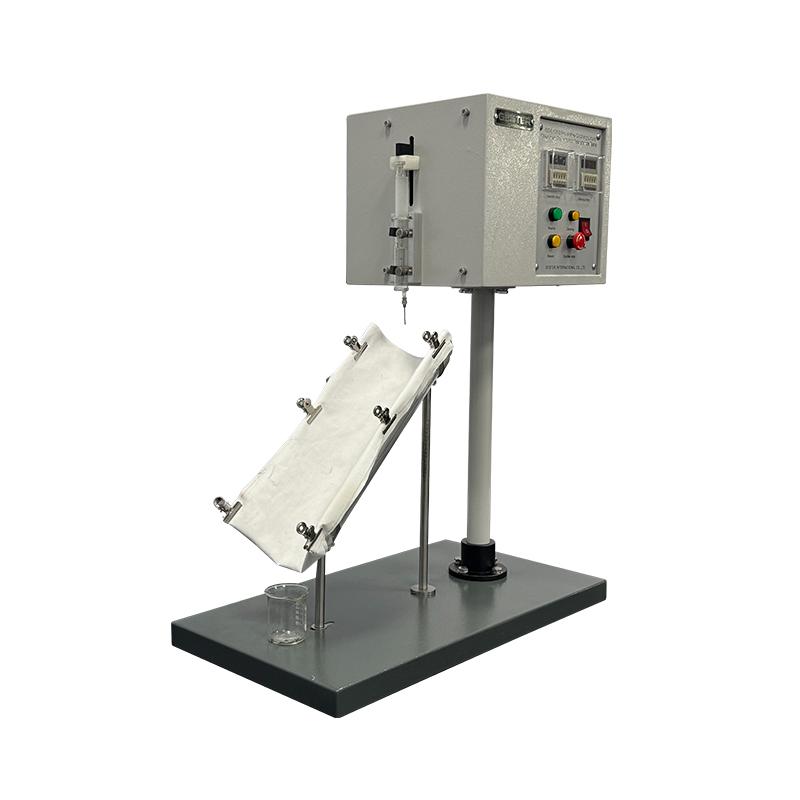

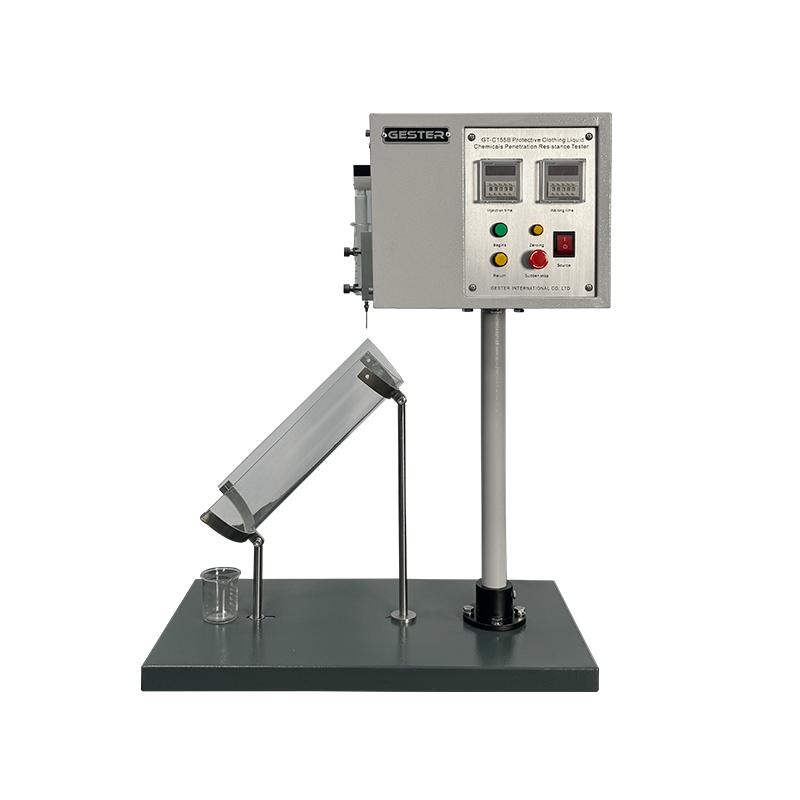

Protective Clothing Liquid Chemicals Penetration Resistance Tester GT-C155B

Product Introduction

Application:

This machine is to test the resistance of protective clothing materials to penetration by liquids.

Standards

BS EN ISO 6530

Working Principle

A measured volume of a test liquid is applied in the form of a fine stream or jet to the surface of a clothing material resting in an inclined gutter. Determination of the respective proportion of the applied liquid which penetrate a test specimen and which are repelled by surface indicates the potential of the material for use in the described field of application.

Key Specification

Model	GT-C155B

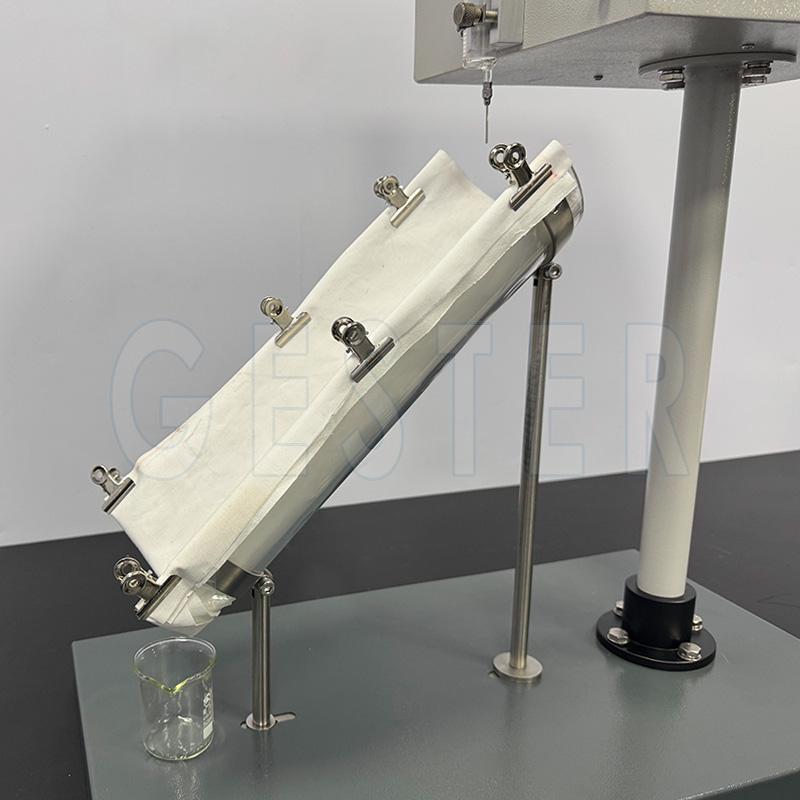

Semi-cylindrical rigid transparent gutter	Internal diameter: (125±5)mm Length: (300±2)mm Inclination: 45°

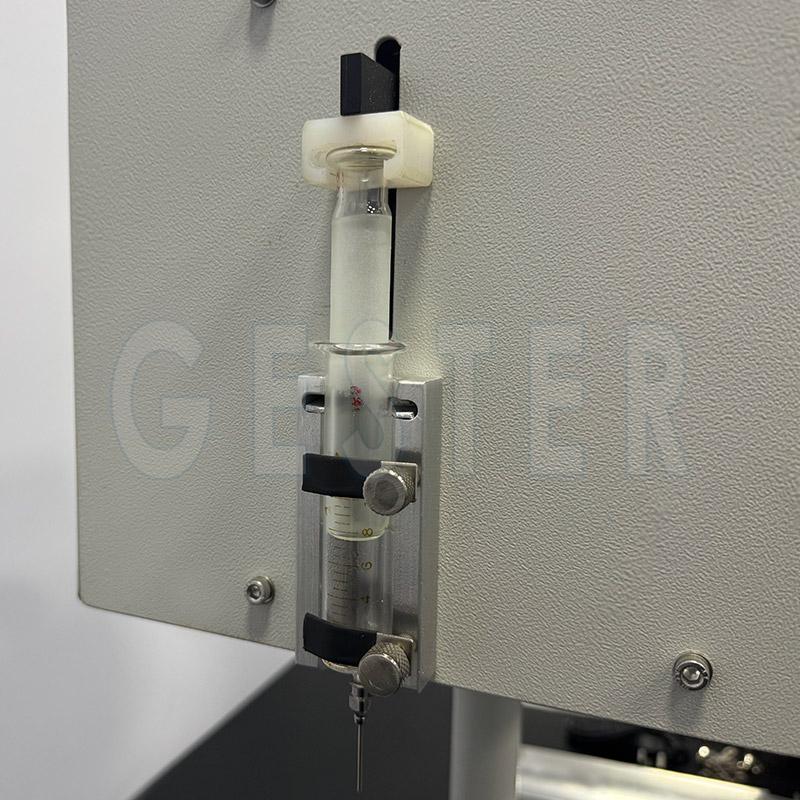

Continuous syringe system	Volume: (10±0.5)cm³ Diameter of the bore: (0.8±0.02)mm
Pre-tension	(140±7)g
Small beaker	Volume: 50ml
Distance between the bottom of needle and specimen	(100±2)mm
Size of specimen	(360±2)mm×(235±5)mm
