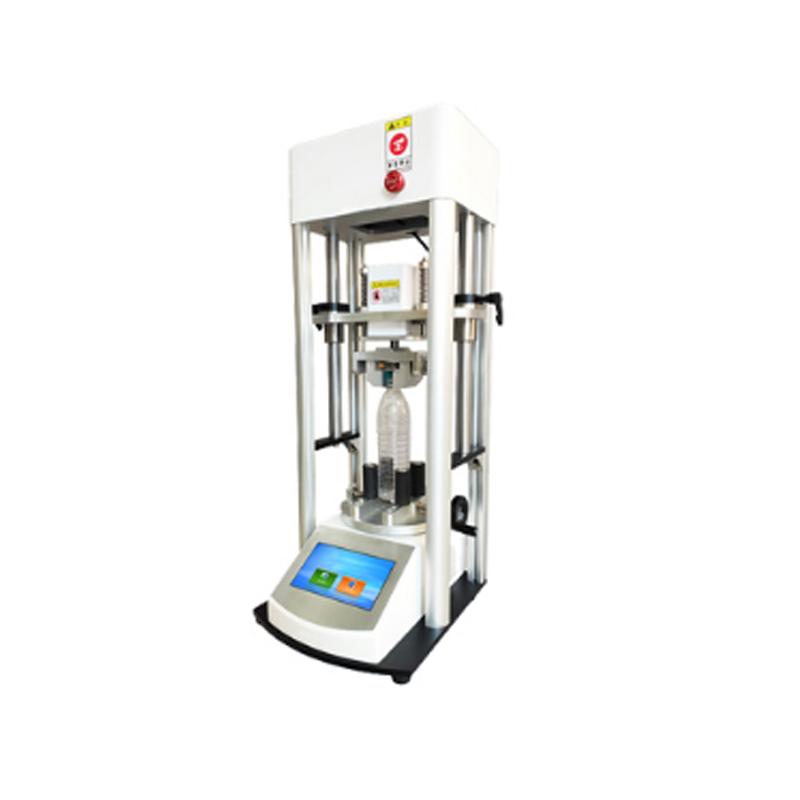

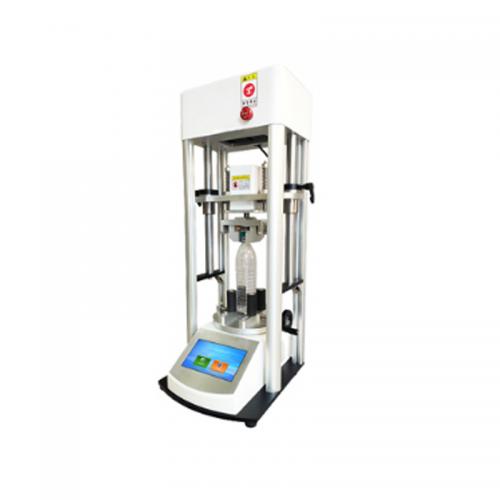

Automatic Cap Torque Tester GT-N81B

Product Introduction

Application:

It is a specialized instrument designed to meet the relevant national standards for packaging bottle caps. Suitable for the torque value of bottle cap opening and locking for vial, beverage bottles, mineral water bottles, feeder, oil drums, etc. Also suitable for the bottle cap of standard round or standard symmetrical shape. The torque force can be test automatically by rotate clockwise and counterclockwise, and record the max torque value. Widely used in quality inspection institutions, food, medicine, cosmetics and other industries.

Cap Torque Tester Standards:

GB/T 17876, BB/T 0025, BB/T 0034(GB/T 14803), ASTM D 2063, ASTM D 3198, ASTM D 3474

YBBOOl12002-2015, YBB00122002-2015, YBB00262002-2015

Bottle cap torque tester Feature

Microcomputer control technologym, fully automatic design, open structure, friendly HCI, easy operation.
Unit: N·m, kg·cm, ib·in (convertibility).
Force save function, the max force can be saved.
Result store function, 1000 groups results (Any result can be counted and printed).
High precision torque sensor, measuring accuracy level 0.5.
LCD display, highly resolution clear screen display.
High speed micro printer output, low noise, no need to replace ribbon, easy to replace paper roll.
Built-in calibration program, easy to measure. With external calibration certificate.
Meet latest GMP requirement:Password login and 3 level permission management.

Automatic cap torque tester Key Specification

Model	GT-N81B
Test range	0-5.00 N·m (Other ranges are optional)
Test unit	N·m kg·cm ib·in
Test accuracy	0.5 level
Test mode	Peak value test(opening force), fix value test(loackig force)
Clamp size	3mm-180mm
Data store	1000 groups (Any group statistics, printing)
Master computer	Connect to PC, data store and print report ( optional accessories)
Use privilege	Password set and 3 level permission management
Dimension	470 mm×440mm×800 mm (L×W×H)
Weight	40kg
Power Supply	AC 220V±10% / 50Hz
Standard accessories	Power line Printer paper
Option accessories	Customized fixtures Software
