Chemical Filament Evenness Tester GT-A14C

Yarn Testing Equipments Manufacturers

Brand:
GESTER
Item NO.:
GT-A14C
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
30 Days

Inquire now

Product Detail

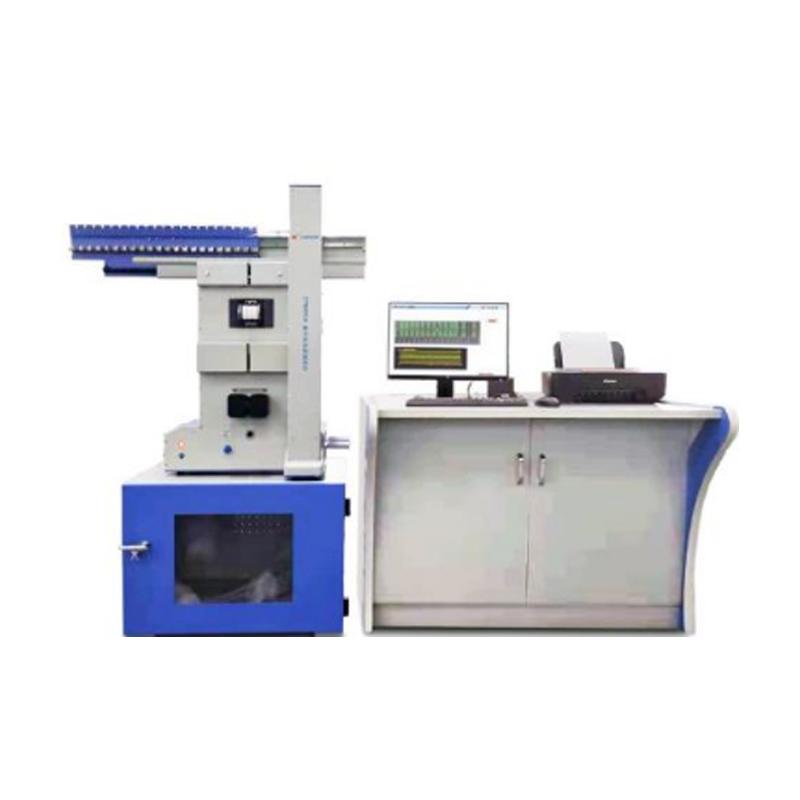

Chemical Filament Evenness Tester GT-A14C

Product Introduction

Application:

It's testing and analyzing instrument for the evenness of chemical filament yarn, developed by integrating computer and electronic technologies. This equipment is designed to measure the linear density irregularity and related characteristic parameters of various chemical filament yarns. It is of vital significance for quality monitoring and quality improvement of chemical filament products, and serves as an essential precision testing instrument for the chemical fiber filament industry.

Feature

The main processor adopts an industrial control computer, with monitoring software built on the Windows 10 platform for easy operation.
The maximum testing speed reaches 800 m/min, which greatly improves testing efficiency.
Equipped with mechanical tension compensation structure to deliver more stable and reliable data.
It can output test indicators including CV% value, U% value and maximum mass deviation.
It supports multiple graphical analysis functions: spectrogram, high-resolution continuous spectrogram, variance-length curve, linear density frequency distribution graph, etc.
The statistical analysis system generates daily, monthly, quarterly and annual test reports for samples, as well as statistical distribution charts of routine indicators.
The testing slave unit features a modular combined structure with elegant appearance and convenient maintenance.
All test data reports and graphical information can be displayed on screen and printed via printer.

Key Specifications

Model	GT-A14C
Capacitance measuring cells	4 pcs
Measurement range	10dtex-1670dtex
Testing speed	25m/min, 50m/min, 100m/min , 200m/min, 400m/min, 800m/min
Testing time	Freely setting between 10Sec~20min
CV(%) or (U%) testing range	0.01% ~ 99.99%
Variation—---length curve	Cutting length 1cm～1475m
Maximum mass deviation	equivalent cut lengths selectable from 0.1 m, 1 m, 3 m, 10 m, 100 m, inert and semi-inert modes
Wave length coverage	1cm～2950m (170 channels for standard spectrum; 340 channels for high-resolution spectrum)
Linear density frequency diagram	2 diagrams covering -100%~+100% and above +100%
Maximum batch test cycles	≤ 20
Tension adjustment	freely configurable within 10 ~ 100%
Twist direction and twist degree adjust	S Twist, Z Twist, 0～30000r/min continuously adjustable
Air pressure range	≤ 0.6MPa
Air compressing flux	≥0 6 m/min
Power supply	1 phase AC 220V± 10% 50/60Hz
