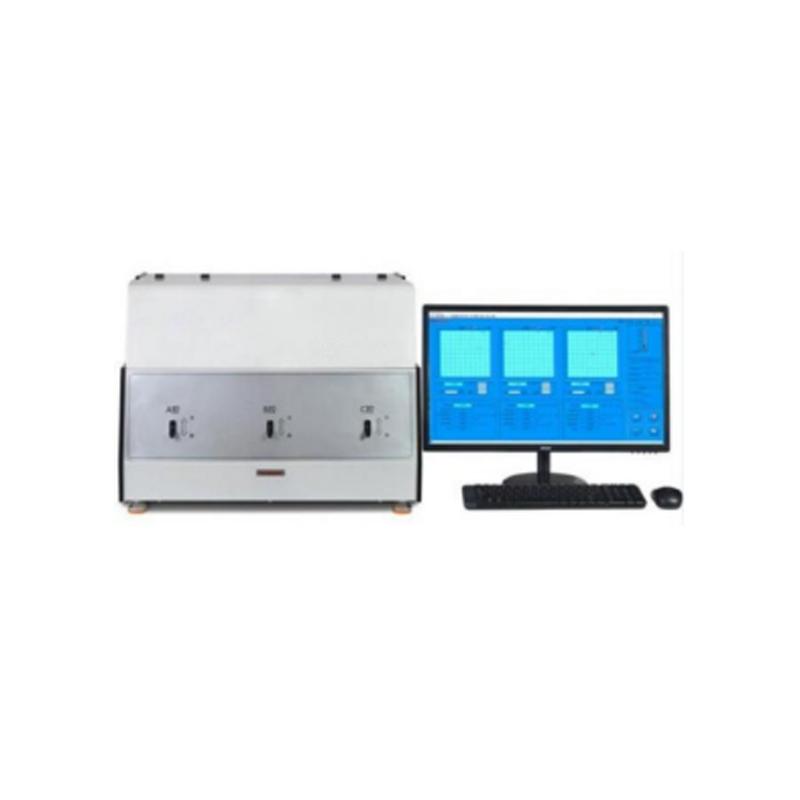

Gas Permeability Tester GT-N102

Gas Permeability Tester GT-N102

Application:

Gas permeability test instrument is used to determine the gas permeability( O2, CO2, N2 and air ) of high barrier material, such as plastic film, aluminum foil plastic membrane, waterproof material, Metal Foil and so on.

Basic Application:

Films, the gas permeability test for various kinds of plastic films, paper-plastic composite films,  geo membrane, co-extruded films, aluminium plating films, aluminum foil composite films, glass fiber aluminum foil composite films and others.

Sheets, Gas permeability test of sheet materials such as engineering plastics, rubber and building materials, such as PP, PVC and PVDC sheets and so on.

Petrochemical, suitable for gas permeability test of conveying pipeline materials, for example CO2 detection of MDPE plastics.

Aerospace material, suitable for gas permeability test of aerospace materials, such as Airship, airbag helium detection and so on

Biodegradable film, suitable for the breathability of biodegradable films, such as starch biodegradation.

Extension Application

Paper, suitable for air permeability test of paper and plastic composite materials, such as cigarette packaging aluminum foil, Tetra Pak packaging sheet, instant noodles, paper cups, etc.

Hose, bottle, bag, sheet, suitable for all kinds of cosmetics hose, aluminum-plastic pipe, soft bottle sheet gas permeability test.

Paint film, suitable for all kinds of film coating, printing gas permeability test.

Vacuum packaging, It is suitable for electronic products which are easily corroded by gas oxidation, and loss of vacuum packaging manufacturing sheet, such as consumable sensors.

Standards

YBB 00082003, GB/T 1038, ASTM D1434, ISO 2556, ISO 15105-1, JIS K7126-A

Gas Permeability Tester using the pressure difference method, the pre-treated sample is placed and clamped between the upper and lower test chambers. First, the low-pressure chamber (lower chamber) is vacuumed, then pumping the vacuum for the whole system, when the specified vacuum degree is reached, close the lower chamber, fill the high pressure chamber (upper chamber) with test gas at a certain pressure, and ensure that a constant pressure difference is formed on both sides of the sample (adjustable). In this way, the gas will permeate from the high-pressure side to the low-pressure side under the action of the pressure difference gradient. Through the monitoring and treatment of the internal pressure of the low pressure side, the barrier parameters of the tested samples are obtained. Fully comply with GB1038, ASTM D1434 and other standards.

• Gas Permeability Tester with standard film correction function, sensor calibration function.
• Real-time monitoring the test status, all data curves of the test can be reproduced , convenient for the evaluation of testing progress after test.
• Public database system, convenient for data analysis.
• Gas permeability, solubility coefficient, and diffusion coefficient of the sample can be tested at the same time.
• The three test chambers are completely independent and can simultaneously test three identical or different specimens.
• Wide range, high precision temperature and humidity control, meet the test under various test conditions.
• Both proportional and fuzzy test process judgment models are provided.
• The test range can be expanded according to needed to meet the requirements of high transmittance testing.
• Data can be fitted at any temperature, easily obtain test results under extreme conditions.
• Support toxic gas and flammable and explosive gas test. (need restructure)
• The system is controlled by computer and the whole test process is completed automatically.
• Standard membranes are provided for rapid calibration to ensure the accuracy and versatility of test data.
• Gas permeation tester equipped with RS232 universal data interface, easy for data transmission.
